5.5 KW CNC ATC Spindle, 36000 Rpm

0 reviews • Write a review

from

$4,862.46

Ex Tax: $4,862.46

Stock: In Stock
Model: RDDLZ-SPINDLE-ATC5500
Weight: 1.00
SKU: RDDLZ-SPINDLE-ATC5500

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

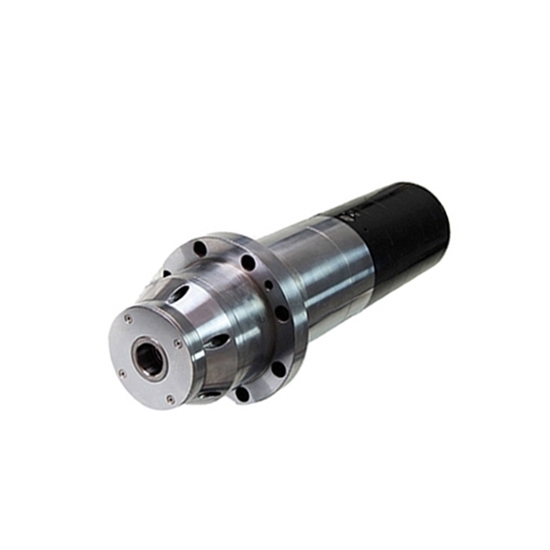

Reasonable price 5500W ATC spindle motor with 3 phase 380V AC, 36000 rpm speed, rated torque 3.98 Nm, water cooled of cooling method, suitable for milling, engraving, and all kinds of CNC router machine.

Features

Reasonable structure design, simple and compact configuration, easy to take apart.
High precision, inflexibility and efficiency, long operation life.
With high grade size, shape, position precision, and quality of the surface.
Enough abrasive resistance, vibration resistance, suitable size.
Work stable, low noise, enough fatigue strength.

Specifications

Model	RDDLZ-DC-1036A
Motor power	5500 W
Rated voltage	380V AC
Phase	Three phase
Max speed	36000 rpm
Max current	21 A
Max frequency	1200 Hz
Torque	3.98 N·M
Cone at the end of the shaft pulsates	≤0.001 mm
Tooling releasing air pressure	5.6-6.0 Kgf/cm²
Tooling change method	Automatic tool changer
Tooling pulling force	≥2000 N
Tooling back air pressure	5.6-6.0 Kgf/cm²
Tooling connection	ISO25 tool holder - ER20
Cooling	Water cooling
Encoder	Sine - cosine 1Vpp (choice)
Coolant pressure	≥2.5 Kgf/cm²
Approach switch	PNPON
Bearing lubrication method	Grease
Balance level	G1
Install method	Clamp
Vibration Value	≤0.8 mm/s
Weight	15 Kg

Note: The spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor. Otherwise, it will burn the spindle motor if the settings are not correct.

Dimension (Unit: mm)

Details

Tips: 3 Functions of ATC Spindle

Speed control

In order to meet the requirements of different processes, various workpiece materials and cutting tools, etc., the electric spindle must have a certain speed range and realize stepless speed change, so as to ensure the selection of reasonable cutting amount when processing raw materials, and obtain good cutting efficiency, Machining accuracy and surface quality.

Automatic tool clamping

The outstanding feature of electric spindle machining is the automatic tool change function. In order to ensure the continuous implementation of the machining process, the spindle system of the machining center must have automatic tool clamping compared with other spindle systems. The tool change function can ensure that the spindle uses tools suitable for the situation in different use environments, and that the electric spindle can better adapt to the characteristics of the environment.

Spindle positioning

That is, when the spindle stops, control the spindle to stop at a fixed position, which is a necessary function for automatic tool change. During automatic tool change, the cutting torque is usually transmitted through the face key of the tool holder, which requires the spindle to have the function of accurately positioning at a specific angle on the circumference. This specific electric spindle function is used in conjunction with the automatic tool change function.
