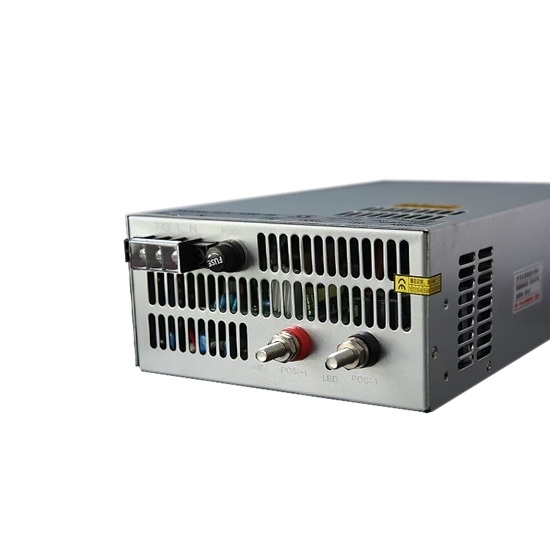

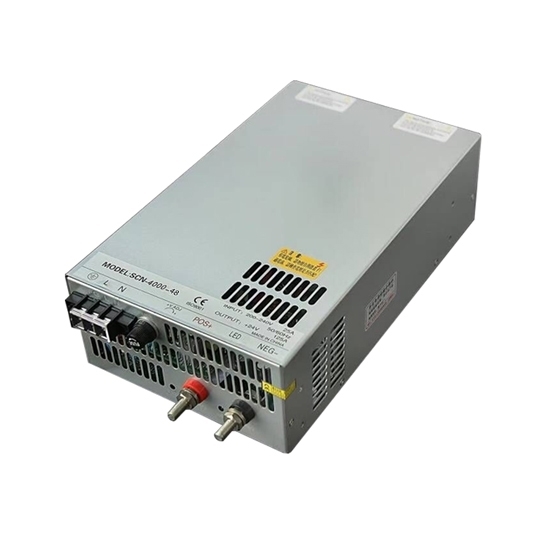

48V DC 4000W Switching Power Supply

0 reviews • Write a review

from

$646.46

Ex Tax: $646.46

Stock: In Stock
Model: RDDLZ-SMPS-4000-48
Weight: 1.00
SKU: RDDLZ-SMPS-4000-48

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Excellent magnetic core enameled wire, high temperature resistance
High voltage resistance, low loss, high capacity
Iron-silicon aluminum magnetic ring, lower working temperature
Highly efficient heat dissipation, low fan noise
4000W 48V DC switching power supply has high working efficiency, stable output
Exquisite appearance, small size, stable performance

Specification

Model		RDDLZ-MS-4000-48
Output	DC Voltage	48V
	Rated Current	80A
	Rated Power	4000W
	Ripple & Noise	240mVp-p
	Voltage Accuracy	±1%
	Voltage Adjustment Range	±10%
	Load Adjustment Rate	<±0.5%
	Line Adjustment Rate	<±0.5%
Input	Voltage Range	200V~240VAC
	Frequency Range	47~63Hz
	Efficiency (Typ.)	86%
	AC Current	220VAC, 8A
	Inrush Current	60A 230VAC
	Setup, Rise, Holdup Time	200ms, 50ms, 20ms: 230V AC
Protection	Overload	105~135% rated output power Protection type: Constant current limiting, recovers automatically after fault condition is removed.
Protection	Over temperature	RTH3: Fan is always running, ≥90°C output shut down.
Environment	Working Temperature	-10 ~ +50℃
	Working Humidity	20~90% RH
	Storage Temperature	-20~+85℃
	Storage Humidity	10~95% RH
Safety & EMC	Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
	Leakage Current	I/P-O/P， <6mA at 1.5kVAC； <1.5mA at 220VAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Others	Dimension	31219095mm (LWH)
Others	Weight	7.0kg

Details

SMPS Power Supply Applications

Power Tools
Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Puching Machine, Weeding Machine, Air Compressor, etc.
Offices Devices
Computer, Printer, LCD Monitor, Scanning Machine, etc.
Electrics & Household Appliance
TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge/Freezr, Coffemarker, etc.
Industrial Equipemnt
Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.

Tips: What is the difference between a switching power supply and a linear power supply?

What is a linear power supply?
Linear power supplies are designed for low noise and are generally considered quiet because there is no high frequency switching. They can be used wherever excellent regulation and/or low ripple is required, as well as low electromagnetic emissions and excellent transient response. Linear power supplies can only step down the input voltage to produce a lower output voltage. Linear power supplies typically use large transformers to step down the voltage from the AC line to a much lower AC voltage, and then use a series of rectification circuits and filtering processes to produce a very clean DC voltage. The downside is weight, size, and inefficiency.

What is a switching power supply?
Switching power supplies are designed for high efficiency and small size. They contain a switching regulator to efficiently convert electrical energy. Switching DC power supplies regulate the output voltage through a process called pulse width modulation (PWM). The PWM process generates some high-frequency noise, but enables switching power supplies with very high power efficiency and small size. With good design, switching power supplies can have excellent load and line regulation. They can step up or step down the input voltage to obtain the desired output voltage. Switching power supplies are more efficient than linear regulators because switching transistors dissipate very little power when used as switches. However, this switching creates noise, which can be reduced by filtering.

In today's electronics, switching power supplies are often preferred due to cost, size and efficiency. The decision to use a linear or switching power supply depends on the application and overall system requirements.
