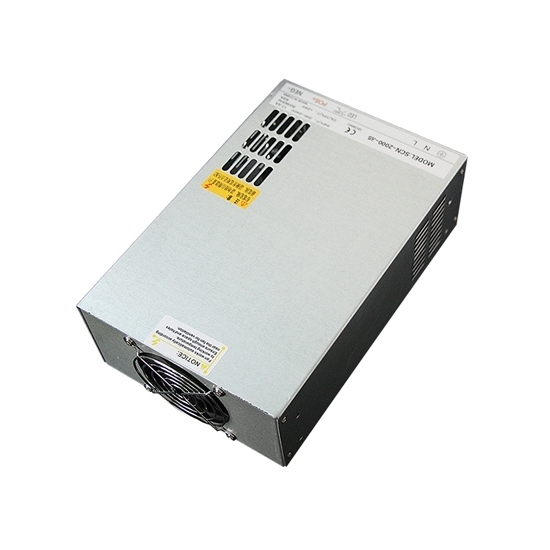

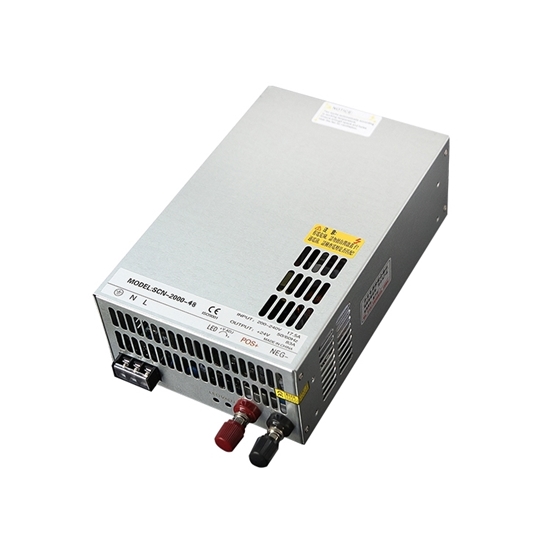

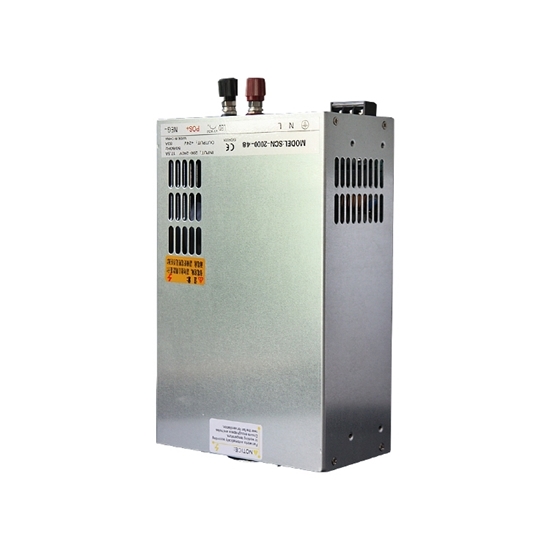

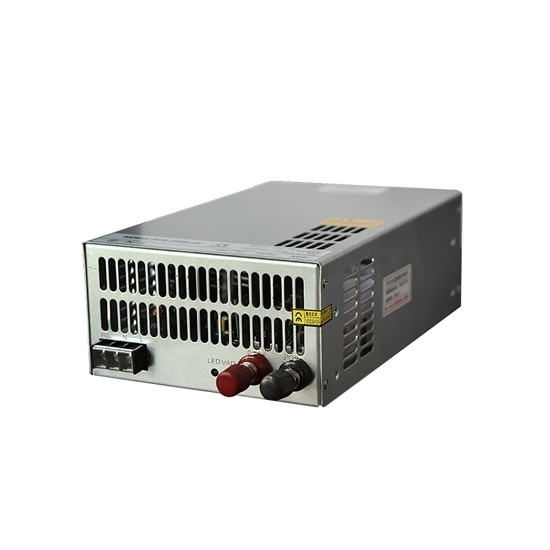

48V DC 2000W Switching Power Supply

0 reviews • Write a review

from

$350.15

Ex Tax: $350.15

Stock: In Stock
Model: RDDLZ-SMPS-2000-48
Weight: 1.00
SKU: RDDLZ-SMPS-2000-48

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

2000W 48V DC switching power supply has high working efficiency, stable output
Exquisite appearance, small size, stable performance
Excellent magnetic core enameled wire, high temperature resistance
Iron-silicon aluminum magnetic ring, lower working temperature
Highly efficient heat dissipation, low fan noise
High voltage resistance, low loss, high capacity

Specification

Model		RDDLZ-MS-2000-48
Output	DC Voltage	48V
	Rated Current	41.5A
	Rated Power	2000W
	Ripple & Noise	150mVp-p
	Voltage Accuracy	±1%
	Voltage Adjustment Range	±10%
	Load Adjustment Rate	<±0.5%
	Line Adjustment Rate	<±0.5%
Input	Voltage Range	176~264VAC; 254~370VDC
	Frequency Range	47~63Hz
	Efficiency (Typ.)	85.5%
	AC Current	220VAC, 8A
	Inrush Current	60A 230VAC
	Setup, Rise, Holdup Time	200ms, 50ms, 20ms: 230V AC
Protection	Overload	105~135% rated output power Protection type: Constant current limiting, recovers automatically after fault condition is removed.
Protection	Over temperature	RTH3: Fan is always running, ≥90°C output shut down.
Environment	Working Temperature	-10 ~ +50℃
	Working Humidity	20~90% RH
	Storage Temperature	-20~+85℃
	Storage Humidity	10~95% RH
Safety & EMC	Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
	Leakage Current	I/P-O/P， <6mA at 1.5kVAC； <1.5mA at 220VAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Others	Dimension	26016088mm (LWH)
Others	Weight	3.0kg

Details

SMPS Power Supply Application

Power Tools
Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Puching Machine, Weeding Machine, Air Compressor, etc.
Offices Devices
Computer, Printer, LCD Monitor, Scanning Machine, etc.
Electrics & Household Appliance
TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge/Freezr, Coffemarker, etc.
Industrial Equipemnt
Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.

Tips: Why do you need a switching power supply?

The power supply is determined according to the needs, involving factors such as power consumption (heat generation), withstand voltage and cost. 5v is too low for high-power occasions, or occasions requiring thousands of volts of high voltage, which will lead to excessive current and excessive power consumption of the device. For occasions requiring low power consumption, such as computer processors, the voltage is too high. So, even within an appliance, several voltages may be required. For example, the computer motherboard needs 12v, 5v, -5v, 3.3v, or even 1v and other voltages. It is not possible to fix a certain voltage.

In many occasions, the direct current needs to be transformed twice or even multiple times. For example, laptops, in order to be portable, generally use an external switching power supply to convert 220v mains into about 20v direct current, and then use them for laptops. And the computer needs to turn 20v into 12v, 5v, 3.3v and other necessary voltages. Because in power applications, electromagnetic transformation is basically required for voltage transformation. The principle of electromagnetic transformation requires that the magnetic field must be transformed (cutting magnetic lines of force), that is, the power supply must be transformed or pulsated to generate corresponding alternating or pulsating magnetic fields. However, the DC power supply is stable. Therefore, the DC pulse must be obtained through the continuous switching of the power tube, so as to realize the electro-magnetic-electric conversion. This process itself is a switching power supply. In short, DC-DC conversion must be realized by switching power supply.
