40 Kg·cm (4 Nm) RC Servo Motor, 6V/ 7.4V

0 reviews • Write a review

from

$259.69

Ex Tax: $259.69

Stock: In Stock
Model: RDDLZ-SERVO-RC40
Weight: 1.00
SKU: RDDLZ-SERVO-RC40

Available Options

Operating Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

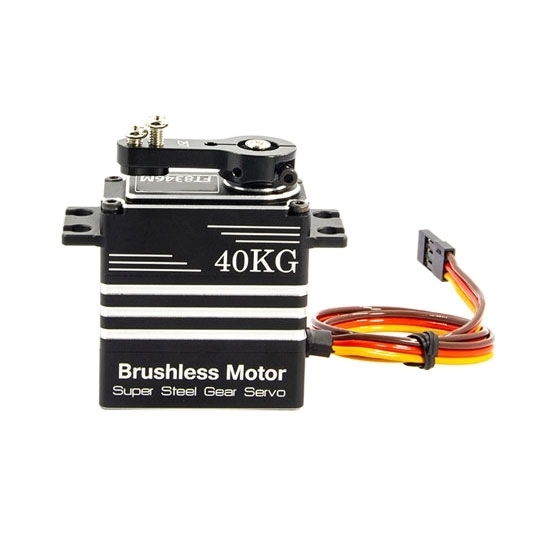

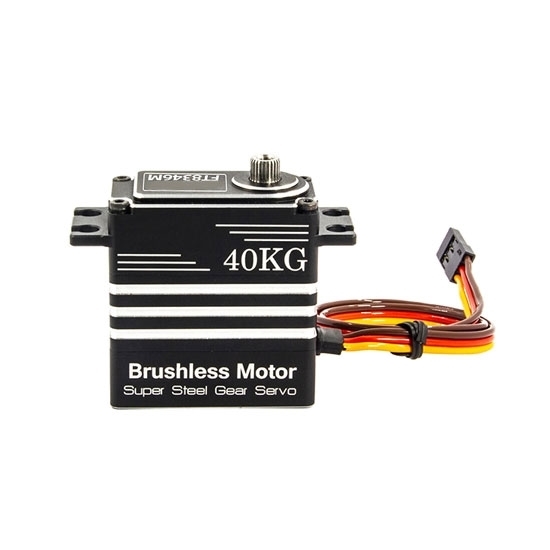

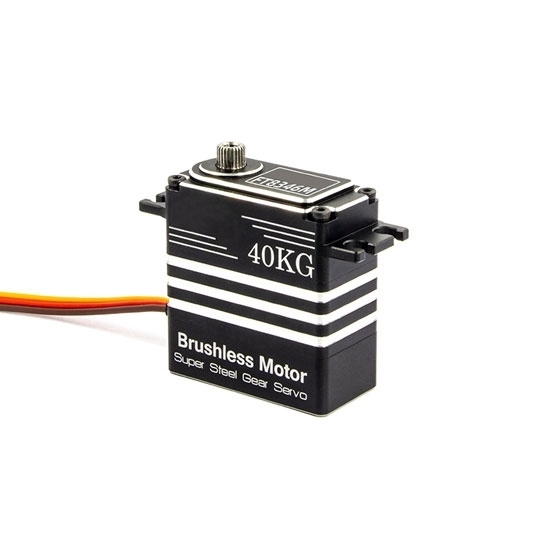

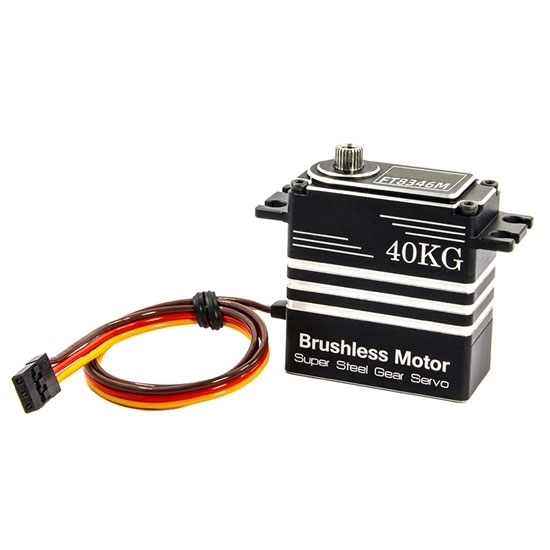

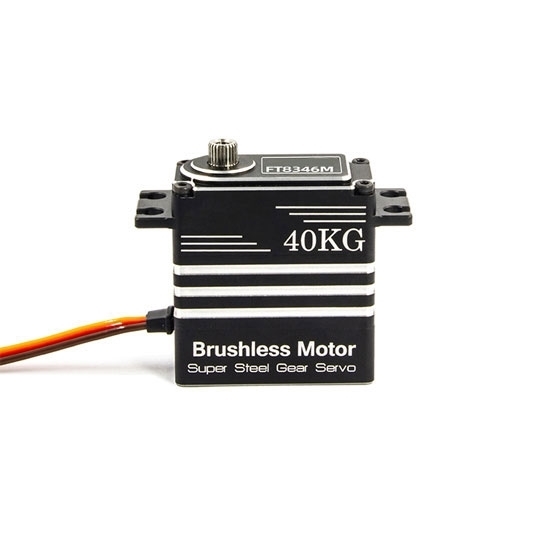

40 kg·cm RC brushless servo motor is a compact digital servo featuring a high-precision non-contact magnetic encoder for position sensing and double ball bearings for smooth operation. This 6V/ 7.4V remote control servo is commonly used for RC cars, model airplanes, submarines, and remote-controlled robots, due to its ability to offer precise steering, positioning, and actuation in dynamic environments.

Specification

Model	RDDLZ-FT8346M
Electrical Specification	Operating Voltage		6V	7.4V
	No Load Speed		0.274sec/60° (36.5rpm)	0.22sec/60° (45rpm)
	Running Current (No Load)		270mA	300mA
	Stall Torque (at Locked)		32.5 kg·cm (2.8 Nm)	40 kg·cm (3.5 Nm)
			452.13oz. in	556.46oz. in
	Stall Current (at Locked)		2.5A	3.1A
	Idle Current (at Stopped)		6mA	6mA
	Input Voltage		4V-8.4V
	Rated Torque		10.5kg·cm	13.5kg·cm
	Rated Current		1100mA	1450mA
Mechanical Specification	Size		54.452043.05mm
	Limit Angle		No Limit
	Case Material		Aluminum
	Gear Material		Steel Gear
	Bearing Type		Ball Bearing
	Angle Sensor	Type	12 Bit Magnetic Encoded
		Angle	360°
		Life	No Limit
	Connector & Cable	Type	JR
		Material	PVC
		Length	30cm
		Pin Definition	1: Signal; 2: Vcc; 3: GND
	Weight		91.5g±1g
	Horn Type		25T/ 5.9mm
	Gear Ratio		1/378
	Back Lash		≤0.5°
	Rocker Phantom		0°
	Rocker Screw		M3*6
	Motor		Coreless Motor
	Storage Temperature Range		-30℃ ~ 80℃
	Operating Temperature Range		-20℃ ~ 60℃
	Temperature Range		25℃ ± 5 ℃
	Humidity Range		65% ± 10%
	Certificate		EMC, ROHS
Control Specification	Command Signal		Pulse Width Modification (PWM)
	Control System Type		Digital Comparator
	Operating Travel		360° （at 500 to 2500 μsec)
	Left & Right Travelling Angle deviation		≤1°
	Centering Deviation		≤1°
	Neutral Position		1500 μsec
	Dead Band Width		≤4 μsec
	Rotating Direction		Counterclockwise (at 1500 to 2000 μsec)
	Pulse Width Range		500 to 2500 μsec
	Electronic Protection		Stall 3 sec
	Temperature Protection		＞70℃
Reliability Testing	Life Test		＞100000 Times
	Motor Noises		45 ± 5dB
	Servo Noises		60 ± 5dB
	Waterproof Performance		No

Dimensions (Unit: mm)

Details

Tips: Types of micro RC servo motor

According different working signal, the micro radio control servo motors are divided into Digital servo motors and analog servo motors. Digital servo is a digital transmission, which has strong anti-interference ability and can facilitate two-way communication. It is flexible, reliable and compact. The analog servo is the existing PWM analog transmission, that is, the change of pulse width directly represents the control vector and is easily disturbed.

In addition, an ordinary volt radio control servo motor has an operating voltage of 4.8-6V, high volt remote control servo motor has an operating voltage of 6-12V. The advantages of an HV micro servo motor are less heat generation, more sensitive response, and greater torque.
