The intelligent 3 phase variac transformer is sold at low price, the input and output voltage is 380V, the voltage is adjusted from 0 to high when used, and the output voltage is 0-430V or 0-500V.

Specification

Model: RDDLZ-VVR-TH40
Rated Power: 40 kVA
Input Voltage: 380V
Output Voltage: 0~430V, 0~500V
Frequency: 50/60 Hz
Rated Full Offset Current: 52A
Insulation Resistance: ≥5 MΩ
Pressure Resistance: 2000 V/1min
Weight: 160 kg
Dimension: 345mm x 450mm x 1100mm
Certificate: CE

Wiring method

Installation and use of three-phase variac transformer should be noted: the wiring must be firmly pressed, there can be no loose.

Three-phase variac transformer is a three-phase four-wire system, the input side should be connected to the zero line, when using the regulator to adjust the voltage should be adjusted from 0V to high voltage, the output voltage is different corresponding to the load power is different.

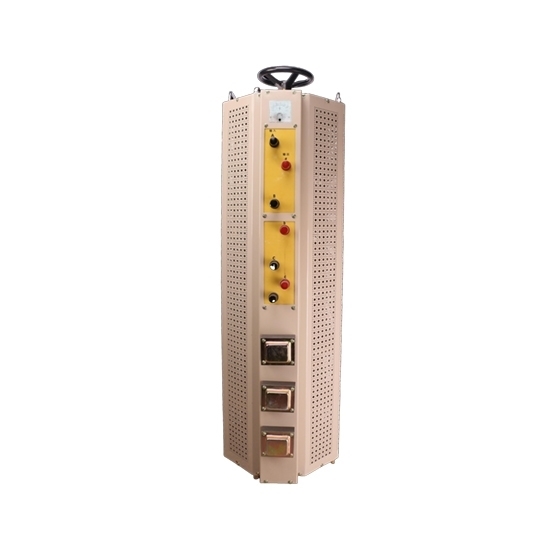

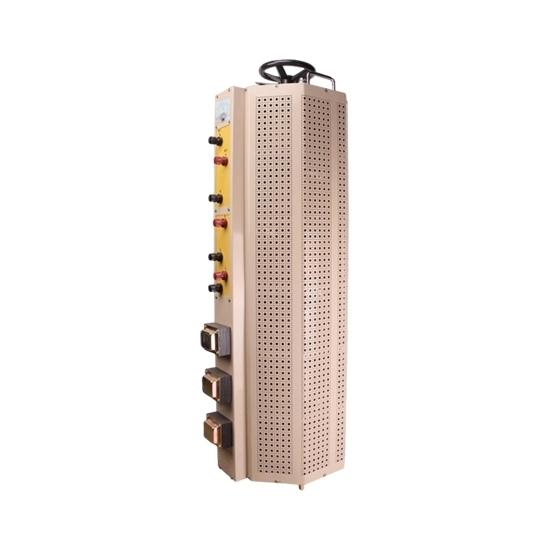

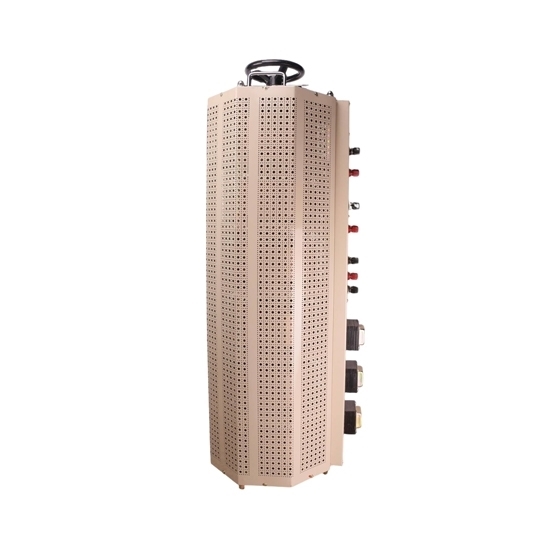

3 Phase 40 kVA Variac Voltage Regulator Details

Tips: Classification of voltage regulators

Voltage regulators are divided into five types: auto-coupling regulators, isolation regulators, oil-immersed induction regulators, column-type electric regulators and thyristor regulators. The working mode of the pressure regulator is divided into manual pressure regulation and electric pressure regulation.
