4" Pneumatic Ball Valve, 2 Way/ 3 Way

0 reviews • Write a review

from

$579.99

Ex Tax: $579.99

Stock: In Stock
Model: RDDLZ-PBV-100A
Weight: 1.00
SKU: RDDLZ-PBV-100A

Available Options

Port

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

4 inch industrial pneumatic actuated ball valve requires compressed air to work. The seat material is made from PTFE plastic that has good sealing performance. Air powered ball valve has such advantages as small fluid resistance, simple structure, small in size and light in weight. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air fluid control.

Specification

Ball Valve	Model	RDDLZ-Q611F-16P-DN100	RDDLZ-Q641F-16P-DN100	RDDLZ-Q691X-10U-DN100	RDDLZ-Q644F-16P-DN100	RDDLZ-Q645F-16P-DN100

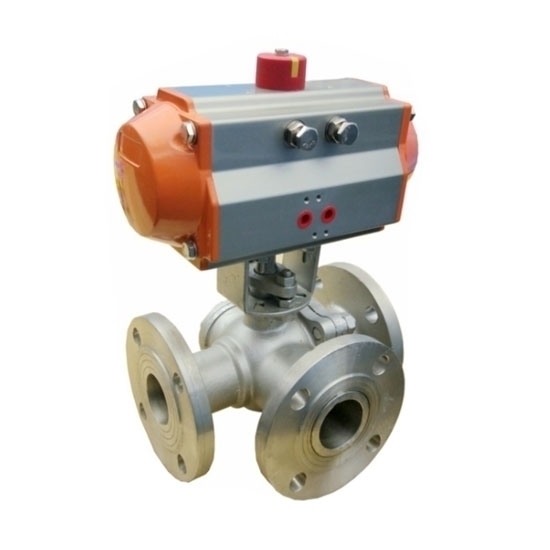

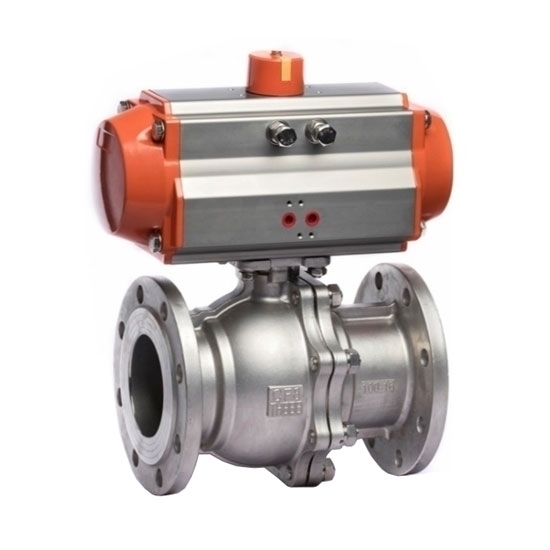

	Ball Valve Type (Optional)	2 Way Threaded Type	2 Way Flanged Type	2 Way PVC True Union Type	3 Way Flanged Type, L Port	3 Way Flanged Type, T Port
	Port Size	4 inch (DN100, 100mm)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
	Seat Material	Plastic (PTFE)
	Body Material	Stainless Steel (SS 304)	Stainless Steel (SS 304)	PVC	Stainless Steel (SS 304)	Stainless Steel (SS 304)
Pneumatic Actuator	Model	RDDLZ-AT125D	RDDLZ-AT125D	RDDLZ-AT100D	RDDLZ-AT145D	RDDLZ-AT145D
	Bore Size	125mm	125mm	100mm	145mm	145mm
	Air Supply Port	1/4 inch	1/4 inch	1/4 inch	1/4 inch	1/4 inch
	Power Source	Compressed Air
	Actuator Type	Double Acting
	Air Pressure	0.3 ~ 0.8MPa
	Actuator Body Material	Aluminum Alloy

Details

Body Dimension (Unit: mm)

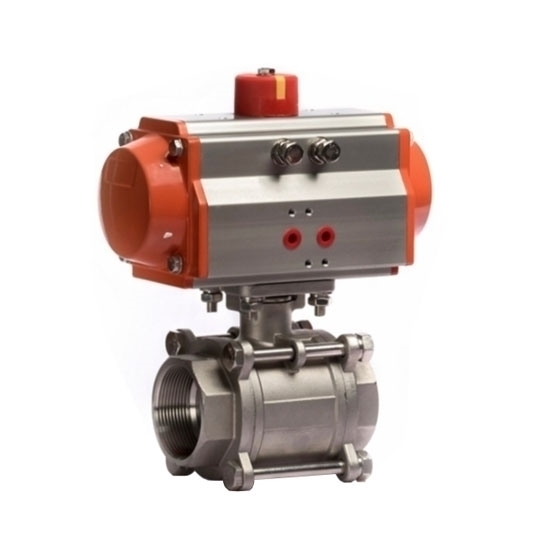

2 way/ 3 way, stainless steel, threaded type

φd	L	A	H
98	266	349	315

2 way/ 3 way stainless steel, flanged type

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
100	280	20	2	215	155	180	323	344	349	418	320	8-φ18

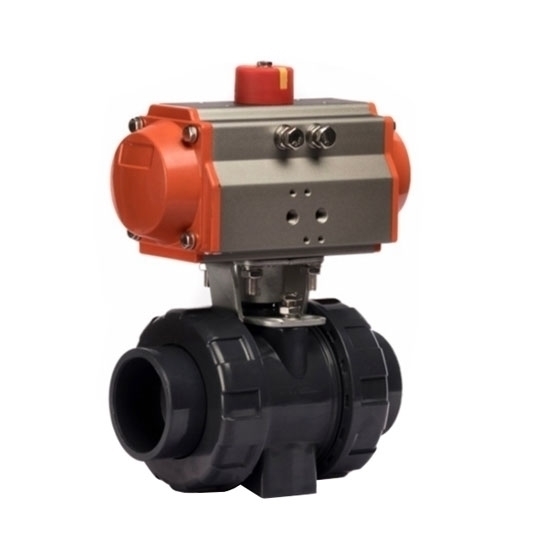

2 way, PVC true union type

DN	D	D1	d	L1	A	H
100	110	146	99	45	268	387

Pneumatic Actuator Dimension (Unit: mm)

RDDLZ-AT100D

Q	A	B	C	D	E	F	G	H	I
Φ70/Φ102mm	268mm	120mm	55mm	65mm	157mm	125mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	20mm	40.5mm	4mm	4mm	12mm	24mm	16mm	32mm

RDDLZ-AT125D

Q	A	B	C	D	E	F	G	H	I
Φ70/Φ102mm	349mm	147mm	67mm	80mm	189mm	159mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	30mm	56.5mm	4mm	4mm	12mm	24mm	16mm	32mm

RDDLZ-AT145D

Q	A	B	C	D	E	F	G	H	I
Φ102/Φ125mm	418mm	167mm	80mm	87mm	218mm	178mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	30mm	62mm	4mm	4mm	12mm	24mm	16mm	32mm

Three Way Ball Valve Flow Pattern

T Type:

L Type:

Tips: How to maintain a pneumatic actuated valve?

The pneumatic actuated ball valve should be placed in a ventilated and dry room, so as not to enter the interior and cause debris and wear.
Check and clean the air ball valve regularly, and apply anti-rust oil after cleaning.
After the pneumatic ball valve is installed, regularly check whether it is working properly.
In order to ensure the normal operation of the pneumatic ball valve, lubricating oil should be injected into the ball valve regularly.
