300mm Linear Displacement Sensor For Blow Molding Machine

0 reviews • Write a review

from

$929.86

Ex Tax: $929.86

Stock: In Stock
Model: RDDLZ-MSD-0300
Weight: 1.00
SKU: RDDLZ-MSD-0300

Available Options

Short Description

Output Signal

Thread

Electrical Connection

Protection Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

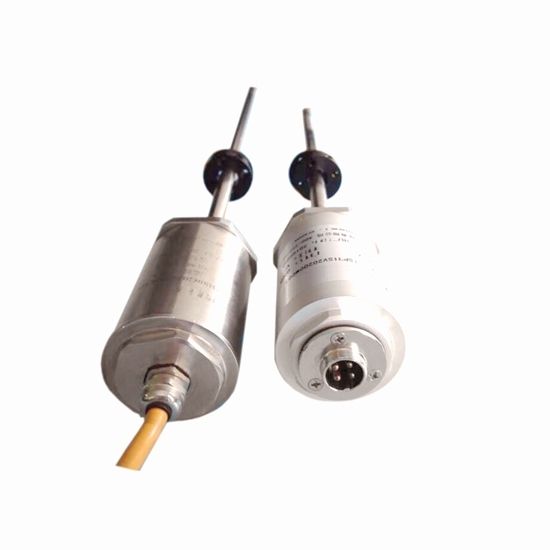

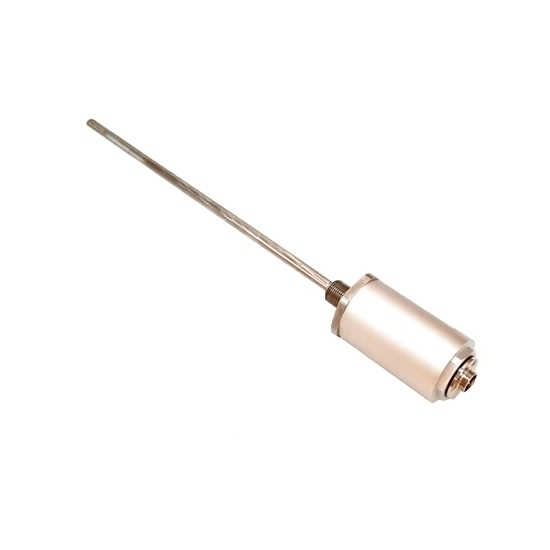

Magnetostrictive displacement sensor with measuring range 300mm is used for the liquid level preset and feedback, such as the liquid level of blow molding machine hydro-cylinder. Magnetostrictive sensors also can be used in most industrial automation systems.

Specification:

Basics	Model	RDDLZ-MSD-0300
	Measuring range	0~300 mm
	Shipping weight	2 kg
	Length	499.3 mm
	Diameter	51 mm
Technical parameters	Linearity	≤0.05%FS
	Repeatability	≤0.005%FS
	Resolution ratio	≤0.001%FS
	Hysteresis	≤0.001%FS
	Working Voltage	24VDC
	Working current	Voltage output /digital output type≤16mA; Current output type≤35mA
	Protection type *	Normal type, Explosion-proof type, Anti-corrosion type
	Output signal *	0~5V, 0~10V, 4~20mA, RS485, SSI gray code signal
	Measuring rod material	0Cr18Ni9 (304), or 316L stainless steel (customized)
	Measuring rod diameter	Ф10mm
	Electronic bin material	1Cr18Ni9 (304)
		304 and PTFE casing outside (Anti-corrosion type, customized)
		1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, customized)
	Connecting screw thread *	M18×1.5, M20×1.5, 3/4-16UNF
	Electrical connection *	PVC shielded cable, circular connector (not applicable to explosion-proof type)
	Measuring rod pressure	40MPa, 70MPa (Explosion-proof type)
	Temperature	T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
	Buffer area	Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
	Vibration	100g, IEC standards 68-2-715g/ 10-2000Hz, IEC standards 68-2-6
	Protection Class	IP67
	Explosion-proof level	Explosion-proof type: EXd II BT5

Installation diagram (unit: mm):
1. PG7 connection

2. Explosion-proof connection

3. External installation

Tips: Parallelism and angle of magnetostrictive sensor
When installing the magnetostrictive linear displacement sensor, the centering should be very good. However, the error of ±0.5mm is allowed for the parallelism while that of ±12° is allowed for the angle. In case of large error of parallelism and angle, the display values will fluctuate. Then, the parallelism and angle should be adjusted.
