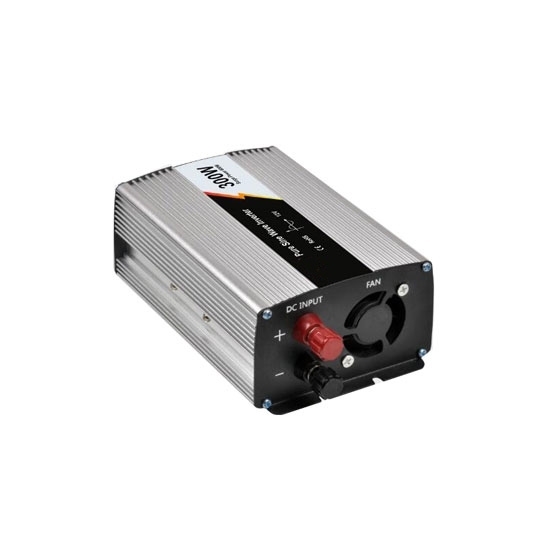

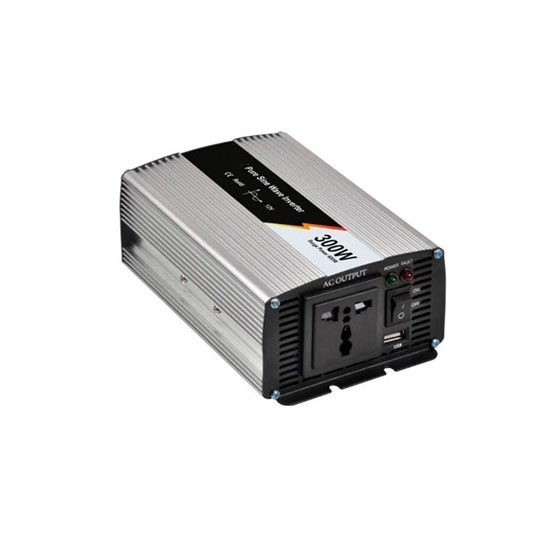

300 Watt Pure Sine Wave Power Inverter, 12V DC To 110V AC

0 reviews • Write a review

from

$115.62

Ex Tax: $115.62

Stock: In Stock
Model: RDDLZ-PI-300W
Weight: 1.00
SKU: RDDLZ-PI-300W

Available Options

Short Description

Remote Control

Input DC Voltage (V)

Input Battery Type

Output AC Voltage (V)

Output Frequency

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price 300W pure sine wave power inverter for sales, converting 12V, 24V or 48V DC battery power to 110/120/220/240V AC power, best solution for charging your electronics or devices on the vacations, work trips or camping.

Note: 300W pure sine wave inverter can't power a small refrigerator.

Specification

Model	RDDLZ-PSWI-300
Output Power	300 Watt
Peak Power	600 Watt
Phase	1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
Input Voltage *	DC 12V	DC 24V	DC 48V	DC 12V	DC 24V	DC 48V
Input DC Voltage Range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Output Voltage *	100V AC or 110V AC or 120V AC ±5%			220V AC or 230V AC or 240V AC ±5%
No-load Current (less-than)	0.3A	0.2A	0.1A	0.3A	0.2A	0.1A
Output Frequency *	50Hz±0.5Hz or 60Hz±0.5Hz
Output Wave	Pure sine wave
Waveform Distortion	THD＜3% (linear load)
USB Port	5V 1A
Outlet Type	Universal outlet
Max. Working Efficiency	90%
Low Voltage Alarm	10.5V±0.5V	21V±0.5V	42V±1V	10.5V±0.5V	21V±0.5V	42V±1V
Low Voltage Shutdown	10V±0.5V	20V±0.5V	40V±1.5V	10V±0.5V	20V±0.5V	40V±1.5V
Low Voltage Recovery	13V±0.5V	24V±0.5V	48V±1V	13V±0.5V	24V±0.5V	48V±1V
Over Voltage Shutdown	15.5V±0.5V	31V±0.5V	61V±1V	15.5V±0.5V	31V±0.5V	61V±1V
Over Voltage Recovery	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V
Protection	Low voltage, Over voltage, Over load, Over temperature, Short circuit, Input polarity reverse connection
Cooling Way	Intelligent air cooling
Remote Control *	Wired control (2m) or Wireless control (30m)
Operating Temperature	-10℃~ +50℃
Storage Temperature	-30℃~ +70℃
Humidity	≤90%, non-condensing
Dimensions (WHD)	186x106x63mm
Package Size (WHD)	235x143.5x82mm
Net./Gross Weight	0.7kg/1.0kg
Certificate	CE, RoHS
Warranty	12 Months

Features

300 Watt continuous power and 600 Watt peak power
Pure sine wave inverter, capable of producing clean & stable electricity
Soft-start technology
USB charging port for powering your phone, laptop, etc.
Aluminum alloy casing with good heat dissipation
Multiple protections against under and over voltage, over load, over temperature, short circuit and input polarity reverse connection
ON/OFF switch design, easy to use
Intelligent cooling fan, long working life

Details

Wiring Diagram

Note: The wiring of 48V inverter is similar to the 24V inverter, and the batteries are connected in series.

Protection Functions & Applications

Reverse Polarity Protection: Auto protection when input positive and negative polarities are reversely connected – The fuse blown out.
Short Circuit Protection: Automatically self-protect when short circuit occurs – Red LED light ON.
Low Voltage Protection: Automatically protect when in low voltage – Alarm first, the voltage continuously reduces, the red light is on and the inverter shuts down.
Over Voltage Protection: Automatically protect when in high voltage – Red LED light is on, and the inverter automatically shuts down.
Over Temperature Protection: Automatically self-protect when at high temperature – Alarm first, the temperature continuously rises, the red light is on and the inverter shuts down.
Overload Protection: Automatic self-protection when there is overload – Red LED light is on and the inverter automatically shuts down.

Tips: Why can't a 300W car inverter power a desktop?

It is not recommended that you take power from the cigarette lighter to charge more than 120W electrical appliances. The cigarette lighter can only withstand about 10A current and about 100W power, because there is about 2-meter wire connected the battery to cigarette lighter, and the negative polarity of battery is connected to the car shell, causing too much loss of voltage and current. The inverter will not start up when it detects that there is no enough voltage and current to maintain its work. The inverter's best operating voltage is 11-13V.

Possible solutions:

Change thicker wires from the positive and negative polarity of battery to the cigarette lighter.
Connect the original battery connection clip line of the inverter to the positive and negative poles of the car battery, thus electrical appliances within 300W can be started.
