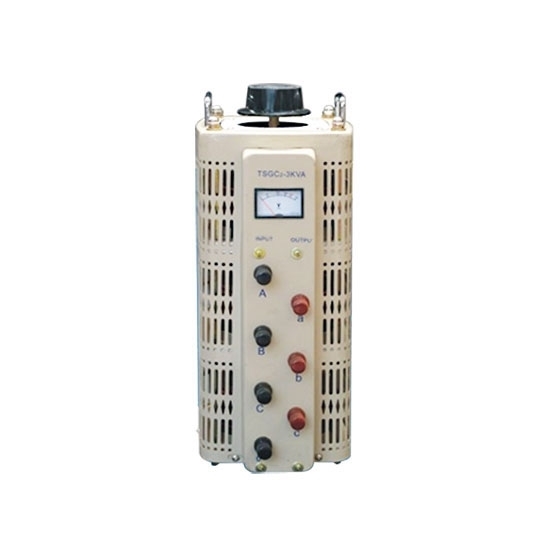

3 KVA 3 Phase Variac Transformer

0 reviews • Write a review

from

$948.59

Ex Tax: $948.59

Stock: In Stock
Model: RDDLZ-VVR-TH3
Weight: 1.00
SKU: RDDLZ-VVR-TH3

Available Options

Short Description

Output Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 kVA variable transformer input 3-phase 380V AC, voltage output range 0~430V or 0~500V, with clear voltage output meter and accurate metal pressure gauge, painted shell, durable without fading.

Specification

Model: RDDLZ-VVR-TH3
Rated Power: 3 kVA
Input Voltage: 380V
Output Voltage: 0~430V, 0~500V
Frequency: 50/60 Hz
Rated Full Offset Current: 4A
Insulation Resistance: ≥5 MΩ
Pressure Resistance: 2000 V/1min
Weight: 19 kg
Dimension: 240mm x 170mm x 430mm
Certificate: CE

Wiring method

Installation and use of three-phase variac transformer should be noted: the wiring must be firmly pressed, there can be no loose.

Three-phase variac transformer is a three-phase four-wire system, the input side should be connected to the zero line, when using the regulator to adjust the voltage should be adjusted from 0V to high voltage, the output voltage is different corresponding to the load power is different.

3 Phase Variac Transformer Details

Tips for using a three-phase variac transformer

The load power of the voltage regulator is not fixed, the lower the output voltage regulation, the smaller the load power, please note that the equipment power must be within the load power of the voltage regulator. Specific conversion method: voltage regulator load power = output voltage X rated current.
