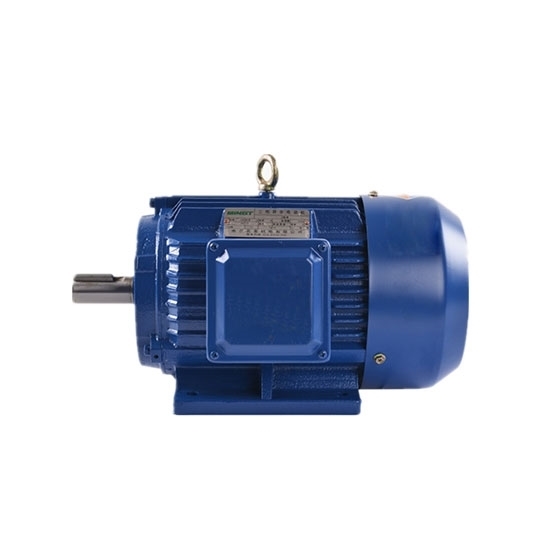

3 Hp (2.2kW) 3 Phase 4 Pole AC Induction Motor

0 reviews • Write a review

from

$589.57

Ex Tax: $589.57

Stock: In Stock
Model: RDDLZ-IM-22004P
Weight: 1.00
SKU: RDDLZ-IM-22004P

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

With the remarkable features of high efficiency, low noise, ease in operation and low price, 3 hp (2.2kW) 3-phase 4-pole AC induction motor or asynchronous motor can be widely used in various kinds of general purpose machineries like fans, pumps, compressors, machine tools, transportation and so on.

3hp Induction Motor Specification

Basics	Model	RDDLZ-Y2-100L1-4
	Design Standard	IEC
	Weight	30kg
	Frame Type	100L
	Mounting	Horizontal Foot Mounting (B3)
	Wiring Method	Output≤4hp (3kW), Y connection Output≥5.5hp (4kW), Delta connection
	Degree of protection	IP54/IP55
	Insulation Class	Class F
	Cooling	TEFC (compliance to IC 411 code of IEC 60034-6)
Technical Parameters	Nominal Output	3.0hp or 2.2kW
	Pole Number	4-pole
	Nominal Speed	1420rpm
	Frequency	50Hz
	Nominal Voltage	380V (Y connection by default) / 220V (Change Y to Δ connection on your own)
	Nominal Current (full load)	5.09A/8.82A
	Efficiency	81.0%
	Power Factor( cosφ)	0.81
	Nominal Torque (Tn)	14.8Nm
	Locked Rotor Torque/Nominal Torque (TST/Tn)	2.3
	Maximum Torque/Nominal Torque (Tmax/Tn)	2.3
	Locked Rotor Current/Nominal Current (IST/In)	7.0
	Noise Level	64dB/(A)
Environment	Ambient Temperature	-15℃+40℃
	Altitude	Less than 1000m above sea level

Three-phase Induction Motor Dimensions

Frame Type	Mounting Dimensions (mm)										Overall Dimensions
Frame Type	A	A/2	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
100L	160	80	140	63	28	60	8	24	100	12	205	215	180	270	385

Wiring Diagrams (Three-phase squirrel-cage induction motor)

Details

Tips: How to change the rotation direction of three-phase induction motor?
As shown from the working principle of induction motor, the rotation direction of motor rotor is determined by the direction of rotor affected by the electromagnetic torque. However, the direction of electromagnetic torque depends on the direction of stator rotating magnetic field. That is to say the rotation direction of rotor is the same as the one of stator rotating magnetic field. Nevertheless, the direction of the rotating magnetic field depends on the phase sequence of three-phase power supply that has access to the three-phase windings of stator. The direction of rotating magnetic field also changes with the one of phase sequence. Therefore, simply changing the phase sequence of three-phase power supply that has access to the three-phase windings of stator can change the rotation direction of motor. This simple method is realized by connecting any two-phase power wires of three-phase power supple wires into motor.
