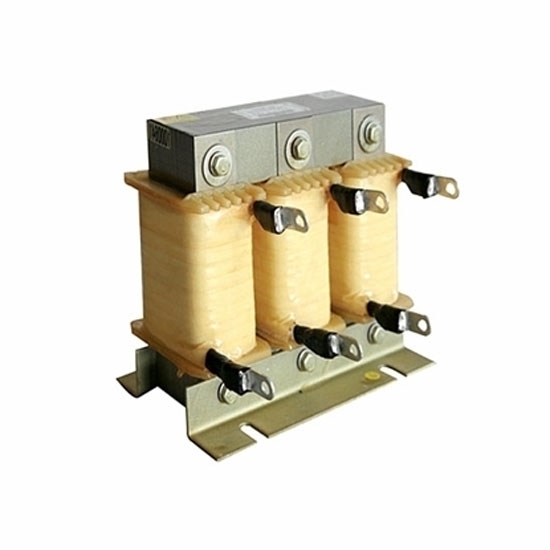

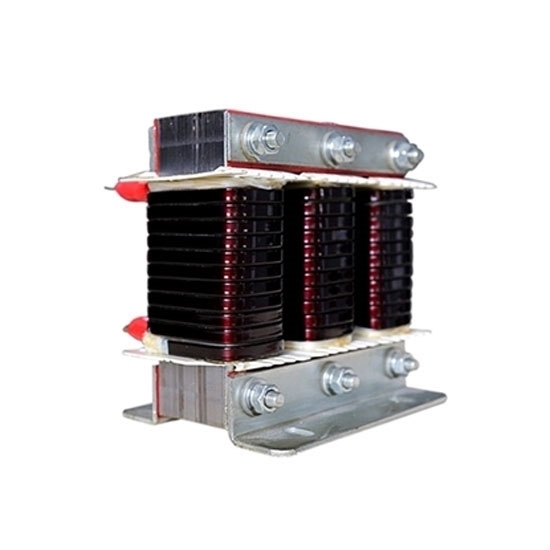

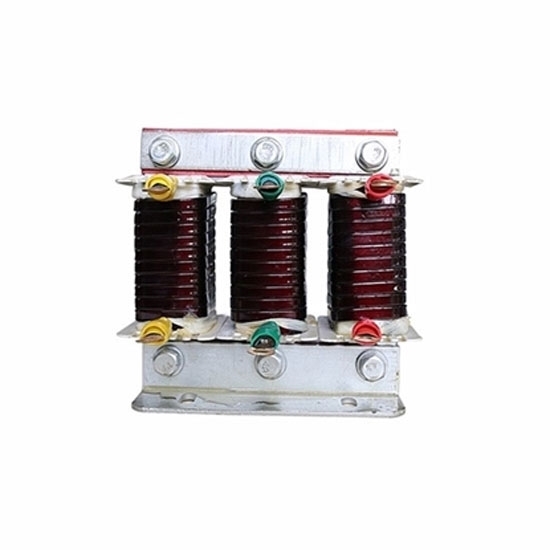

3 Hp (2.2 KW) AC Line Reactor, 3 Phase Output

0 reviews • Write a review

from

$244.54

Ex Tax: $244.54

Stock: In Stock
Model: RDDLZ-OLR-2d2
Weight: 1.00
SKU: RDDLZ-OLR-2d2

Available Options

Material

Output AC Voltage (V)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 hp 3-phase line reactor are available for 220V, 380V, 400V, 410V,440V, 460V or 480V, with rate current 7A. The working frequency is 50/60Hz, reasonable price, long service life and high reliablity.

3-Phase Line Output Reactor Specifications

Basic	Model	RDDLZ-OCR-0007-1M00-0.4SC
	Recommended VFD Model	GK3000-4T0022G (3 hp three phase VFD)
	Phase	3 Phase
	Power	3 hp (2.2 kW)
	Weight	2.6 kg
Technical Parameters	Work Valtage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50Hz/60 Hz
	Rated Current	7 A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	1 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altittude	≤2000m

3 hp 3-Phase Output Line Reactor Mounting Dimension

Dimension(±5mm)
L	D	W	W1	H	A×B
110	90	95	70	130	6×11

3-Phase Output Line Reactor Circuit Diagram

Tips: How to select a line reactor?

The line reactor is the general name of the inductor and the reactance device. As inductor appeared earlier on the history of electrical equipment and was called line reactor, capacitor is also called reactance device. Common line reactors include the incoming line reactor, which is used to restrict the sudden voltage change and current impact caused by overvoltage. It can also smooth the spike pulse contained in the power supply voltage, thus improving power quality. Single phase DC line reactor is mainly used between the DC link and contravariant link in the inverter system, its main function is to limit the AC component superimposed on the DC current to a specified value. Main function of three-phase output line reactor is to compensate the influence of long line distributed capacitance, restrict the output of harmonic current and improve output high frequency impedance, thus protecting the inverter.

Common line reactors include the core-type line reactor. Such a line reactor has small size and low magnetic flux leakage, loss. It can be used in the high-voltage board. However, it also has many disadvantages, such as large noise, easy magnetic saturation (which may lead to burn out of coil), poor harmonic suppression and poor short circuit current resistant. Dry-type air core reactor has strong flow capacity, simple but tough mechanical structure, it can be used outside. However, it has disadvantages of high active power loss and large electromagnetic interference to surrounding electrical equipment . Moreover, half core-type reactor and magnetic shielding reactor are also common. Therefore, the converter has many types and functions, proper line reactors shall be selected by demands in actual power systems.
