3/4" Air Control Valve, 2 Way, 2 Position

0 reviews • Write a review

from

$97.79

Ex Tax: $97.79

Stock: In Stock
Model: RDDLZ-ACV-20
Weight: 1.00
SKU: RDDLZ-ACV-20

Available Options

Short Description

Type

Sealing Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This control valve cannot be used for drinking water.

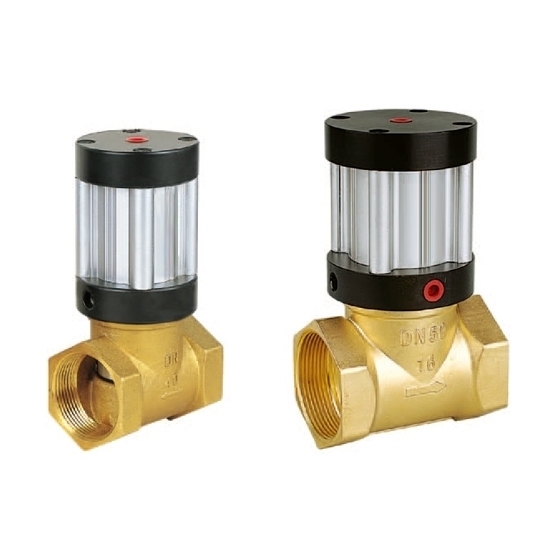

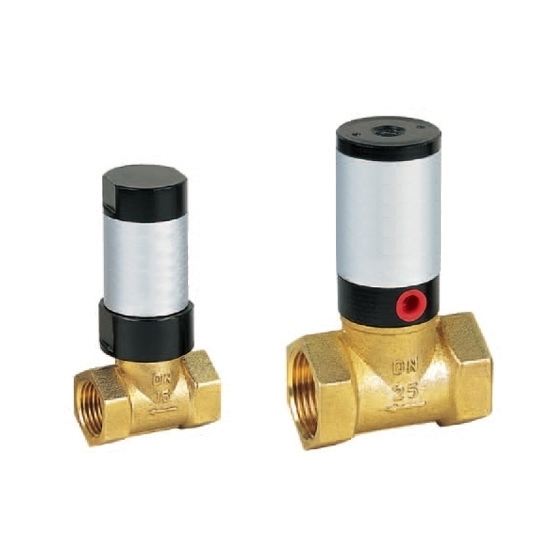

Good price 2 way air control valve with pneumatic actuator, 2 position, 3/4 inch (DN20), single acting or double acting type, mainly used to control the fluid flow by opening or closing the pipe.

Specifications

Model: RDDLZ-Q22HD-20
Nominal Diameter: DN20
Connecting Thread: ZG3/4"
Actuator: Pneumatic Actuator
Type: 2 Way, 2 Position
Product Form: Normally Closed
Working Pressure: 0~1.0Mpa
Valve Body Material: Brass
Sealing Material: VITON/PTFE
Medium Temperature: VITON: -5~150℃, PTFE: -10~180℃
Flow Coefficient KV Value: 10
Weight: 0.481kg
Working Medium: Air, Water, Oil, Liquefied Petroleum Gas, and Fluid with Light Dynamic Viscosity

Dimensions (Unit: mm)

A	B	C	D	H	M
55	32	37	ZG3/4"	107	G1/8"

Applications

The air control valve has low starting pressure, high closing sensitivity, good sealing performance, and arbitrary import and export directions, widely used in food, medicine, industry, washing, petrochemical, metallurgy, spraying, vehicles and other mechanical equipment.

Tips: Why use an air-controlled valve?

Fast response times: Air control valves are known for their fast response times, which make them ideal for applications where quick, precise control is required.
Precision: Air control valves offer precise control over the flow of fluid, making them ideal for applications that require high accuracy.
Reliability: Air control valves are typically very reliable and can operate for extended periods of time without requiring maintenance.
Safety: Air-controlled valves can be operated remotely, which can help ensure the safety of personnel in hazardous environments.
Versatility: Air control valves can be used to control the flow of a wide range of fluids, including liquids and gases.
