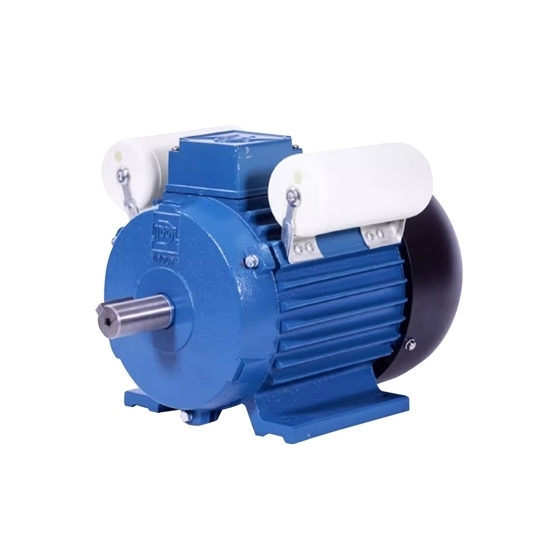

3/4 Hp (0.55kW) 220V Single Phase AC Induction Motor

0 reviews • Write a review

from

$323.23

Ex Tax: $323.23

Stock: In Stock
Model: RDDLZ-SPM-550
Weight: 1.00
SKU: RDDLZ-SPM-550

Available Options

Short Description

Voltage (V)

Speed

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price 0.75 hp single phase induction motor with two ac capacitors is an induction motor. 1500rpm/3000rpm speed and 220V/110V/230V/240V voltage for selection. 550W single phase asynchronous motor can provide zero starting torque when stationary, high efficiency for homes, offices, stores and smalll non-industrial companies.

Specifications

Model	RDDLZ-YL712-2	RDDLZ-YL801-4
Rated Output	0.55kW (0.75hp)
Efficiency	70%	68%
Power Factor	0.92 COSφ
Rated Speed	2800rpm	1400rpm
Rated Current	3.71A	2.69A
Pole	2 Pole	4 Pole
Voltage	220V AC 50Hz (Default), other customizations can be customized.
Tmax/Tn	1.8 times
Ts/Tn	1.8 times
ls/ln	21 times	12 times

Dimension (Unit: mm)

Frame Size	Mounting Dimension									Overall Dimension
Frame Size	A	B	C	D	E	F	G	H	K	AB	AC	AD	AE	HD	L
71	112	90	45	14	30	5	11	71	7	145	145	140	105	180	255
80	125	100	50	19	40	6	15.5	80	10	160	165	150	120	200	295

Details

Tips: Applications Of Single Phase Induction Motors

Single phase induction motors are widely used. Not only is it used in large quantities in production, but it is also closely related to people's daily life. With the improvement of people's living standards, the consumption of single phase motors for household appliances is increasing.

Single phase motors are used in the production of micro water pumps, refiners, threshers, grinders, woodworking machinery, medical equipment, etc. In terms of life, there are electric fans, hairdryers, exhaust fans, washing machines, refrigerators, etc. There are many types, but the power is relatively small.
