2A 30V 60W Variable DC Power Supply

0 reviews • Write a review

from

$245.04

Ex Tax: $245.04

Stock: In Stock
Model: RDDLZ-DCPS-02
Weight: 1.00
SKU: RDDLZ-DCPS-02

Available Options

Input Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This variable DC power supply has 4 digital readouts, 0-30V output range, 0-2A variable, which can more precisely to control the current and voltage, and it can be easy to dial the exact voltage you want, to get a accurate result and make your project's safe.

Specifications

Model	RDDLZ-K302D

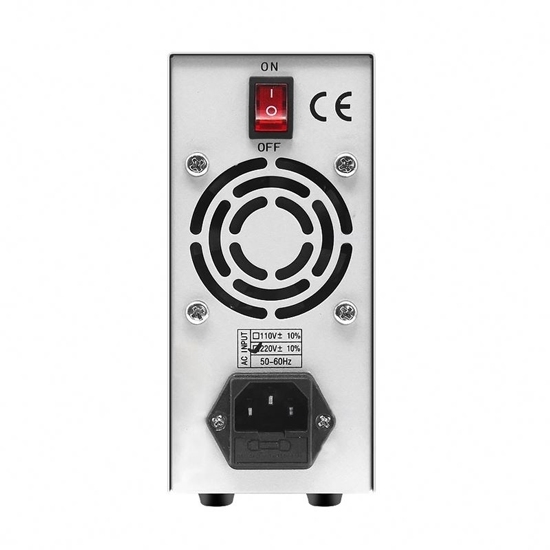

Input Voltage	110V or 220V AC (+/- 10%)
Output Voltage Range	0-30V
Output Current Range	0-2A
Output Power	60W
Frequency	50Hz/60Hz
Output Type	Single
Display	4 digit
Voltage Display Accuracy	±0.5%
Current Display Accuracy	±0.5%
Efficiency	>85%
Voltage Regulation
Load Regulation (10-100%)	50mV
Line Regulation (200-240VAC)	20mV
Ripple & Noise (P-P)	30mV
Current Regulation
Load Regulation (10-100%)	20mA
Line Regulation (200-240VAC)	20mA
Ripple & Noise (P-P)	20mA
Others
Protection	Over load and over valtage protecion
Operating Ambient	-10℃ to + 60℃/ 30%RH to 90% RH
Certification	CE, RoHS
Warranty	12 Months
Size	70 (W) x 160 (H) x 220 (D) mm
Weight	2kg
Package List	1 x DC Power Supply Host, 1 x Output Power Cord, 1 x User Manual

Details

6 tips for using DC variable power supply

According to the required voltage, first adjust the "coarse adjustment" knob, and then gradually adjust the "fine adjustment" knob to achieve correct coordination. For example, to output 12V voltage, you need to set the "coarse adjustment" knob at 15V, and then adjust the "fine adjustment" knob to 12V, while the "coarse adjustment" knob should not be set at 10V. Otherwise, the maximum output voltage cannot reach 12V.
After adjusting to the required voltage, connect the load.
In the use process, if it is necessary to change the "coarse adjustment" gear, disconnect the load first, and then connect the load after the output voltage is adjusted to the required value.
In the process of use, when the protection is caused by load short circuit or overload, first disconnect the load, then press the "reset" button, or turn on the power again, the voltage can resume normal operation, and then connect the load after troubleshooting.
When each power supply with different rated current is used in series, the output current is the rated value of the lowest one.
Each power supply has a meter, which indicates the output current or output voltage of this circuit in different A/V states. It is usually placed in the voltage indication state.
