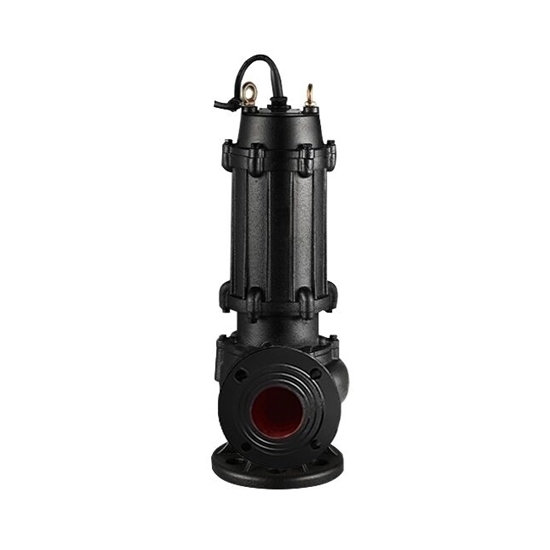

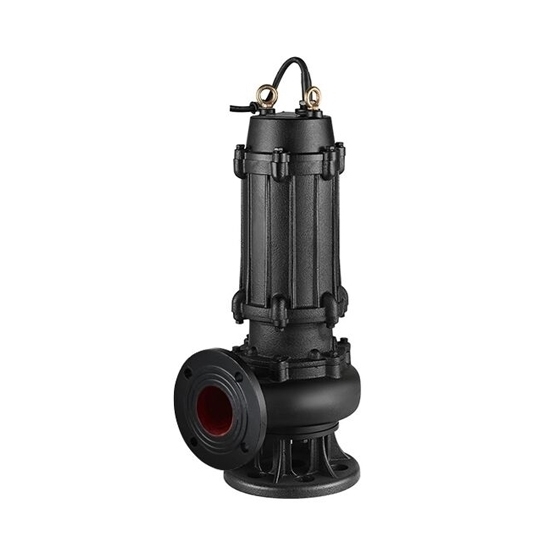

The design of 25 hp cast iron sewage pump is reasonable, with double guide rail automatic coupling installation system. The installation and maintenance of the 3 phase sewage pump has brought great convenience.

Features:

• Reasonable design, reasonable matching motor, high efficiency.
• Home sewage pump with compact structure, small volume, easy to move, easy to install, no need to build pump room.
• Double guide rail automatic coupling installation system, to the sewage pump installation and maintenance has brought great convenience.
• Large flow channel anti-clogging hydraulic parts design, greatly improve the ability of sewage through, can effectively through the sewage pump diameter of 5 times the fiber material and the diameter of about 50% of the submersible sewage water pump diameter solid particles.
• Mechanical seal adopts double series seal, material is hard corrosion resistant tungsten carbide, durable, wear-resistant, can make the heavy duty sewage pump safe continuous operation for more than 8000 hours.

Specification:

• Model: RDDLZ-80WQ60-45-18.5
• Rated Power: 25 hp (18.5 kW)
• Rated Voltage: 380V (Please contact us if you need other voltage)
• Rated Flow: 60 m³/h
• Rated Head: 45m
• Inlet Size: 3 inch
• Caliber: 80 mm
• Underwater Penetration (Max): 30m
• Motor Phase: 3 phase
• Body Material: Cast iron
• Rotate Speed: 2900 r/min
• Outlet Pressure: 0.1 MPa
• Weight: 180 kg

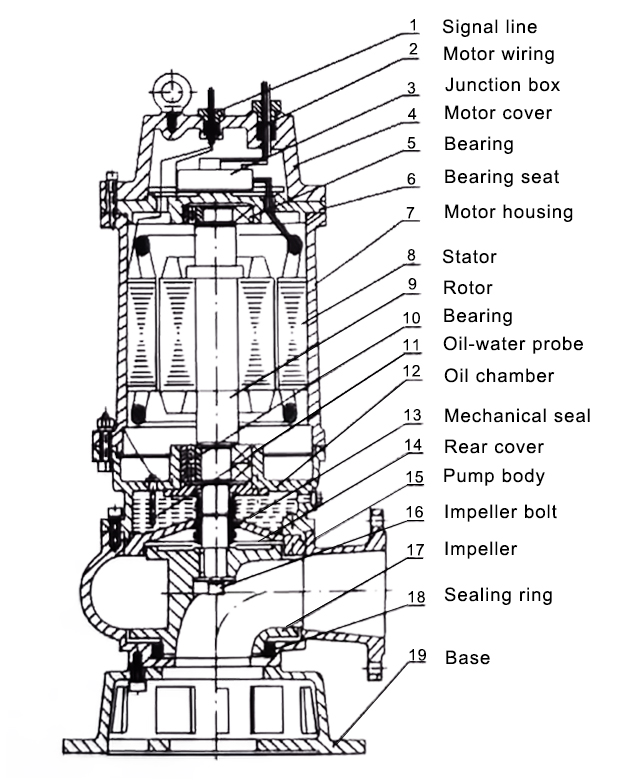

Submersible Sewage Pump Structure:

Tips: Does Sewage Pump Need Maintenance?

Maintaining and cleaning the pump are basically the same thing. Debris that is stuck in the float will ultimately affect the sewage pump, and the waste will back up. You can clean the pump as part of its routine maintenance or deal with it when a problem arises. Water from under or around your home drains into a sewage pump pit, and is then pumped out of your home and away from the foundation. As with any other system or appliance you may have in your home, a sewage pump needs regular maintenance to keep it functioning properly.
