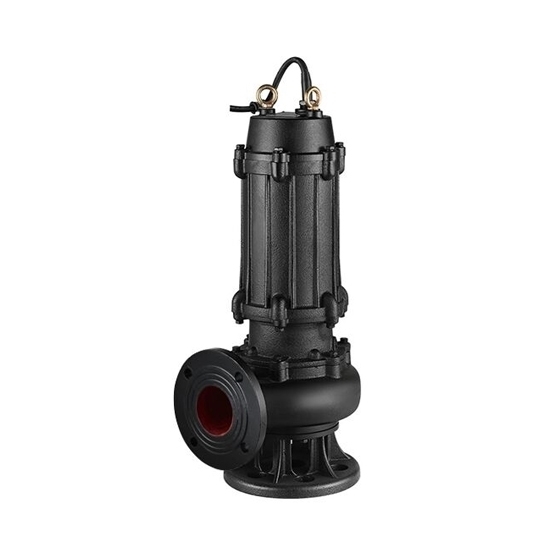

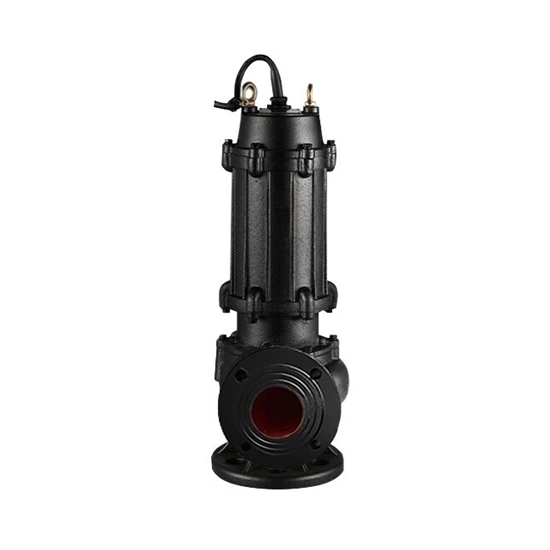

15 HP Submersible Sewage Pump, 3 Phase

0 reviews • Write a review

from

$3,674.61

Ex Tax: $3,674.61

Stock: In Stock
Model: RDDLZ-SSP-15HP
Weight: 1.00
SKU: RDDLZ-SSP-15HP

Available Options

Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Industrial sewage pump adopts double guide rail automatic coupling installation system. Mechanical seal of 15 hp sewage pump adopts double channel series seal, material is hard corrosion-resistant tungsten carbide.

Features:

Reasonable design, reasonable matching motor, high efficiency.
Submersible sewage pump with compact structure, small volume, easy to move, easy to install, no need to build pump room.
Double guide rail automatic coupling installation system, to the sewage pump installation and maintenance has brought great convenience.
Large flow channel anti-clogging hydraulic parts design, greatly improve the ability of sewage through, can effectively through the high head sewage pump diameter of 5 times the fiber material and the diameter of about 50% of the sewage pump diameter solid particles.
Mechanical seal adopts double series seal, material is hard corrosion resistant tungsten carbide, durable, wear-resistant, can make the 3 phase submersible sewage pump safe continuous operation for more than 8000 hours.

Specification:

Model: RDDLZ-80WQ60-30-11
Rated Power: 15 hp (11 kW)
Rated Voltage: 380V (Please contact us if you need other voltage)
Rated Flow: 60 m³/h
Rated Head: 30m
Inlet Size: 3 inch
Caliber: 80 mm
Underwater Penetration (Max): 30m
Motor Phase: 3 phase
Body Material: Cast iron
Rotate Speed: 2860 r/min
Outlet Pressure: 0.1 MPa
Weight: 130 kg

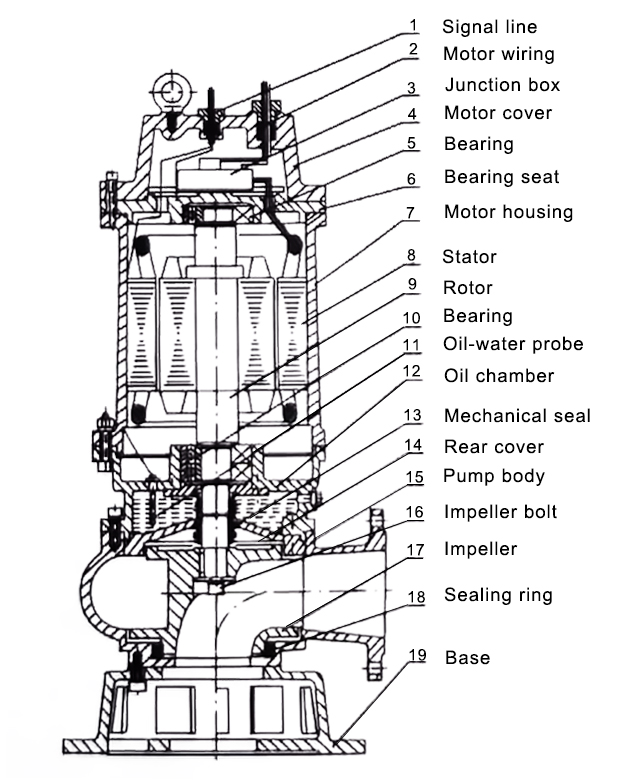

Submersible Sewage Pump Structure:

Tips: Conditions of Sewage Pump Use

Sewage pump for our life has an indispensable role, the following points are the conditions of sewage pump use.

The medium temperature is not more than 60C, the weight is 1.0-1.3 kg/dm³, and the PH value is in the range of 5-9.
For sewage pump with no internal artesian circulating cooling system, the liquid surface of motor part shall not exceed 1/2.
Under normal circumstances, the sewage pump must be used within the range of head, to ensure that the motor is not loaded.
The current of the sewage pump motor shall not exceed the rated current of the motor during operation.
