20kVA 3-Phase 380v 50Hz/220v 60Hz Frequency Converter

Free Shipping

20kVA 3-Phase 380v 50Hz/220v 60Hz Frequency Converter

0 reviews • Write a review

from

$7,791.99

Ex Tax: $7,791.99

Stock: In Stock
Model: HZ-50-3320
Weight: 1.00
SKU: HZ-50-3320

Available Options

Input Voltage (Three Phase)

Wiring Type

Output Frequency

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

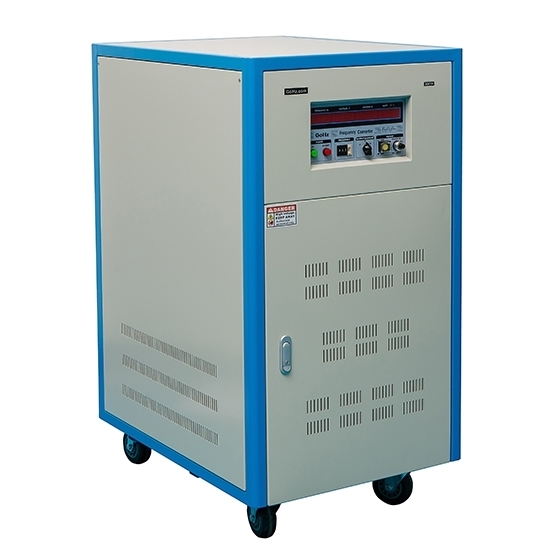

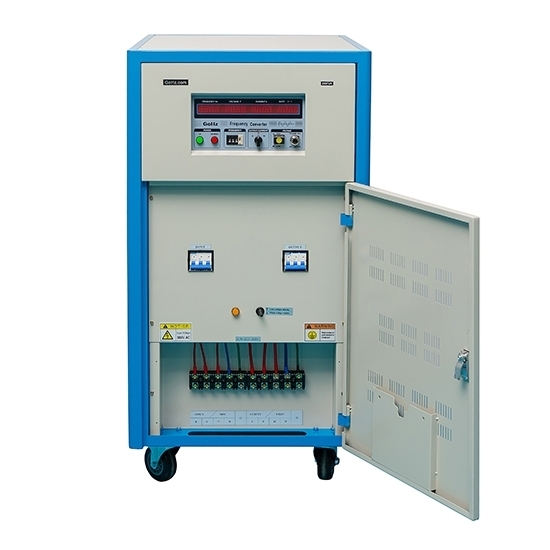

20 kVA three phase solid state frequency converter, 50/60 Hertz 208V, 220V, 380V, 400V, 420V, 460V, 480V input, adjustable voltage (0V-520V) and frequency (40Hz-400Hz) output.

Specification:

Model	HZ-50-3320
Capacity	20 kVA
Dimension	7705801140mm
Weight	220 kg

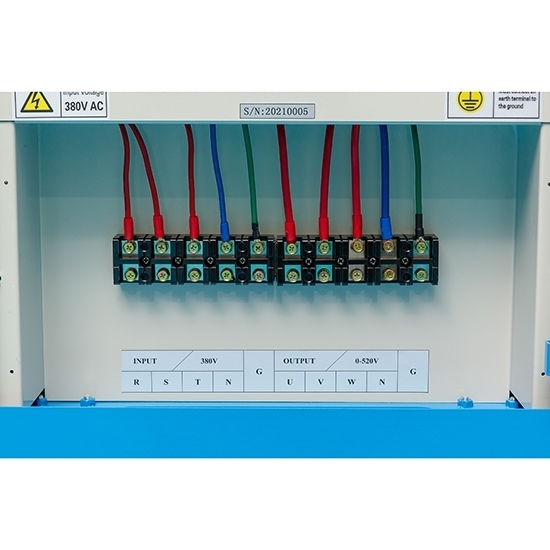

Input	Voltage	3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
		3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
		3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 55.6A
	Voltage, current	220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 27.8A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%

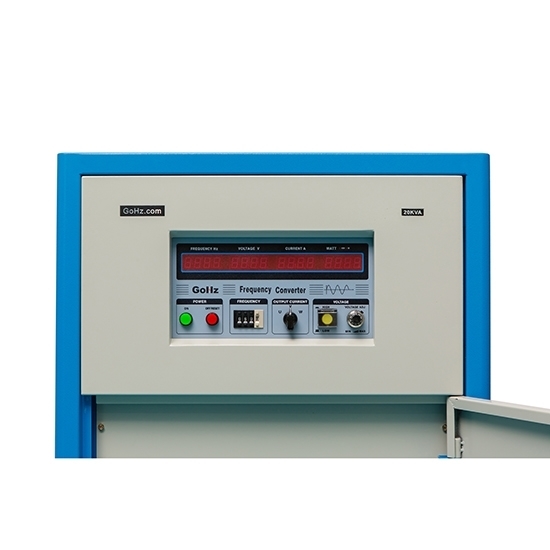

	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

Tips: Will 50Hz and 60Hz exchange affect transformer?

The influence of 50Hz/60Hz to the transformer and mutual inductor is similar to the contactor. The frequency change has no great influence to its performance. But it is mainly reflected in the loss and temperature rise. Therefore, it can be generally used in a certain design tolerance range. In addition, the transformer and mutual inductor of the same capacity designed by 50Hz is bigger than that of 60Hz in size, because satisfying the same voltage grade U≈E=4.44Fnbs, a lower frequency f will magnify the winding number N or increase the effective area S.
