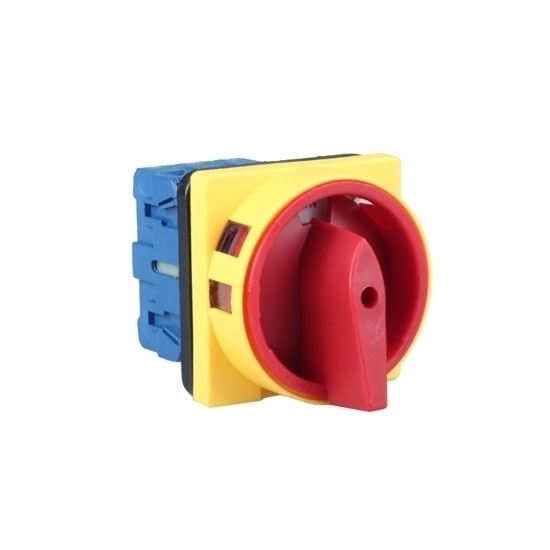

2 Position 80A Rotary Switch 3 Pole/4 Pole

0 reviews • Write a review

from

$89.65

Ex Tax: $89.65

Stock: In Stock
Model: RDDLZ-WS3080
Weight: 1.00
SKU: RDDLZ-WS3080

Available Options

Type Selection

Pole

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Rotary cam switch 3 pole/4 pole is available, 80A, frequency 50Hz, changeover switch can be used for commutation measurement of various control lines, voltmeters and ammeters.

Specification:

Model		RDDLZ-WS3080
Rated Thermal Current		80A
Rated Working Voltage		240V	440V
Rated Working Current	AC-21A	80A	80A
	AC-22A	80A	80A
	AC-23A	57A, 18.5 kW	57A, 30 kW
	AC-3	43A, 15 kW	43A, 22 kW
Pole		3 Pole/4 Pole
Position		2 Position
Type of Current		AC 50Hz
Positions of Main Contact		On or Off
Rated Duty		8 Hours every day, operational efficiency 30 times/hour

Dimensions

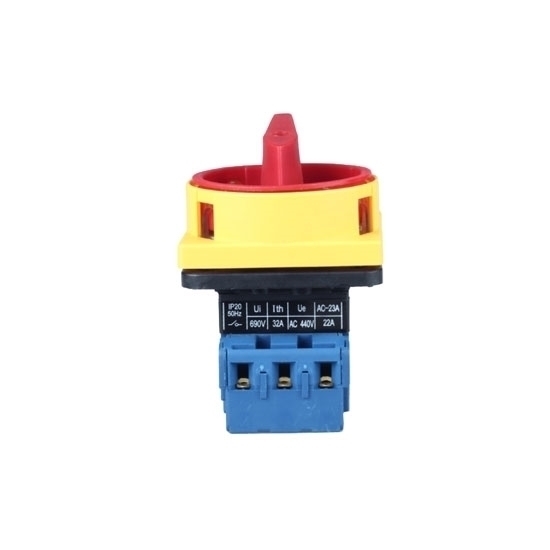

1. Default version

Overall Dimension (mm)					Mounting Dimension (mm)
A	B	C	K	L	E	F	D1	D2
64	70	80	22.5	82	48	48	φ10	φ4.2

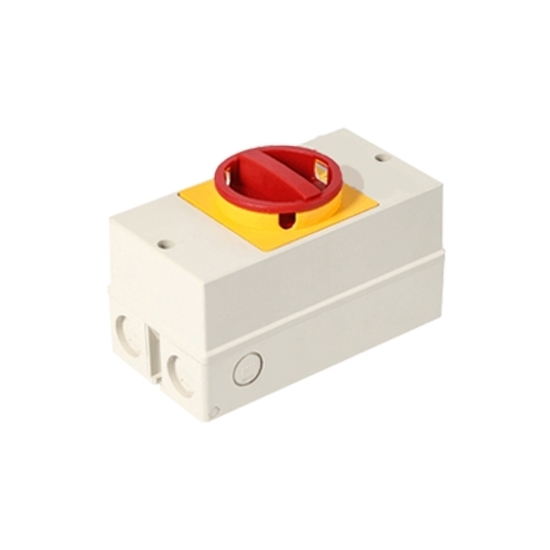

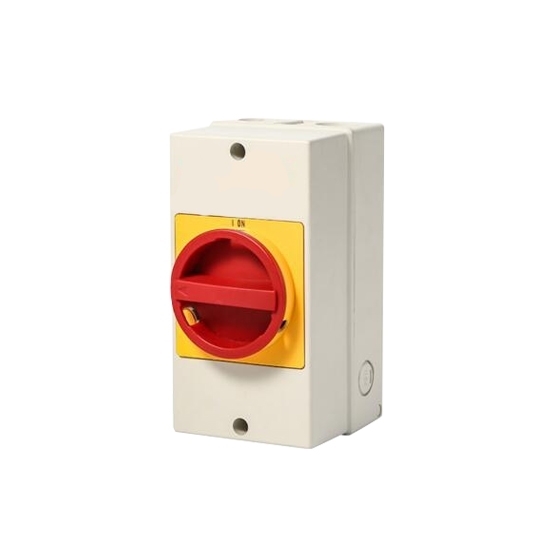

2. IP65 version

Overall Dimension (mm)					Mounting Dimension (mm)
D3	D4	M	N	P	A1	A2	B	D2
φ37.5	φ23	144	145	250	--	229	124	φ6.5

Rotary Switch Diagram

Working Conditions

1. The ambient air temperature ≤ +40 ° C, and the average temperature within 24h ≤ +35 ° C.
2. The lower limit of ambient air temperature ≤ -25 °C.
3. The altitude of the installation location is ≤2000m.
4. When the maximum temperature is +40 °C, the relative humidity of the air does not exceed 50%, and the higher relative humidity can be allowed at lower temperatures, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs due to temperature changes.

Tips: In the configuration of the rotary switch, a rotating shaft is formed by the bottom through the top cover to form a rotating handle, and the bottom plate and the top cover are clamped and fixed up and down to form a switch assembly. When in use, it can rotate 90 degrees 180 degrees or 360 degrees, each rotation to a position. The movable contacts are connected to different static contacts, and different states can be outputted on the external terminals, thereby achieving control.
