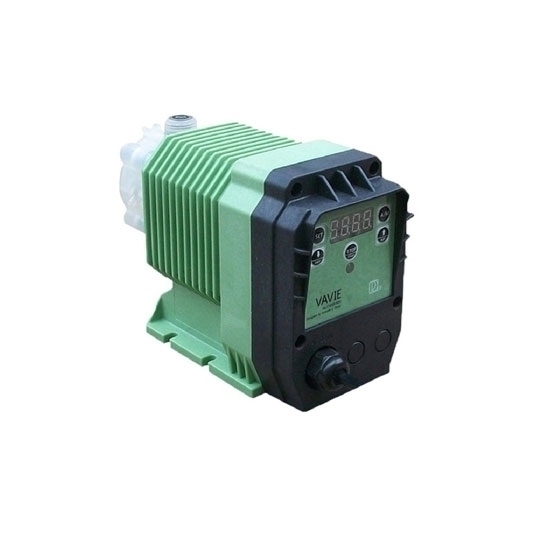

Diaphragm Dosing Pump, 9 L/h Flow

0 reviews • Write a review

from

$289.86

Ex Tax: $289.86

Stock: In Stock
Model: RDDLZ-DP-V09003
Weight: 1.00
SKU: RDDLZ-DP-V09003

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Diaphragm solenoid metering pump for sale, flow 9 L/h, 24 watt, resistant to weak acid and alkali, low price, button adjustment to control the flow rate, easy to use.

9 L/h Diaphragm Metering Pump Features

Green screen digital display, brand new circuit design, more stable operation
Stroke frequency button adjustment
New type of one-way valve assembly, PTFE valve seat, acid and alkali resistance, more reasonable structure, stronger sealing
ACEH/PC shell, strong and durable structure, weather resistance is far better than ABS material
A variety of pump heads and sealing materials are available, suitable for a wider range of media delivery
Optional low liquid level stop pump and alarm function
Added diaphragm damage protection and alarm function
Optional external pulse signal or 4-20mA analog signal.

Diaphragm Dosing Pump Specification:

Model	RDDLZ-DP-V09003
Power	24W
Flow	9 L/h
Pressure	3.5 Bar
Stroke	120 N/m
Wet Suction Range	1.5m
Dosing Pump Tubing	4 x 6mm
Interface	DN 15mm
Power Supply	220V
Repeated Measurement Accuracy	-5%~5%
Allowable Ambient Temperature	5℃~180℃ (PTFE pump head ),
Allowable Medium Viscosity	High viscosity pump head ≤ 1000 mPA.s
Particle Diameter	≤0.15mm
Protection Class	IP55
Insulation Class	F
Weight	2.9 kg
Warranty Period	12 Months

Digital Dosing Pump Dimension (unit: mm)
