2 Position 63A Rotary Switch 3 Pole/4 Pole

0 reviews • Write a review

from

$77.69

Ex Tax: $77.69

Stock: In Stock
Model: RDDLZ-WS3063
Weight: 1.00
SKU: RDDLZ-WS3063

Available Options

Type Selection

Pole

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

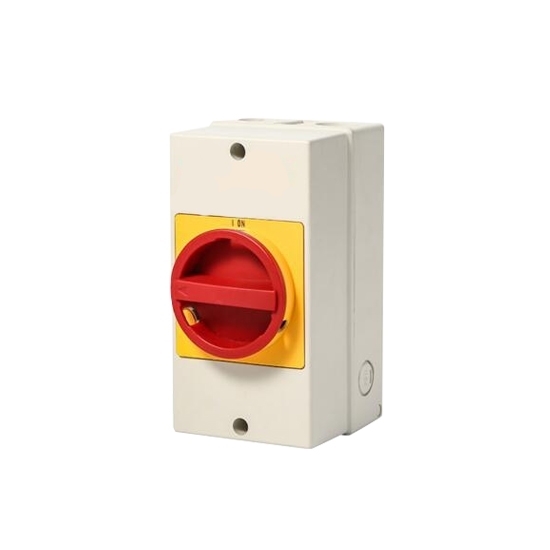

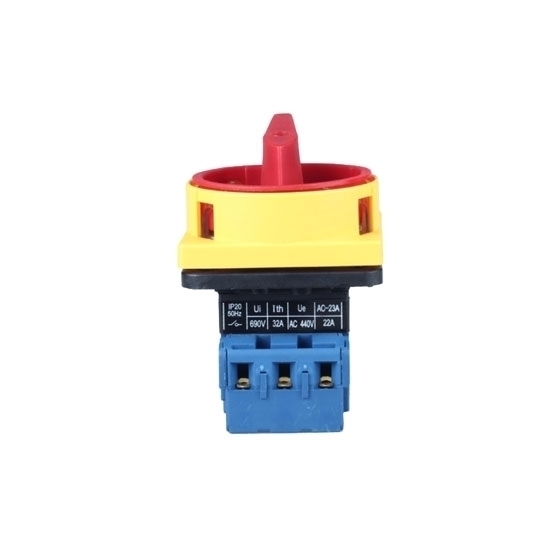

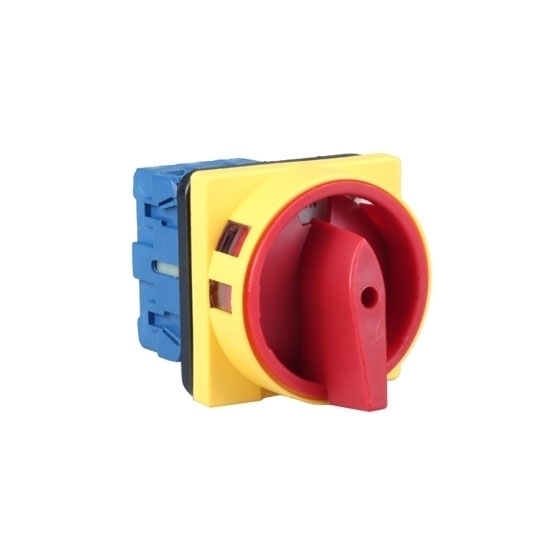

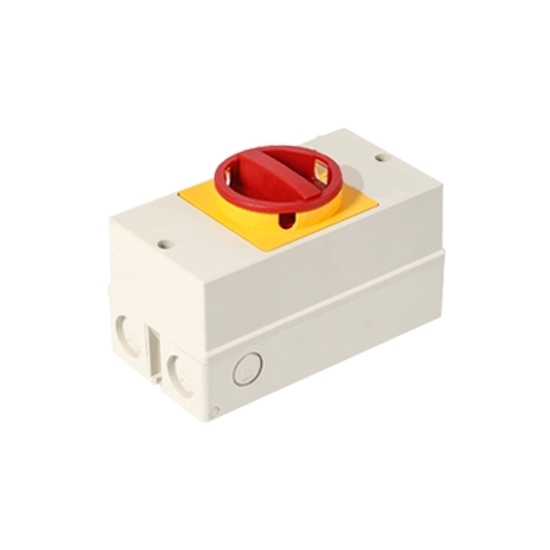

2 position rotary cam switch rated current 63A, 3 pole/4 pole, rotary selector switch design, easy to control, square plate installation is convenient.

Specification:

Model		RDDLZ-WS3063
Rated Thermal Current		63A
Rated Working Voltage		240V	440V
Rated Working Current	AC-21A	63A	63A
	AC-22A	63A	63A
	AC-23A	43A, 11 kW	43A, 22 kW
	AC-3	36A, 11 kW	36A, 18.5 kW
Pole		3 Pole/4 Pole
Position		2 Position
Type of Current		AC 50Hz
Positions of Main Contact		On or Off
Rated Duty		8 Hours every day, operational efficiency 30 times/hour

Dimensions

1. Default version

Overall Dimension (mm)					Mounting Dimension (mm)
A	B	C	K	L	E	F	D1	D2
64	50	64	16	67	48	48	φ10	φ4.2

2. IP65 version

Overall Dimension (mm)					Mounting Dimension (mm)
D3	D4	M	N	P	A1	A2	B	D2
φ29	φ23	100	95	190	178	--	--	φ4.2

Rotary Switch Wiring Diagram

Working Conditions

1. The ambient air temperature ≤ +40 ° C, and the average temperature within 24h ≤ +35 ° C.
2. The lower limit of ambient air temperature ≤ -25 °C.
3. The altitude of the installation location is ≤2000m.
4. When the maximum temperature is 40 °C, the relative humidity of the air does not exceed 50%, and the higher relative humidity can be allowed at lower temperatures, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs due to temperature changes.

Tips: The rotation area of the rotary switch has a certain range of tolerance, mainly the effect that the resistance value plays a full role when switching the contact switch. Channel and volume adjustments like traditional black and white TVs are achieved by rotating the switch. The control of the fan's gear is the rotary switch. There are several sets of lead wires inside, and the speed of the different gears is changed by changing the number of coil turns around the early fan resistor. Most of the washing and dehydrating functions of the washing machine are controlled by a rotary switch.
