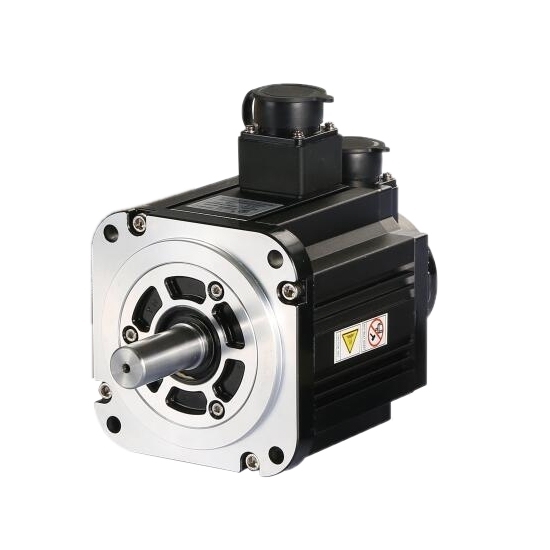

2 kW high torque servo motor, brushless design, 3-phase 220V AC voltage, 2500 rpm, max speed up to 2800 rpm. Heavy duty electric servo motor is130mm square flange size, suitable for industrial automation, embroidery machines, printing machinery, CNC machine, wood carving and other fields.

Basic Specifications

• Model: RDDLZ130SY-M07725
• Matched Drive Model: RDDLZ-SG-AS302600
• Rated Power: 2000 W
• Rated Voltage: Three phase 220V AC
• Rated Current: 7.5 A
• Rated Speed: 2500 rpm
• Max Speed: 2800 rpm
• Rated Torque: 7.7 Nm
• Peak Torque: 22 Nm
• Square Flange Size: 130 mm
• Weight: 10 kg

Technical Parameters

• Number of Poles: 4 pairs
• Rotor Inertia: 1.53x10^-3 Kg.m²
• Brake Voltage: 24V DC (Non polar requirement)
• Incremental Encoder Line: 2500/5000 PPR (Optional)
• Absolute Encoder: 17 bit, 23 bit (Optional)
• Insulation Class: Class B
• Insulation and Voltage Resistance: 1500V AC, 1 Min
• Protection Grade: IP65

Features

1. Accuracy: RDDLZ AC servo motors realize closed-loop control of position, speed and torque, overcome the problem of stepper motor out-of-step.
2. Speed: Good high-speed performance, rated speed can reach 1000-3000 rpm.
3. Adaptability: RDDLZ heavy duty servo motors with strong anti-overload capability, able to withstand a load three times the rated torque, especially suitable for occasions with instant load fluctuations and requiring quick start.
4. Stable: Our AC brushless servo motors have smooth low-speed operation, no stepping phenomenon similar to stepper motor will occur when running at low speed, suitable for occasions occasions requiring fast response.
5. Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds.
6. Safety: RDDLZ AC servo motor protection grade is IP65, which meets the waterproof and dustproof requirements.

Installation Dimension (unit: mm)

Servo Motor without Brake Dimension

L (Incremental/Absolute encoder): 195 mm

Servo Motor with Brake Dimension

L1 (with brake): 245 mm

Note:

*All above is the standard installation dimension, can be changed according to the customers' requirments.
*Not hit the shaft, or the encoder in the other end would be damaged.

Details

Winding and Encoder Connection

Tips: Allowable shaft terminal load for servo motor

1. Ensure that radial and axial load applied on servo motor shaft during installation and running is controlled within the specific value of every model.
2. Take special care when installing the rigid coupling, especially note that excessive bending may cause damage or wear to shaft terminal and bearing.
3. It is better to use flexible coupling, so as to make the radial load lower than allowable value. This element is specially designed for servo motor with high mechanical strength.
