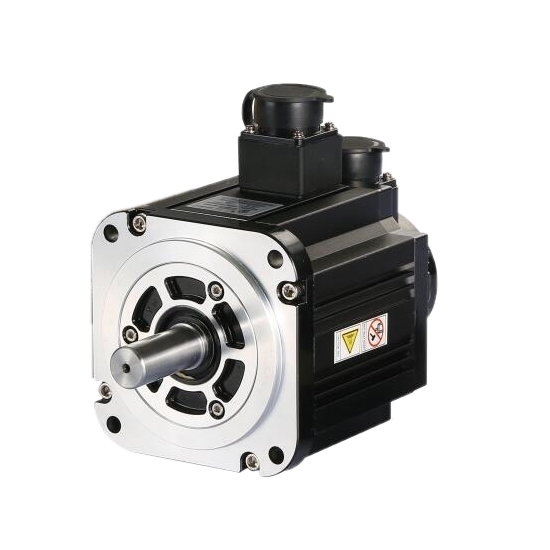

1500 watt AC servo motor, brushless design, 6 amps, 10 Nm rated torque, 1500 rpm low speed control. Powerful industrial servo motor is 130mm square flange size, with brakes options available.

Basic Specifications

• Model: RDDLZ130SY-M10015
• Matched Drive Model: RDDLZ-SG-AS302600
• Rated Power: 1.5 kW (2 hp)
• Rated Voltage: Three phase 220V AC
• Rated Current: 6 A
• Rated Speed: 1500 rpm
• Max Speed: 1800 rpm
• Rated Torque: 10 Nm
• Peak Torque: 25 Nm
• Square Flange Size: 130 mm
• Weight: 10 kg

Technical Parameters

• Number of Poles: 4 pairs
• Rotor Inertia: 1.94x10^-3 Kg.m²
• Brake Voltage: 24V DC (Non polar requirement)
• Incremental Encoder Line: 2500/5000 PPR (Optional)
• Absolute Encoder: 17 bit, 23 bit (Optional)
• Insulation Class: Class B
• Insulation and Voltage Resistance: 1500V AC, 1 Min
• Protection Grade: IP65

Features

1. Accuracy: RDDLZ AC servo motors realize closed-loop control of position, speed and torque, overcome the problem of stepper motor out-of-step.
2. Speed: Good high-speed performance, rated speed can reach 1000-3000 rpm.
3. Adaptability: RDDLZ heavy duty servo motors with strong anti-overload capability, able to withstand a load three times the rated torque, especially suitable for occasions with instant load fluctuations and requiring quick start.
4. Stable: Our AC brushless servo motors have smooth low-speed operation, no stepping phenomenon similar to stepper motor will occur when running at low speed, suitable for occasions occasions requiring fast response.
5. Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds.
6. Safety: RDDLZ AC servo motor protection grade is IP65, which meets the waterproof and dustproof requirements.

Installation Dimension (unit: mm)

Servo Motor without Brake Dimension

L (Incremental/Absolute encoder): 212 mm

Servo Motor with Brake Dimension

L1 (with brake): 262 mm

Note:

*All above is the standard installation dimension, can be changed according to the customers' requirments.
*Not hit the shaft, or the encoder in the other end would be damaged.

Details

Winding and Encoder Connection

Tips: Tension reduction for servo motor cable

1. Ensure that cable is not subjected torque or vertical load due to external bending force or its own weight, especially at cable outlet or joint.
2. When servo motor is moving, fix the cable (just that line which is provided with motor) at a static part (use motor as reference) firmly and use an additional cable installed in cable holder for extension, which can minimize the bending tension.
3. Make the bend radius of cable be as large as possible.
