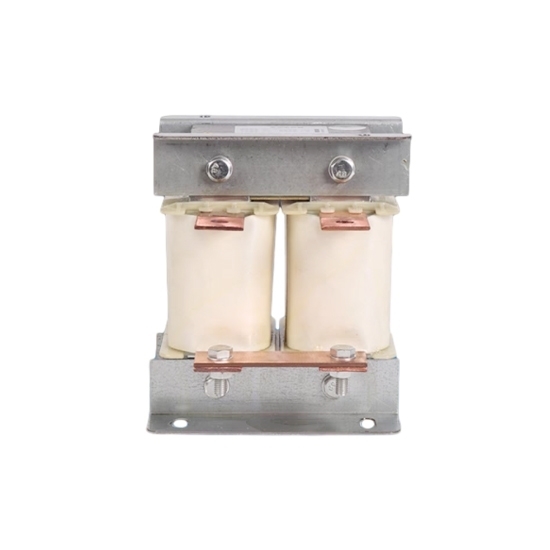

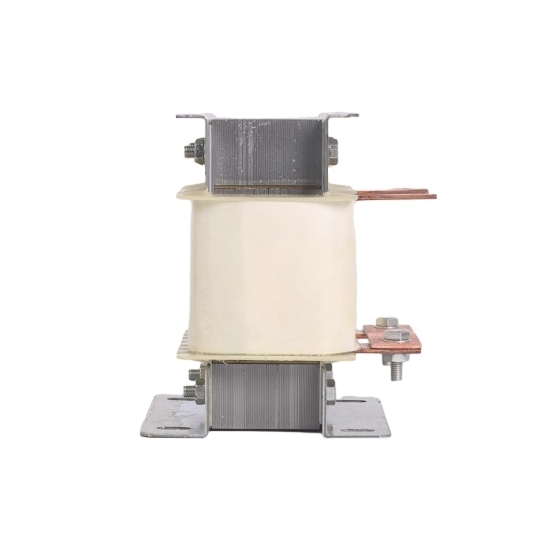

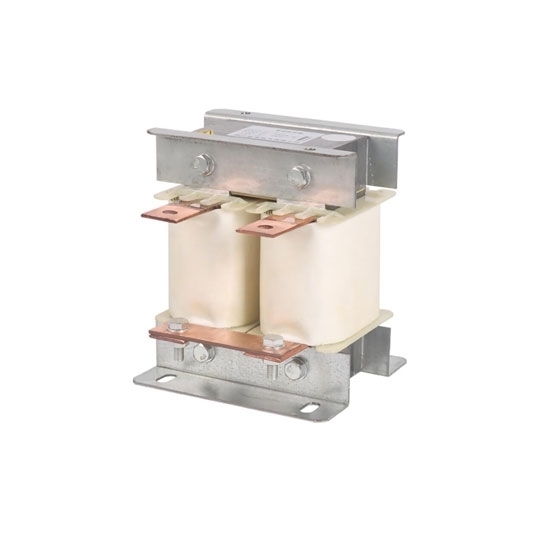

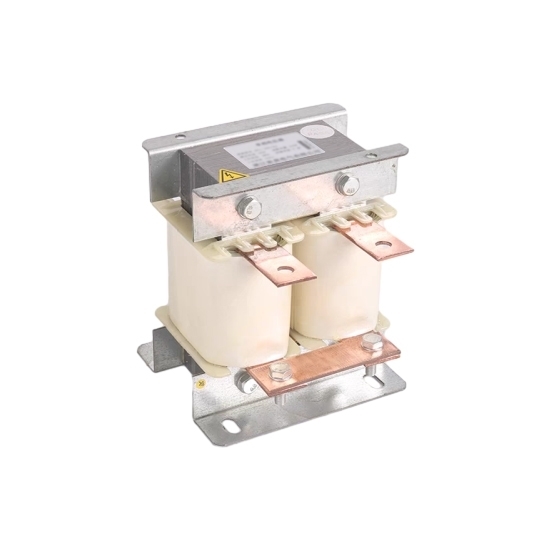

25 Hp (18 KW) DC Reactor, Single Phase

0 reviews • Write a review

from

$277.06

Ex Tax: $277.06

Stock: In Stock
Model: RDDLZ-DCR-25
Weight: 1.00
SKU: RDDLZ-DCR-25

Available Options

Voltage

Material

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Single phase DC reactor for reducing harmonic interference, 25 hp (18 kW), single phase, material can select aluminum or copper, DC line reactor is widely used in the lifting industry.

Specification:

Model	RDDLZ-DCL-50
Phase	1 Phase
Power Adapter	18 kW (25 hp)
VFD Voltage Adapter	220V-1200V (Contact us for other voltages)
Rated Current	50A
Inductance	0.635mH
Insulation Grade	F.H
Dimension	132125140mm (LWH)
Mounting Dimension	110*75mm
Electric Strength	Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistance	iron core-winding 1000VDC, Insulation resistance ≥100MV
Noise of Reactor	Less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of Protection	IP00
Degree of Insulation	> Class F
Weight	9.5kg

Features
1. Improve the input current wave caused by capacitor harmonics
2. Reduce and prevent rectifier bridge damage and capacitors
3. Overheating due to a surge in current.
4. Improve the power factor and reduce the AC pulse of the DC bus.
5. Limit transient changes in system voltage

Dimension (unit: mm)
Details

Tips: Inverter reactor function

Inverter-specific reactors are usually installed at the input or output end of the inverter's DC governor, which can resist the transmission of the 3rd and 5th harmonics generated by the inverter to the power grid, reduce the interference of harmonics generated by the frequency conversion on other components, and improve the power grid Quality, improve power factor and limit the abnormal fluctuation of grid voltage and inrush current on the grid, smooth the waveform, and reduce the impact on the inverter. In addition, the inverter reactor also has the following functions:

1. Capacitive effects on light no-load or light-load lines to reduce power frequency transient overvoltage.
2. Improve the voltage distribution on long transmission lines.
3. The reactive power in the line is balanced as far as possible at light load to prevent the unreasonable flow of reactive power, and it also reduces the power loss on the line.
4. Prevent the self-excitation resonance phenomenon that may occur in the long line of the generator.
