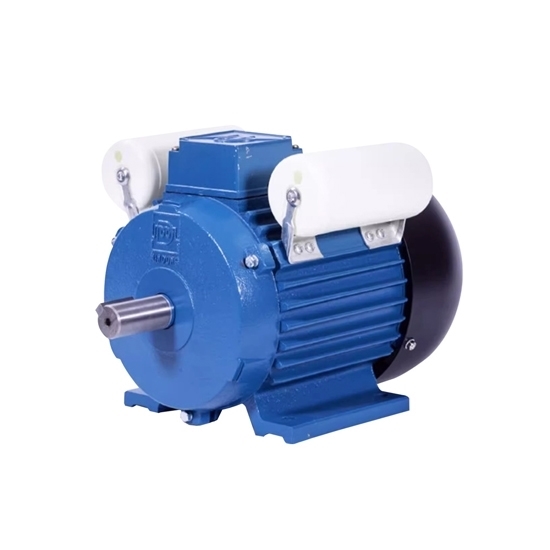

2 Hp (1.5kW) 220V Single Phase AC Induction Motor

0 reviews • Write a review

from

$519.69

Ex Tax: $519.69

Stock: In Stock
Model: RDDLZ-SPM-1500
Weight: 1.00
SKU: RDDLZ-SPM-1500

Available Options

Short Description

Voltage (V)

Speed

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy a high efficiency 2 hp single phase motor at low price. 1 phase induction motor has a start capacitor and run capacitor, zero starting torque can be got during operation. 1.5KW 1 phase motor with optional speed 1500/3000 rpm, 200V/110V/230V/240V voltage, works at 50/60 Hz frequency, and supplies for home appliances, offices, stores and small non-industrial companies.

Specifications

Model	RDDLZ-YL90S-2	RDDLZ-YL90L-4
Rated Output	1.5kW (2hp)
Efficiency	76%	75%
Power Factor	0.95 COSφ
Rated Speed	2820rpm	1420rpm
Rated Current	9.03A	9.15A
Pole	2 Pole	4 Pole
Voltage	220V AC 50Hz (Default), other customizations can be customized.
Tmax/Tn	1.8 times
Ts/Tn	1.7 times
ls/ln	55 times	55 times

Dimension (Unit: mm)

Frame Size	Mounting Dimension									Overall Dimension
Frame Size	A	B	C	D	E	F	G	H	K	AB	AC	AD	AE	HD	L
90S	140	100	56	24	50	8	20	90	10	180	185	160	130	240	370
90L	140	125	56	24	50	8	20	90	10	180	185	160	130	240	400

Details

Tips: Single phase induction motor capacitor wiring connection

Single phase induction motors have three taps. First, use a universal meter to measure the electrical graph values between the three parties. The two terminals with large resistance are connected in parallel with the capacitor, and the other terminal (common terminal) is connected to one end of the power supply. Then use the electric barrier of the multimeter to measure the resistance between the common terminal and the terminals at both ends of the capacitor. The terminal with the larger resistance is connected to the other end of the power supply, and it is connected to the forward rotation at a time. If you want to change the direction, you can change the power cord on one end of the capacitor to the other end.
