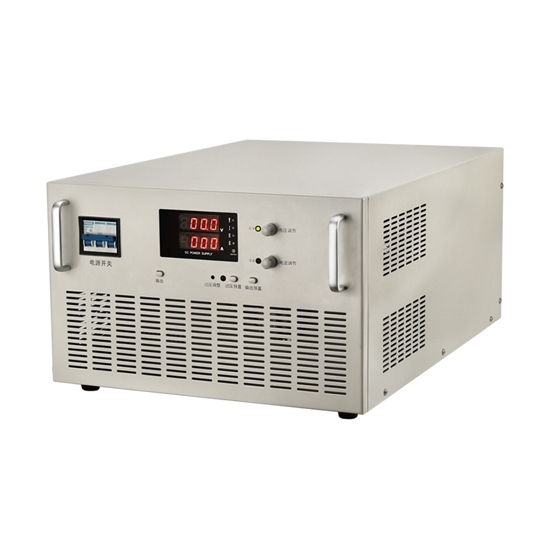

150A 100V 15000W Variable DC Power Supply

0 reviews • Write a review

from

$5,317.69

Ex Tax: $5,317.69

Stock: In Stock
Model: RDDLZ-VDCPS100150K
Weight: 1.00
SKU: RDDLZ-VDCPS100150K

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Variable DC power supply rated at 150 amp and 100 volt serves as a dependable and adjustable power source for a wide range of applications. This adjustable DC power supply offers flexibility and reliability, making it an ideal choice for diverse electronic projects. With its adjustable voltage and current capabilities, coupled with advanced digital control features, this power supply demonstrates efficiency and dependability.

Specification

Model	RDDLZ-JK100150K
Input Voltage	Single Phase 110V AC, Three Phase 220V or 380V AC (+/- 10%) (240V, 400V, 415V, 440V, 460V 480V can be customized)
Output Voltage Range	0-100V
Output Current Range	0-150A
Output Power	15000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months

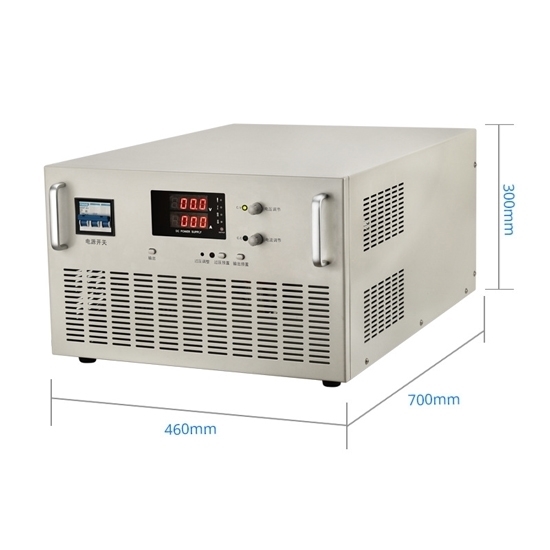

Size	700 (L) x 480 (W) x 295 (H) mm
Weight	45kg

Detail

Tips: Can a variable DC power supply be used for testing and repairing electronic devices?

Yes, a variable DC power supply is an essential tool for testing and repairing electronic devices. It provides a controlled and adjustable voltage output, allowing technicians to simulate different power conditions. This is crucial for identifying and troubleshooting issues in electronic circuits, as components often require specific voltage levels to function correctly. The ability to vary voltage and current settings helps in assessing the stability and performance of devices under different operating conditions. Additionally, it enables the isolation of faulty components by supplying power incrementally and monitoring for abnormalities. In summary, a variable DC power supply is a versatile and indispensable instrument for electronics professionals, offering precision and control in the diagnostic and repair processes.
