2" Hydraulic High Pressure Ball Valve, 2 Way

0 reviews • Write a review

from

$275.49

Ex Tax: $275.49

Stock: In Stock
Model: RDDLZ-HPBV-DN50
Weight: 1.00
SKU: RDDLZ-HPBV-DN50

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

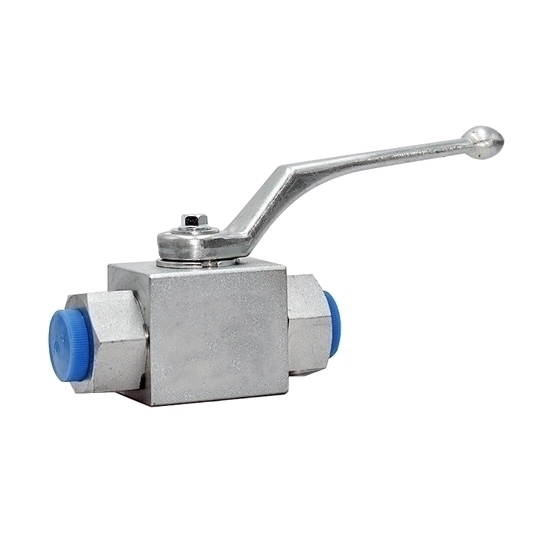

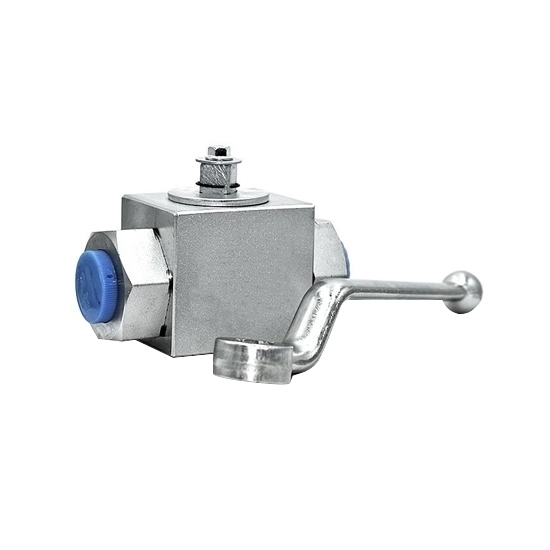

G2 inch hydraulic high pressure ball valve is a type of valve used in hydraulic systems to control the flow of fluids under high pressure. It consists of a spherical closure element (the ball) with a hole through it that can be rotated to either allow or block the flow of fluid. The 2 way ball valve is operated by a lever, handle, or actuator that turns the ball to open or close the valve.

Specification

Model: RDDLZ-KHM-G2
Type: 2 Way High Pressure Ball Valve
Drive Mode: Hydraulic
Port Size: G2 inch (DN50)
Nominal Pressure: 315bar
Applicable Temperature: -29℃~120℃
Applicable Media: Water, Oil
Body Material: Carbon Steel

Dimension (Unit: mm)

DN	LW	d1	i	L	L1	B	H	h1	h2	h3	SW1	SW2
50	48	G2"	26	140	100	105	135.5	55	115	14	17	80

Application

Tips: Can you adjust flow with a hydraulic ball valve?

Yes, a hydraulic ball valve can be used to adjust the flow of fluid within a hydraulic system. A hydraulic ball valve is a type of quarter-turn valve with a spherical disc that controls the flow of fluid through the system. By rotating the handle or actuator connected to the ball valve, you can vary the position of the disc. This movement either allows or restricts the flow of hydraulic fluid, thus enabling flow control.

The degree of flow adjustment achievable with a hydraulic ball valve depends on the valve's design and specifications. Some ball valves are designed for on/off applications, while others are more suitable for precise flow control. When used for flow control, it's important to consider the valve's size, type, and the pressure of the hydraulic system to ensure that it can provide the desired level of adjustment without causing excessive pressure drop or leakage.
