Note: This ball valve cannot be used for drinking water.

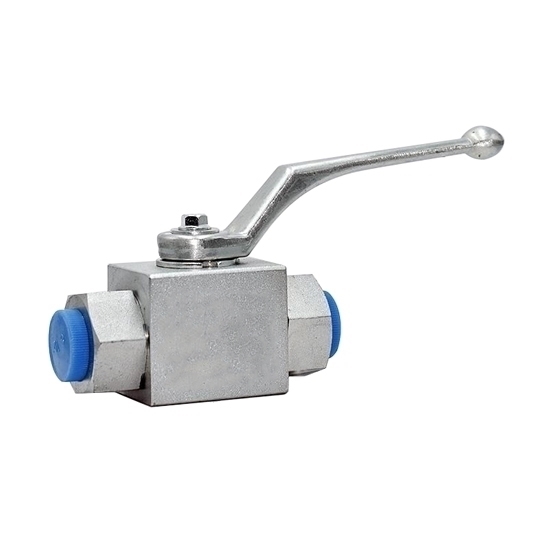

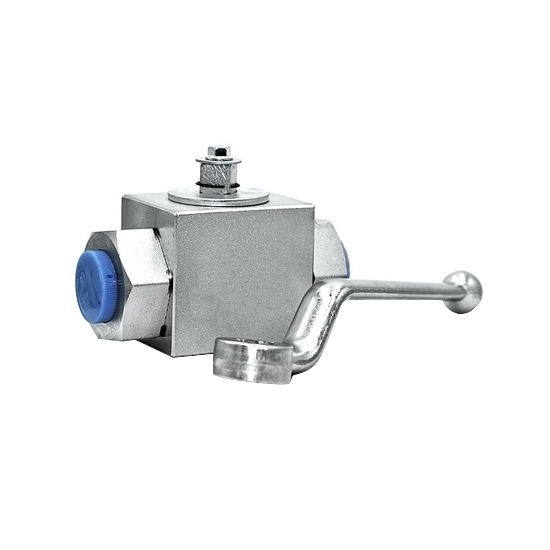

G1-1/2 inch hydraulic high-pressure ball valve is a type of valve designed for use in hydraulic systems where high-pressure fluids are involved. These 2 way ball valves are commonly used to control the flow of hydraulic fluids, such as oil, in various industrial and heavy-duty applications. They are specifically designed to handle high-pressure conditions and provide reliable fluid control.

Specification

• Model: RDDLZ-KHM-G1-1/2
• Type: 2 Way High Pressure Ball Valve
• Drive Mode: Hydraulic
• Port Size: G1-1/2" inch (DN40)
• Nominal Pressure: 315bar
• Applicable Temperature: -29℃~120℃
• Applicable Media: Water, Oil
• Body Material: Carbon Steel

Dimension (Unit: mm)

Application

Tips: Where are 2 way high pressure ball valves used?

High pressure ball valves are essential components in various industries and applications where the control of high-pressure fluids or gases is critical. They are commonly used in the oil and gas industry for controlling the flow of pressurized oil, natural gas, and other hydrocarbons in pipelines, wellheads, and refineries. High pressure ball valves are also employed in power generation facilities to manage high-pressure steam and water in boilers and turbines.

In the chemical and petrochemical industry, these valves are used to handle corrosive and hazardous fluids under high pressure. They find applications in water treatment plants, where they control the flow of high-pressure water, and in aerospace and automotive systems for hydraulic and pneumatic control. Additionally, high pressure ball valves are used in various manufacturing processes and hydraulic systems that involve high-pressure hydraulic fluids. Their durability, reliability, and ability to handle extreme pressure conditions make them indispensable in numerous critical industrial processes.
