Note: This ball valve cannot be used for drinking water.

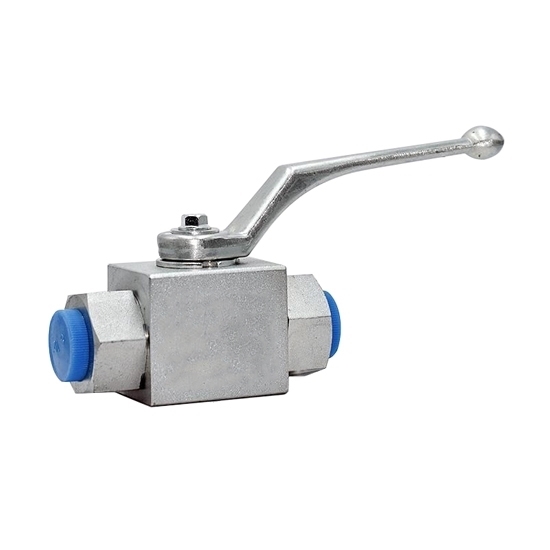

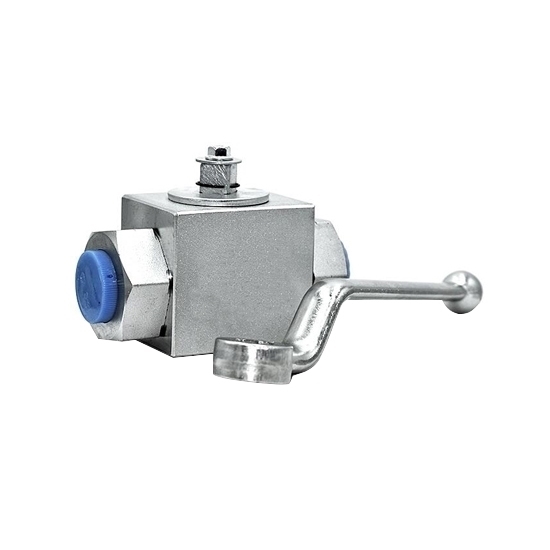

G1/4 inch hydraulic high pressure ball valve is a type of valve used in hydraulic systems to control the flow of fluids under high pressure. It consists of a spherical closure element (the ball) with a hole through it that can be rotated to either allow or block the flow of fluid. The 2 way ball valve is operated by a lever, handle, or actuator that turns the ball to open or close the valve.

Specification

• Model: RDDLZ-KHB-G1/4
• Type: 2 Way High Pressure Ball Valve
• Drive Mode: Hydraulic
• Port Size: G1/4 inch (DN6)
• Nominal Pressure: 500bar
• Applicable Temperature: -29℃~120℃
• Applicable Media: Water, Oil
• Body Material: Carbon Steel

Dimension (Unit: mm)

Application

Tips: What is the function of high pressure ball valve?

A high-pressure ball valve is a critical component used in various industrial applications to control the flow of fluids or gases under elevated pressures. Its primary function is to provide a reliable and efficient means of isolating, diverting, or regulating the flow within a pipeline or system operating at high pressure levels. The valve features a spherical closure (the ball) with a hole through its center. When the valve is in the open position, the hole aligns with the pipeline, allowing fluid or gas to flow freely. When it's in the closed position, the ball is rotated 90 degrees, blocking the flow. High-pressure ball valves are valued for their durability, minimal pressure drop, and fast operation. They are commonly used in industries such as oil and gas, petrochemical, power generation, and manufacturing to ensure safe and precise control of high-pressure fluids and gases, contributing to system reliability and safety.
