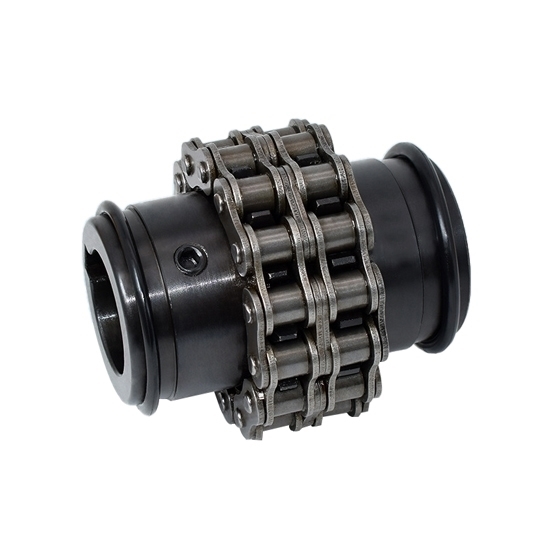

15-35mm Roller Chain Coupling

0 reviews • Write a review

from

$129.68

Ex Tax: $129.68

Stock: In Stock
Model: RDDLZ-CC-5016
Weight: 1.00
SKU: RDDLZ-CC-5016

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The high quality roller chain coupling is precision manufactured to handle tough jobs and provide reliable performance under heavy loads. 15-35mm disassembly without moving the two shafts being coupled, easy installation, which saves time and money.

Specification

Model	RDDLZ-KC-5016
Chain Model	50-2x16
Min Hole Diameter	15
Max Hole Diameter	35
Dimension	A	111
	d	60
	O	93
	L	99.7
	I	45
	S	9.7
	B	85
	C	18.1
Bolt	8M
Max Torque	791 Nm
Max Speed	3600 rpm
Moment of Inertia	37 kg.cm2
Weight	2.7kg

Features

Chain shaft coupling provides direct power transmission between two components without any slip or play, which contributes to efficient power transmission and reduced energy loss.
15 to 35mm chain coupling can accommodate a certain degree of misalignment between the shafts of the two components it connects.
Chain couplings are designed to absorb shock loads and vibrations that may occur during operation, which helps to protect the components and extend their life.

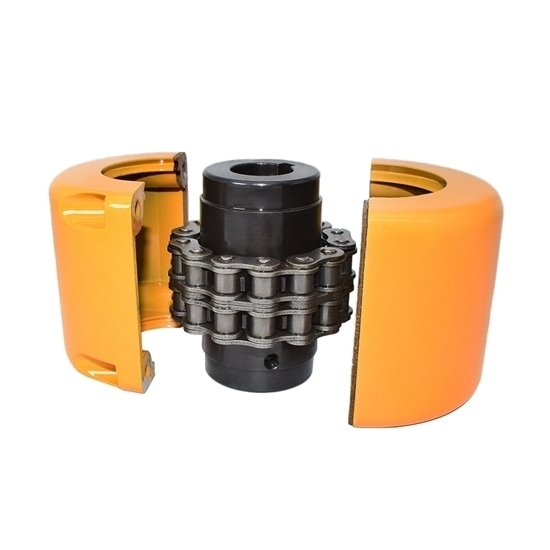

The roller chain coupling has a simple structure and is easy to install and disassemble, without moving the two coupled shafts.

Dimension (unit: mm)

Applications

Chain couplings are commonly used in industrial applications where there is a need to transmit power between two rotating shafts. They are known for their high torque capacity and durability, and are often used in applications where there are large axial and radial misalignments between the shafts. Chain coupling is widely used in various industries, including automotive, aerospace, and manufacturing.

Tips: How does a chain coupling work?

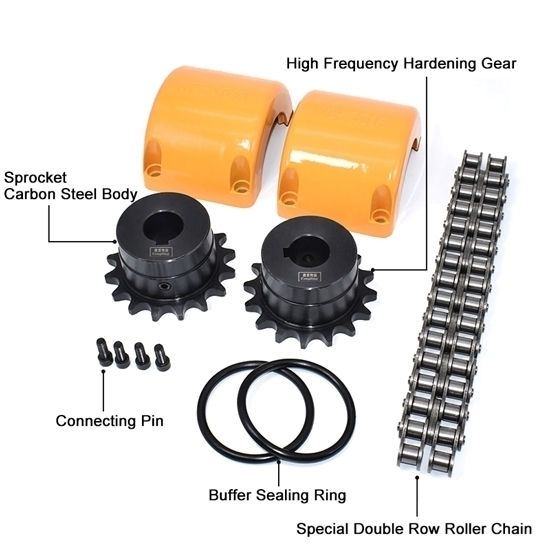

A chain coupling is a type of mechanical coupling used to transmit power between two shafts that are slightly misaligned. The coupling consists of two sprockets (also called gears) connected by a chain. Each sprocket is mounted on one of the shafts, and the chain wraps around both sprockets, transmitting power from one shaft to the other.

When the shafts are misaligned, the chain in the coupling is able to flex and compensate for the misalignment, while still maintaining a constant distance between the two shafts. This flexibility allows the coupling to transmit power smoothly, even if the shafts are not perfectly aligned.
