1/4" Stainless Steel Globe Valve
from
$101.83
Ex Tax: $101.83
- Stock: In Stock
- Model: RDDLZ-GV-14SSGV
- Weight: 1.00
- SKU: RDDLZ-GV-14SSGV
Available Options
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

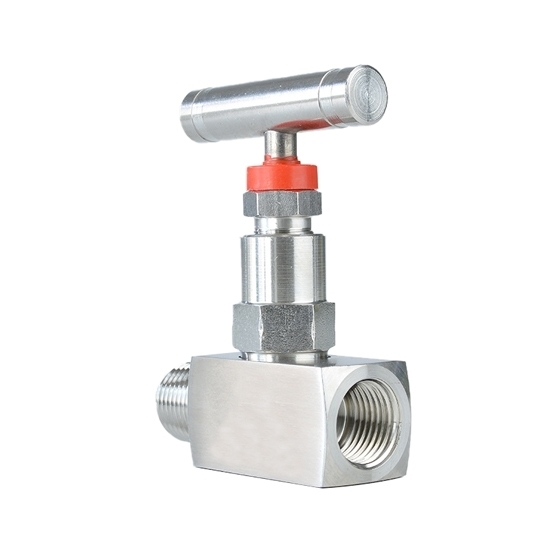

Stainless globe valve has a font handle, simple and compact appearance, saving installation space. 304 stainless steel has the characteristics of corrosion resistance.
Features:
- Simple and compact appearance.
- NPT threaded connection for easy installation of pressure gauge and pipe.
- 304 stainless steel has the characteristics of corrosion resistance and high temperature resistance.
Specification:
- Model: RDDLZ-HNV-N04MF
- Port Size: 1/4 inch
- Structure: inner and outer thread
- Pressure: 0-6000 psi
- Temperature: -20 ℃ ~ + 260 ℃
- Medium: oil, water, steam
Dimension (Unit: mm)
Model | T | L | S | A | B |
HNV-N04MF | NPT 1/4" | 65 | 25 | 96 | 50 |
Tips: Functions of Globe Valve
- The globe valve, also known as the cut-off valve, is a forced seal valve. The valve plays an important role in cutting off and throttling the medium in the pipeline.
- Its sealing is by applying torque to the stem, the stem in the axial direction to the valve disc pressure, so that the valve disc sealing surface and seat sealing surface closely fit, prevent the medium along the gap between the sealing surface leakage.
