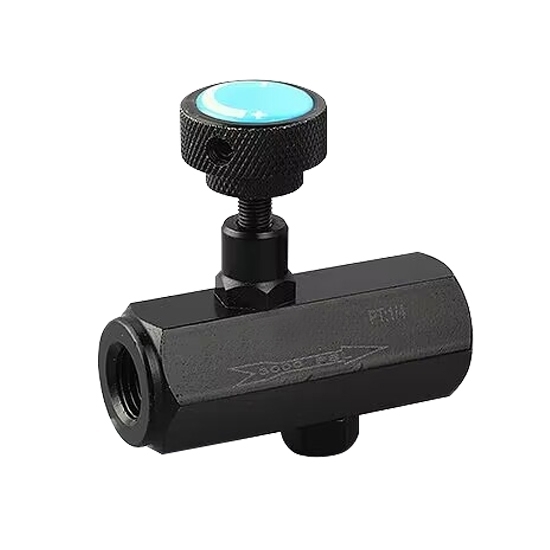

1/4" Hydraulic Flow Control Valve

0 reviews • Write a review

from

$44.36

Ex Tax: $44.36

Stock: In Stock
Model: RDDLZ-FCV-1/4
Weight: 1.00
SKU: RDDLZ-FCV-1/4

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This control valve cannot be used for drinking water.

1/4" hydraulic flow control valve can limit or adjust the speed and flow of fluid through the system. It is a one-way flow control valve, suitable for industrial machinery, construction equipment, agricultural machinery, aerospace, automotive engineering, etc.

Specifications

Model	RDDLZ-KC-02
Product Type	Throttle Valve
Drive Mode	Hydraulic
Application	Hydraulic Press
Applicable Medium	Hydraulic Oil
Connection Method	Thread
Proper Temperature	80°C
Maximum Pressure	250kg
Flow Direction	One Way
Highest Form	Liquid
Stressful Environment	High Pressure
Product Material	Cast Iron
Channel Position	Direct Type

Notes

Please keep the oil clean.
The (one-way) throttle valve has the advantages of simple structure, convenient adjustment, and low price, but because there is no pressure compensation, the flow stability is poor, and it is suitable for occasions where the load changes little or the speed control accuracy is not high.
Throttle valve should not be opened too small during use, otherwise, it is easy to block and cause the actuator to crawl.

Dimension (Unit: mm)

Model	PT	A	B	C	L	Flow	Weight
RDDLZ-KC-02	1/4"	38	24	7	62	12	0.23kg

Applications

Tips: What is a hydraulic flow control valve?

A hydraulic flow control valve is a type of flow control valve specifically designed for use in hydraulic systems. It is used to regulate and control the flow rate of hydraulic fluid in a hydraulic circuit.

Hydraulic systems utilize pressurized hydraulic fluid to transmit power and control the movement of various mechanical components, such as cylinders and motors. A hydraulic flow control valve allows for precise adjustment of the flow rate, which is essential in controlling the speed and direction of hydraulic actuators.
