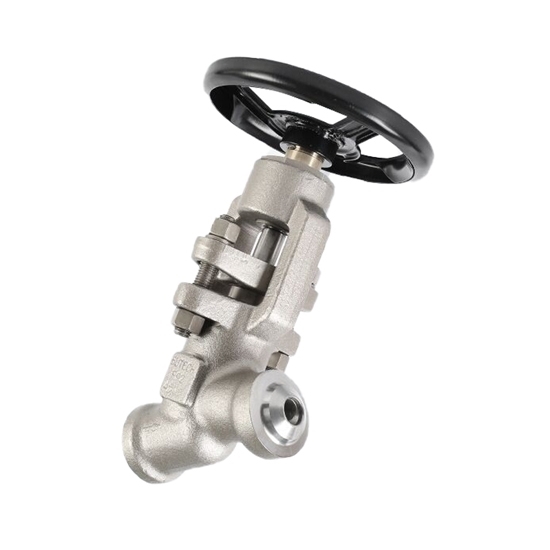

1/2" Y Pattern Globe Valve

0 reviews • Write a review

from

$571.73

Ex Tax: $571.73

Stock: In Stock
Model: RDDLZ-GV-12YGV
Weight: 1.00
SKU: RDDLZ-GV-12YGV

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Y pattern globe valve with high temperature vacuum welding stellite seat ring, for thermal distortion, it has good resistance. More economical with split design.

Features:

With thrust bearing and low torque.
Non-rotating stem with hardened and polished to reduce operating torque.
High temperature vacuum welding stellite seat ring.

Specification:

Port Size: 1/2 inch
Valve Body: 316L stainless steel
Working Pressure: 1500 LB
Working Temperature: 54 ℃ ~ 648 ℃
Connection Form: weld
SW Connection: ASME B16.11
Thread Connection: ASME 1.20.1
Medium: steam
Flow Direction: bidirectional flow
Net Weight: about 1kg

Structure:

Tips: Globe Valve Working Principle

The globe valve plays an important role in cutting off and throttling the medium in the pipeline where it is located. As a very important truncated valve, the globe valve is sealed by applying torque to the valve stem, and the valve stem exerts pressure on the valve disc in the axial direction, so that the sealing surface of the valve disc and the sealing surface of the seat are closely fitted to prevent the leakage of the medium along the gap between the sealing surface.
