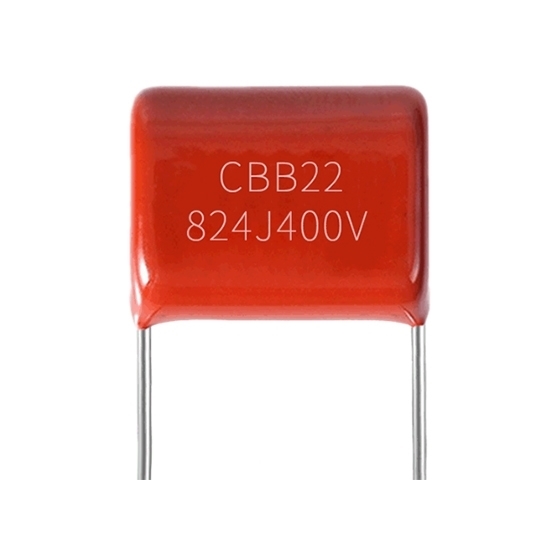

Small film capacitor for sale, capacity value 820nF, rated voltage 400V DC, metallized polypropylene capacitor with reliable insulation and flame retardant, life expectancy of more than 10 years.

Specification

• Model: RDDLZ-FC-CBB22-824J
• Capacity: 0.82μF
• Rated Voltage: 400V
• Tolerance: ±5%
• Lead Spacing: 15mm
• Installation Type: In-line type
• Dielectric Material: Polypropylene film
• Equivalent Series Resistance: 30000
• Operating Temperature: -40°C~105°C
• Dimension: 17 x 7.4 x 13.1mm
• Certificate: CE
• Weight: 0.0003kg

Features

• Film capacitor has excellent insulation and flame retardant properties and low internal temperature rise.
• High voltage withstands, can reach the rated voltage above the voltage withstand, strong resistance to high current shock.
• Polypropylene film capacitors, under normal operating conditions, can reach more than ten years of service life.
• Metallized polypropylene film capacitor is made of metallized polypropylene film with high temperature, and strong self-healing.
• RDDLZ CBB22 metal film capacitor adopts vacuum heat-setting process, which effectively excludes air and moisture, resulting in high insulation resistance and long life of metal film capacitor.
• The 0.82μF film capacitors are epoxy resin coated according to UL-94V0 standard and the flame retardant level meets the stringent standards set by UL and IEC.

Applications

Diaphragm capacitors are widely used in high frequency, DC and pulse circuits, and are suitable for color TV calibration circuits that require small size and excellent performance. RDDLZ diaphragm capacitors are designed for S calibration circuits of large-screen displays and color TVs, and are suitable for various high-frequency and high-current applications.

Tips: What is mylar capacitor?

Mylar capacitor, also known as polyester capacitor, is a high energy density film capacitor. Mylar capacitors use polyester as a solid dielectric material for energy storage. It can also classify non-electrolytic capacitors. Polyester dielectric has high dielectric properties, a property that makes polyester film capacitors relatively smaller than electrolytic capacitors.

The dielectric absorption of polyester ranges between 0.2% and 0.5%, and is usually highlighted by shallow dielectric losses. The commonly used dielectric material for polyester capacitors is usually polyethylene terephthalate, which has a low leakage current during energy storage.
