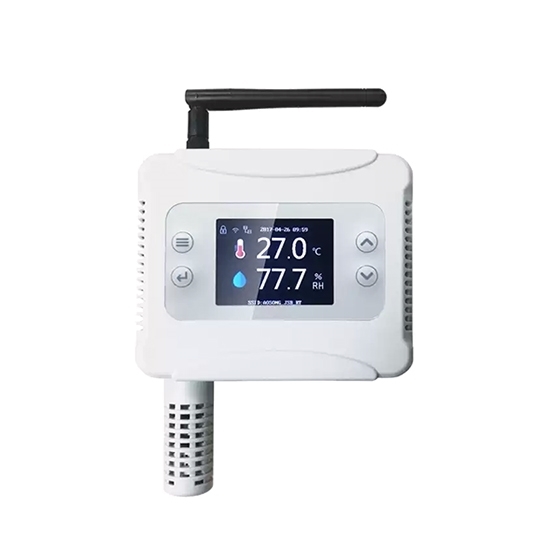

Wireless Temperature And Humidity Transmitter, WIFI Output

0 reviews • Write a review

from

$169.21

Ex Tax: $169.21

Stock: In Stock
Model: RDDLZ-TAHT-AW5145
Weight: 1.00
SKU: RDDLZ-TAHT-AW5145

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Temperature and humidity transmitter built-in capacitive type digital temperature and humidity sensor, 2.4G wireless WIFI output signal.

Application: Temperature and humidity transmitter is widely used in electronics, pharmaceuticals, food, storage, tobacco, textiles, weather and other industries.
Specification:

Model	RDDLZ-TAHT-AW5145
Weight	400g
Dimension (LWH)	146115.535.4mm
Output signal	2.4G wireless WIFI (IEEE802.11n)
Communication protocol	MODBUS TCP
Supply voltage	DC 9-36V/USB: 5V
Measuring range of relative humidity	0~99.9%RH
Measuring range of temperature	-20~+60℃
Accuracy of humidity	±3%RH
Accuracy of temperature	±0.5℃
Resolution	0.1℃/0.1%RH
Long-term stability	＜1%RH/year, ＜0.1℃/year
Current consumption	≤50mA (24V)
Sampling period	2s
Housing material	Engineering plastics
Working environment	Temperature: -40~80℃, humidity: 0~99.9% no condensation
Storage environment	Temperature: 0~60℃, humidity: ＜90%RH

Dimensional drawing:

Details

Tips: Greenhouse intelligent wireless temperature and humidity monitoring system
The greenhouse intelligent temperature and humidity monitoring system adopts high accuracy temperature and humidity sensor, can automatically control the internal environment of the greenhouse and avoid loss of production due to human factors. Automatic control will greatly increase output and quality, especially for higher grade economic crops, such as some expensive flowers or herbs. The monitoring system is composed of wireless temperature and humidity sensor and computer. According to the requirements of actual detection, wireless temperature and humidity sensors can be installed in the corresponding position. All the temperature and humidity sensors transmit data through the wireless network. The monitoring system can also integrate various sensors such as temperature, humidity, illumination, carbon dioxide concentration and soil environment according to actual needs, as well as the printer, thus realizing the browsing, analysis, comparison and storage of all kinds of data.
