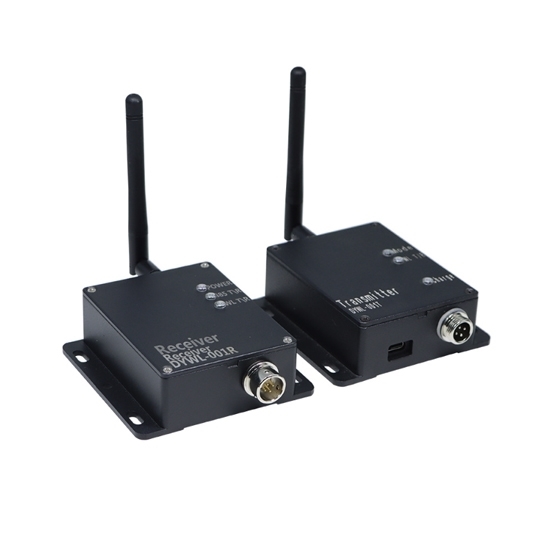

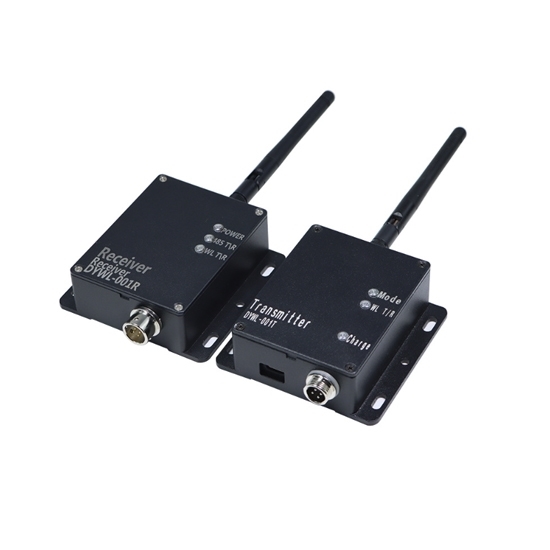

Wireless Load Cell Transmitter And Receiver

0 reviews • Write a review

from

$247.69

Ex Tax: $247.69

Stock: In Stock
Model: RDDLZ-LCTR-LW001
Weight: 1.00
SKU: RDDLZ-LCTR-LW001

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The load cell module consists of a receiver and transmitter with a wireless range of up to 100 meters. Powered by a 3200mAh battery, it offers 30 hours of use, 80Hz sampling at 0.1% accuracy, and IP65 protection, working in -25°C to 50°C. Ideal for industrial weighing and logistics.

After purchasing one RDDLZ load cell, you can buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Specification

Model	RDDLZ-DYLW-001
Battery Capacity	3200mAh lithium battery, approximately 30 hours of operation under 10Hz communication, charging time less than 4 hours
Sampling Rate	80Hz sampling rate, accuracy better than 0.1%, stability better than 0.1%
Wireless Communication Range	Over 100m in open areas
Operating Temperature Range	-25 to 50°C
Protection Level	IP65

Feature

Wireless Communication Range: Load cell module supports a direct communication range of over 100 meters, ensuring reliable data transmission in open areas.
High-Quality Material: Enclosed in an aluminum alloy casing, offering durability, a professional appearance, and resistance to wear and tear.
Battery Power Supply: Powered by lithium batteries, providing a safe and efficient energy source for prolonged operation.
Long Battery Life: A single charge supports 10 to 30 hours of continuous operation, suitable for various industrial and field applications.
Efficient Data Collection: Real-time capturing of peak and valley values, enabling precise analysis of load cell sensor status.
Environmental Adaptability: Designed to operate effectively in diverse environments, maintaining performance across different conditions.
IP65 Protection Level: Weighing module provides protection against dust and water, ensuring reliability in outdoor and industrial settings.

Display Instructions and Connections

Dimension (unit: mm)

Transmitter Dimension

Receiver Dimension

Application

Tips: What industries can benefit from load cell module?

This load cell module is widely applicable across various industries, including logistics, manufacturing, agriculture, and construction. In logistics, it can be used for real-time monitoring of cargo weights during transportation. In manufacturing, it ensures precision in raw material weighing. For agriculture, it helps in monitoring the weight of crops or livestock. In construction, it provides accurate measurements for materials like concrete or aggregates. The versatility and wireless functionality make it a valuable tool in numerous scenarios.
