Wireless Inclinometer Sensor, 2 Axis, Output Bluetooth

0 reviews • Write a review

from

$496.58

Ex Tax: $496.58

Stock: In Stock
Model: RDDLZ-IMS-HMI600
Weight: 1.00
SKU: RDDLZ-IMS-HMI600

Available Options

Wireless Transmission Module

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

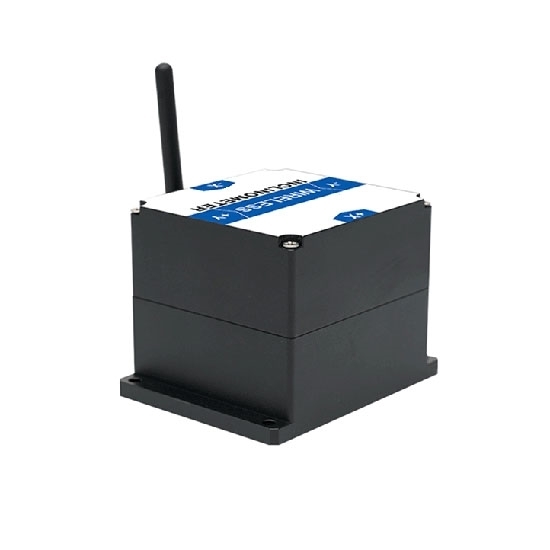

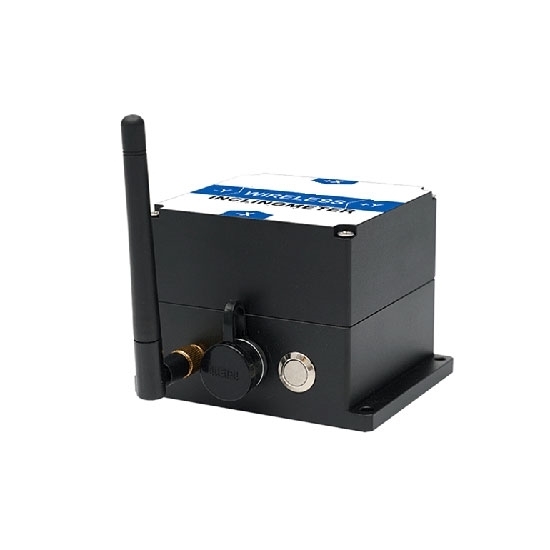

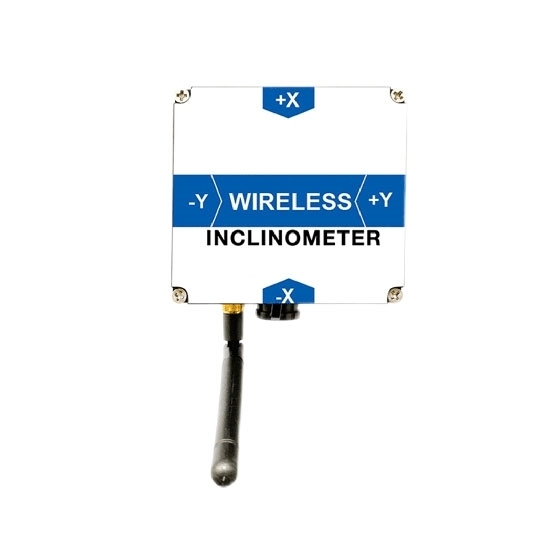

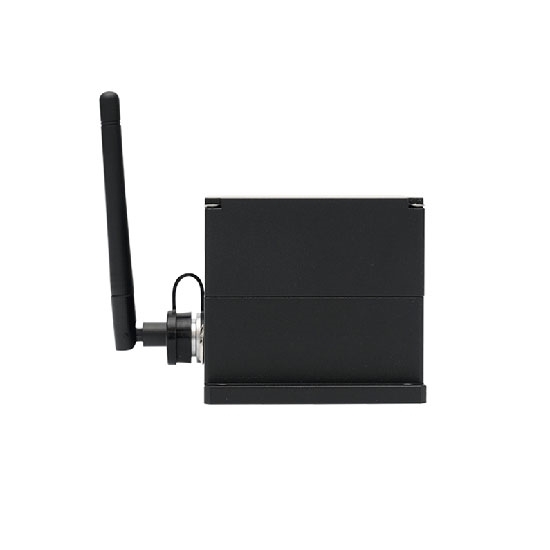

The wireless tilt sensor based on Bluetooth wireless transmission technology is for sale, powered by lithium battery, all internal circuits are optimized design. Support 2-axis measurement with ±90° measuring range, suitable for all kinds of accurate tilt measurement. Using industrial grade MCU, triple-proof PCB board, imported cables, wide temperature metal casing and other measures to improve the industrial grade of the product, good long-term stability and small zero drift, can automatically enter the low-power sleep mode, so as to get rid of the dependence on the use of the environment. It needs to be used with RDDLZ wireless transmission module to achieve the effect of wireless interoperability.

Specifications

Model	RDDLZ-ZB-HMI600
Measuring Range	Biaxial ±90°
Output Interface	Bluetooth
Match Wireless Transmission Module	RDDLZ-IMS-S2630
Measuring Axis	X, Y Axis
Zero Temperature Drift	±0.002°/°C
Temperature Coefficient of Sensitivity	≤150ppm/°C
Frequency Response	DC response 100Hz
Resolution	0.002°/°C
Accuracy	0.01°
Long Term Stability	<0.015°
Power-on Start-up Time	0.2s
Response Time	0.05s
Radio Frequency	2460MHZ (default), 2405~2480 adjustable
Transmission Distance	1.6KM
Built-in Battery Capacity	6000mAh
Average Operating Time	≥55000 hours/times
Shock Resistance	20000g,0.5ms,3 times/axis
Vibration Resistance	10grms, 10~1000Hz
Insulation Resistance	≥100MΩ
Waterproof Grade	IP67
Supply Voltage	4.7-5.5V
Current Draw	Working mode: 35mA
Current Draw	Sleep mode: 5mA
Built-in Battery Capacity	5000mAh
Operating Temperature	-40°C~+85°C
Storage Temperature	-55°C~+125°C
Connector	Waterproof aviation socket
Housing Material	Aluminum alloy with matte oxidation
Mounting	Four M4 screws
Weight	460g (without box)

Note: This product is to be used with a wireless transmission module!

Dimension (unit: mm)

Installation Method

Installation Precautions

Please install the inclinometer sensor according to the correct method, incorrect installation will lead to measurement errors, especially pay attention to a "surface" and "line".
The mounting surface of the inclinometer sensor and the measured surface must be fixed tightly, flat and stable, if the mounting surface is uneven, it is easy to cause the inclination sensor to measure the angle error.
RDDLZ wireless inclinometer sensor axis and the measured axis must be parallel, the two axes as far as possible do not produce angle.

Wiring Diagram

Electrical Connection	Line Color Function
	1	2	3	4	5
	Red	White	Black	Green	Yellow
Bluetooth	VCC	NC	GND	RS232RX or RS485 (B, D-)	RS232 TX or RS485 (A, D+)

Note: The NC wire color function is a reserved wire, which is not connected by the user during use.

Application

Tips: Wireless inclinometer sensor parameter nomenclature

Resolution: It refers to the smallest change of the measured value that the inclination sensor can detect and distinguish in the measuring range.
Precision: Absolute accuracy refers to the sensor's absolute linearity, repeatability, hysteresis, zero deviation, and cross-axis error under normal temperature conditions.
Comprehensive error.
Long-term Stability: Long-term stability refers to the wireless inclination sensor at room temperature, after a year of long-term work under the maximum value and the minimum value of the deviation.
Response Time: Response time is the time it takes for the sensor output to reach the standard value when the inclination sensor changes angle once.
