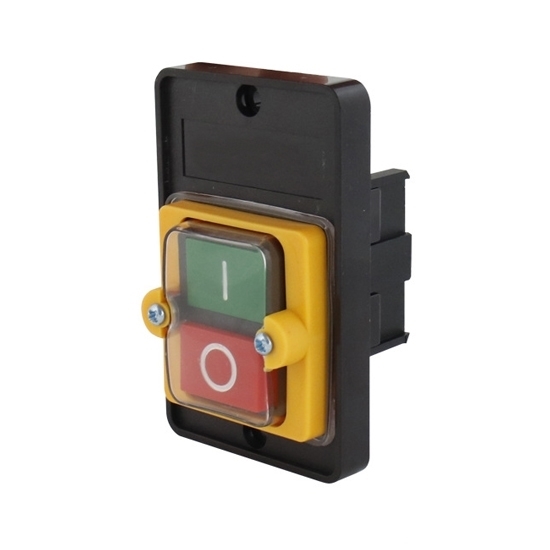

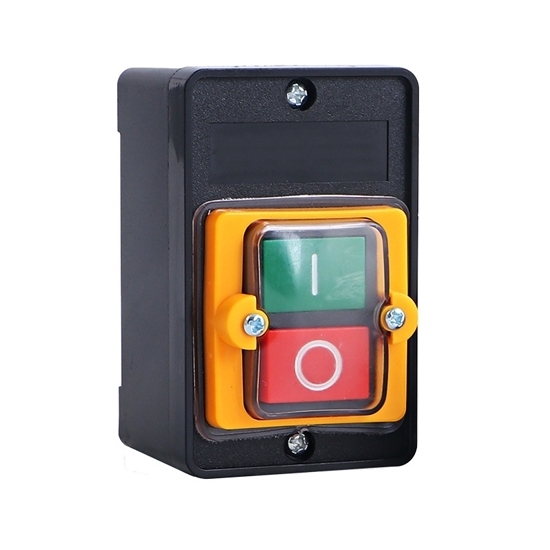

Waterproof on/off push button switch with momentary or latching operation mode is a type of switch designed for environments where moisture, water, or liquids are present. This start stop push button switch is used in industrial automation, marine applications, outdoor equipment, and other harsh environments.

Specification

• Model: RDDLZ-KAO-5M/H
• Operation Mode (Optional): Momentary or Latching
• Shell Material: Flame Retardant Material
• Contact Material: Copper Contact
• Contact Type: 3NO+3NC
• Maximum Current: 10A
• Operation Voltage: 220V/ 380V
• Bottom Hole Spacing: 35*68 φM5
• Mechanical life: 1 Million Times
• Electrical Life: 500,000 Times

Note:

1. Press the green button, the button is locked, and the switch is turned on.
2. Press the red button, the green button pops up, and the switch is turned off.

Dimension

Tips: Waterproof push button switch applications

Waterproof push button switches are essential in environments exposed to moisture, dust, or harsh conditions. These switches find applications in various industries such as marine, automotive, food processing, and industrial automation. In marine environments, waterproof switches are used for controlling equipment on boats or ships, ensuring reliability despite constant exposure to water. In automotive applications, they control lights, horns, or other electrical systems in vehicles, withstanding rain or humidity.

In industrial settings, waterproof push buttons are crucial for machines operating in wet or outdoor environments, such as in wastewater treatment plants or factories with heavy wash-downs. In food processing, these switches help maintain hygiene by withstanding regular cleaning without compromising performance. They are also used in outdoor kiosks, vending machines, and construction equipment where durability and resistance to elements are paramount. Their robust design ensures long-term reliability in challenging conditions while enhancing safety and functionality.
