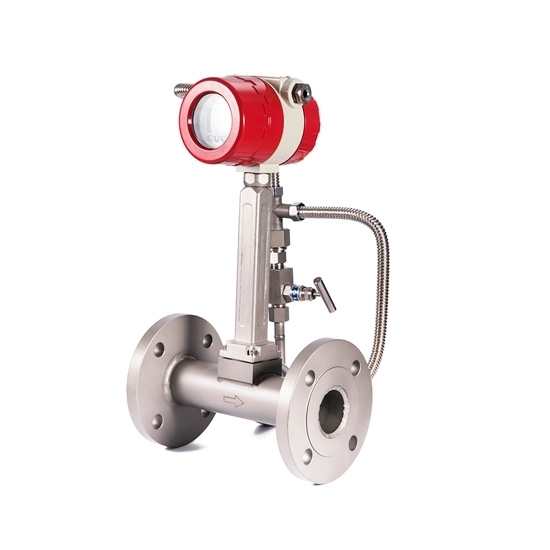

Vortex Flow Meter For Liquid/Gas/Steam, DN15-DN300

0 reviews • Write a review

from

$957.85

Ex Tax: $957.85

Stock: In Stock
Model: RDDLZ-FLOW-VOR
Weight: 1.00
SKU: RDDLZ-FLOW-VOR

Available Options

Line Size (mm)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cost-effective yet reliable vortex flow meters are suitable for pipe sizes from DN15, DN20, DN25, DN32, DN40 to DN300, applicable for liquids (water, high temperature water, chemical liquid, gasoline, etc.), gases (natural gas, compressed air, etc.), and saturated, superheated steam.

Specification

Model	RDDLZ-LUGB
Measuring Media	Liquids, gases, steam
Line Size *	DN15-DN300
Accuracy	Gas (uncompensated): DN15-DN25 ±1.5%, DN32-DN200 ±1.0%, DN250-DN300 ±1.5% Liquid (uncompensated)：DN15-DN300 ±1.0% With integrated temperature and pressure compensation: DN25-DN300 ±1.5%
Pressure Resistance Class	For Clamp connection: DN15-DN25 4.0Mpa, DN65-DN100 2.5Mpa, Over DN125 1.6Mpa For Flange connection: DN15-DN50 2.5Mpa, DN65-DN300 1.6Mpa
Range Ratio	1:8~1:30
Medium Temperature	-40°C ~ +260°C (for higher temperatures contact us)
Power Supply	24V DC±5%, Li-ion battery (3.6V DC)
Compensation Mode *	Temperature compensation, pressure compensation, or integrated temperature and pressure compensation (Optional)
Display *	LCD display (Optional)
Output Signal *	Frequency, or 4-20mA
Communication Interface *	RS485 (Optional)

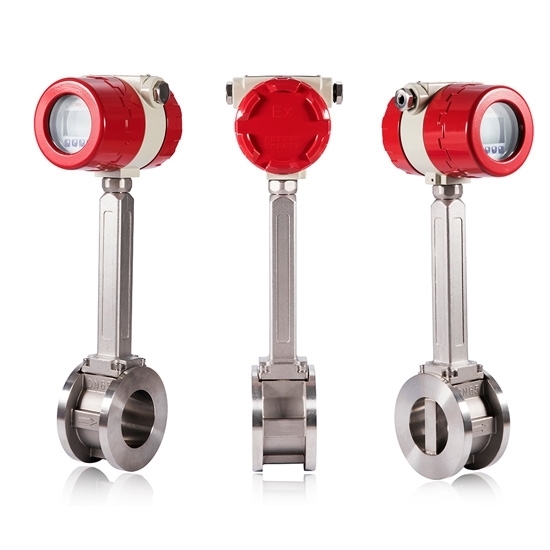

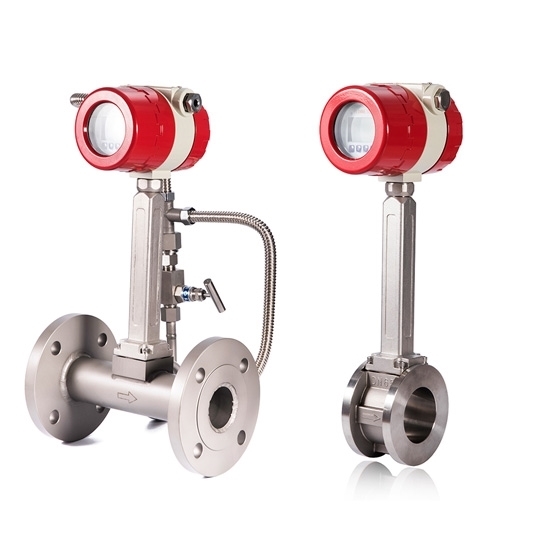

Connection *	Clamp, or Flange connection
Body Material	316 stainless steel
Protection Class	IP65
Ambient Temperature	-10v ~ +60°C

Flow Range

Diameter Nominal (mm)	Liquid		Gas
Diameter Nominal (mm)	Flow Range (m³/h)	Frequency Range (Hz)	Flow Range (m³/h)	Frequency Range (Hz)
15	0.3~5	35~450	4~20	300~1600
20	0.6~10	29~380	6~30	230~1200
25	1.2~16	25~320	8~55	170~1100
32	1.8~20	18~200	10~120	100~1180
40	2~40	10~190	27~205	130~1040
50	3~60	8~150	35~380	94~920
65	4~85	6~120	60~640	90~910
80	6.5~130	4.1~82	86~1100	55~690
100	15~220	4.7~69	133~1700	42~536
125	20~350	3.2~57	150~2000	38~475
150	30~450	2.8~43	347~4000	33~380
200	45~800	2~31	560~8000	22~315
250	65~1250	1.5~25	890~11000	18~221
300	95~2000	1.2~24	1360~18000	16~213

Feature

Newly Upgraded Intelligent Meter Head: The fourth generation dot-matrix LCD can display instantaneous/accumulative flow rate, medium temperature/pressure on the same screen.
Fully Automatic SMT Packaging Technology: The use of high-quality analog chip components surface mount technology, effectively improve product capacity and reduce the defective rate of the flowmeter.
High-strength Impact Resistant Parts: The vortex generator body has been polished for many times to resist pressure, and the one-piece casting makes the degree of impact resistance stronger (do not carry out water hammer impact).
Professional Fish Scale Welding Technology: Welded by senior craftsmen by hand, presenting a fish scale welding pattern, the body is really super shock-resistant, to ensure that the meter is stable to use.

Dimension (unit: mm)

Size (mm)	H1^a	H1^b	H1^c	D1	L1	H2^a	H2^b	H2^c	L2
DN15	525	445	355	45	65	540	460	370	170
DN20	531	451	361	58	65	545	465	375	170
DN25	531	451	361	58	65	550	470	380	250
DN32	531	451	361	58	65	563	483	393	250
DN40	529	449	359	85	70	578	498	408	250
DN50	541	461	371	99	70	590	510	420	250
DN65	558	478	388	118	70	612	532	442	250
DN80	573	493	403	132	70	625	545	455	280
DN100	595	515	425	156	70	644	564	474	300
DN125	621	541	451	184	70	674	594	504	350
DN150	647	567	477	211	70	703	623	533	350
DN200	705	625	535	266	98	757	677	587	400
DN250	757	677	587	319	114	802	730	640	450
DN300	808	728	638	370	130	860	780	690	500

Note: This vortex flowmeter has 3 types of pillars a, b, c, with different sizes. You can check the height of the entire meter corresponding to the H superscript in the table above.
For the height of vortex flow meter with 150℃ sensor without compensation, see H superscript “c”; for the vortex flow meter with 150℃ sensor with compensation, see H superscript “b”; for the vortex flow meter with 260℃ sensor, see H superscript “b”; for the vortex flow meter with 300℃ sensor, see H superscript “a”.

Wiring Diagram

Tips: What is a vortex flow meter?

A vortex flow meter is a flow measurement instrument based on the principle of the vortex effect. It works by installing a disturbing fluid (usually a cross-sectional protrusion) in a pipe, which creates regular vortices behind the fluid as it passes through. The frequency of the vortex is directly proportional to the fluid flow rate, so the flow rate can be calculated by measuring the vortex frequency.

Vortex flow meters are used in various industrial fields, especially in chemical, power, oil and gas industries. It is capable of measuring the flow of various fluids, including liquids, gases and steam. It is particularly suited to fluids that have a steady flow rate and do not settle easily or with small variations. Common application scenarios include measurement of vapor flow in pipelines, monitoring of liquid flow in chemical reactions, and industrial gas flow control.
