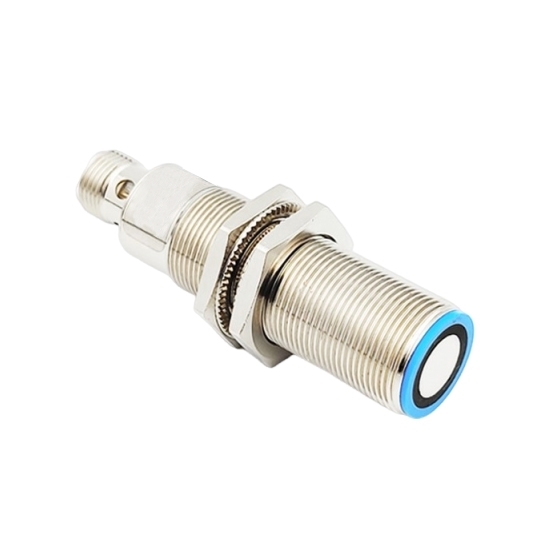

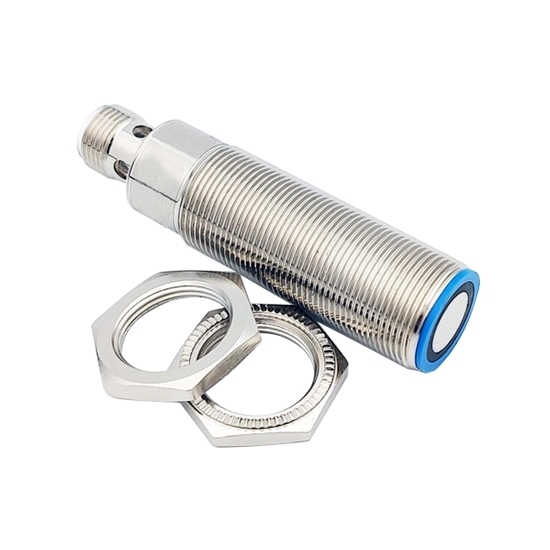

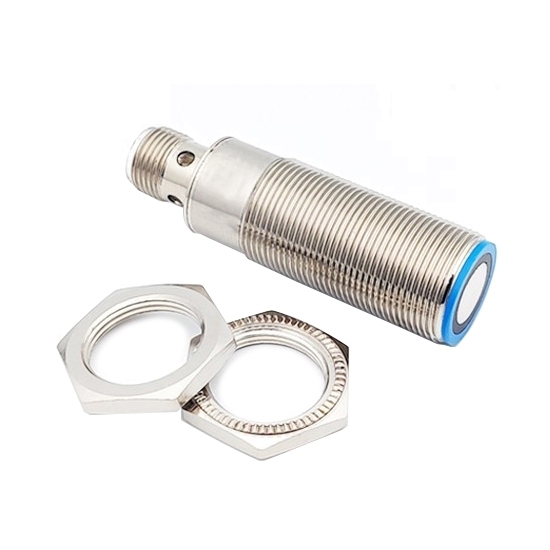

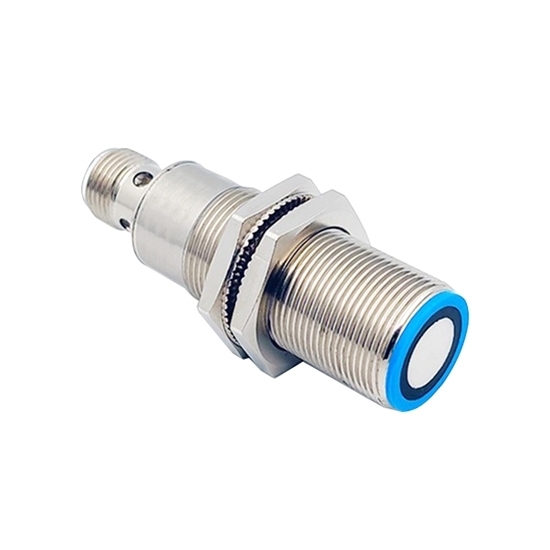

Ultrasonic proximity sensor (analog output type) has short-circuit protection and reverse connection protection, which is safer. With a protection level of IP67 and an operating temperature range of -25℃ to +70℃, it can be used in complex or harsh environments and is suitable for automation applications that continuously monitor the position or distance of objects.

Specification

Dimension (unit: mm)

Wiring diagram

Applications

Tips: Application advantages of ultrasonic proximity sensors

Ultrasonic proximity sensors have excellent material adaptability and detection stability, and are almost not affected by color, transparency or surface reflection. They are suitable for a variety of complex application environments, including:

• Liquid detection: It can accurately detect various liquids, such as pure water, oils and various chemical solvents.
• Color insensitivity: Easily identify inks, inks and fiber fabrics of different colors, and color changes do not affect the detection effect.
• Reflective material detection: It can also detect highly reflective materials such as gold foil and silver foil reliably, avoiding common misjudgments of photoelectric sensors.
• Transparent material detection: It is suitable for detecting transparent materials such as glass bottles, glass plates, transparent PP/PE/PET films, etc.
• Bulk materials and level control: It can be used for automatic level detection and control of grains, granular materials, etc. It can also be applied to powdered materials: such as coal, wood chips, cement, etc., and can also achieve stable non-contact level monitoring.
