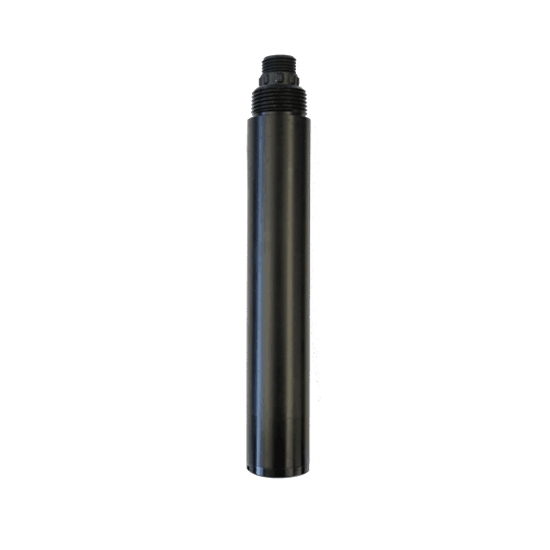

Turbidity Sensor For Water Quality, 0~1000NTU

0 reviews • Write a review

from

$1,016.59

Ex Tax: $1,016.59

Stock: In Stock
Model: RDDLZ-WQS-TS
Weight: 1.00
SKU: RDDLZ-WQS-TS

Available Options

Short Description

Measuring Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The turbidity sensor measures turbidity with high accuracy (±5% or ±3 NTU) using a 90° scattered light method and built-in temperature compensation. It features fast response (<30s), RS485 communication, and IP68 protection for use in harsh environments up to 20 meters deep. Ideal for water treatment, environmental monitoring, and aquaculture, it offers easy installation and low power consumption (0.2W at 12V).

Specification

Model	RDDLZ-ZS-206A
Measurement Principle	Scattered Light Method
Measurement Range/Resolution	0~20.00 NTU, 0.01 NTU/0.1°C
	0~100.00 NTU, 0.1 NTU/0.1°C
	0~1000.00 NTU, 1 NTU/0.1°C
Product Accuracy	±5% or ±3 NTU (0~1000.00 NTU)
	±3% or ±2 NTU (0~100.00 NTU)
	±3% or ±1.5 NTU (0~20.00 NTU) or ±0.3°C
Response Time (T90)	<30 seconds
Minimum Detection Limit	0.01 NTU (0~20 NTU) or 0.3 NTU
Calibration Method	Two-Point Calibration
Temperature Compensation	Automatic (Pt1000)
Output Signal	RS485 (Modbus/RTU)
Operating Conditions	0~50°C, <0.2MPa
Storage Conditions	-5~65°C
Housing Material	POM, ABS
Installation Method	Immersion Installation, 3/4 NPT Pipe Thread
Cable Length	5 meters (customizable)
Power Consumption	0.2W @ 12V
Power Supply	12~24VDC
Protection Rating	IP68

Feature

Advanced Measurement Principle: Utilizes a 90° scattered light method with a built-in temperature sensor for accurate turbidity and temperature measurements.
RS485 Communication with Modbus/RTU Protocol: Supports seamless integration into monitoring systems with reliable and standardized communication.
Robust Optical Structure: Features enhanced resistance to interference from ambient light, ensuring stable and accurate readings.
Infrared LED Light Source: Equipped with a stable infrared LED, providing consistent performance and long service life.
IP68 Protection Rating: Fully waterproof design, capable of operating at depths of up to 20 meters, making it suitable for challenging water environments.
Convenience and Reliability: Designed for easy installation, fast setup, stable operation, and minimal maintenance requirements.

Dimension (Unit: mm)

Note: The sensor connector is a male M16-5 pole waterproof connector.

Installation Method

A	B	C
Sidewall Mount	Top Flange Mount	Pipe Turning Mount
D	E	F
Pipe Turning Mount	Flow-through Mount	Submersible Mount

Application

Tips: How does the 90° scattered light method work in the turbidity sensor?

The 90° scattered light method used in turbidity sensors measures suspended particles in water by emitting a light beam, typically from an infrared LED, into the water. Suspended particles scatter the light, and a photodetector positioned at a 90° angle captures the scattered light, minimizing interference from the direct light source. The intensity of the scattered light is proportional to the turbidity, and the sensor processes this signal into a turbidity measurement, expressed in NTU. A built-in temperature sensor (Pt1000) compensates for temperature effects, ensuring accurate and consistent results. This method is effective due to its sensitivity to small particles, reduced interference, and reliability, making it ideal for applications in water quality monitoring and treatment.
