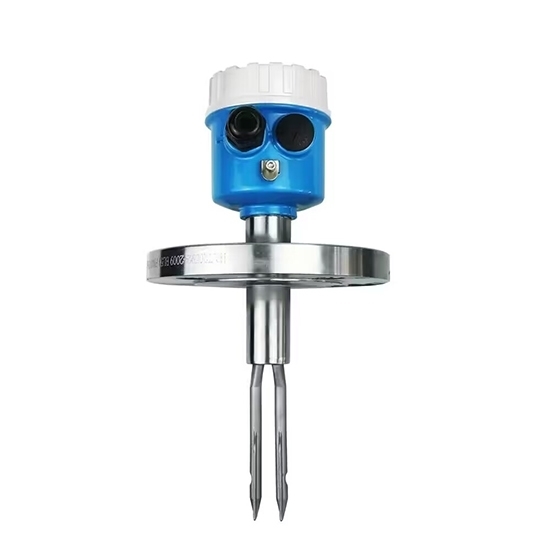

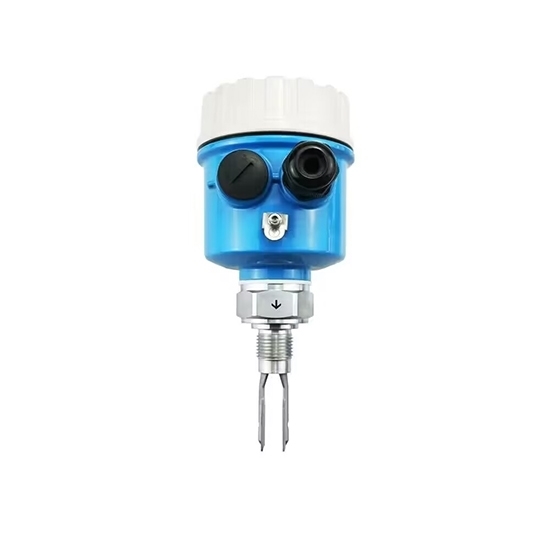

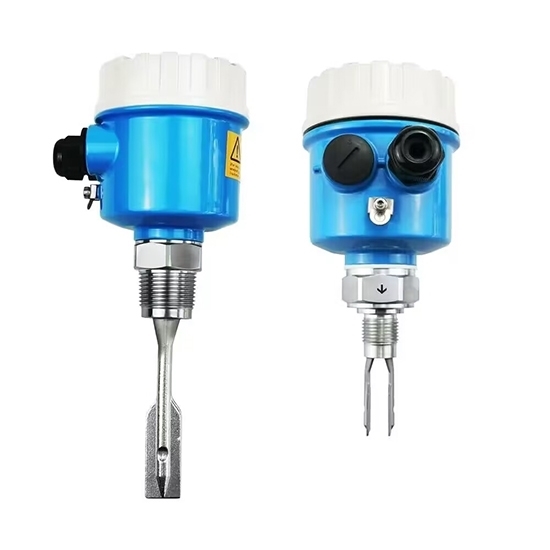

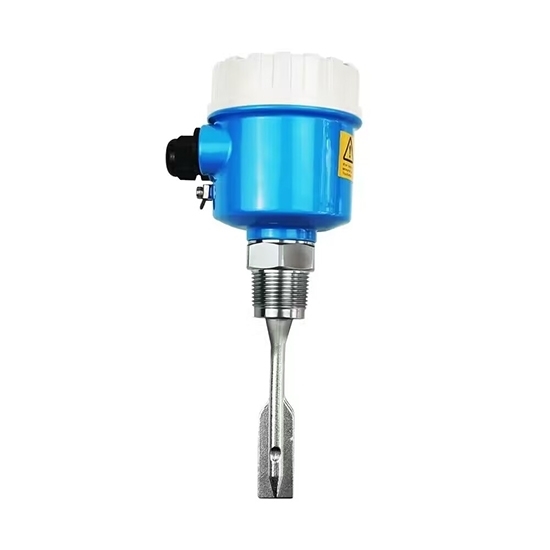

Tuning Fork Level Switch, Stainless Steel

0 reviews • Write a review

from

$235.56

Ex Tax: $235.56

Stock: In Stock
Model: RDDLZ-TFLS-501
Weight: 1.00
SKU: RDDLZ-TFLS-501

Available Options

Input Voltage

Thread

Install Function

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price level switch with multi-function panel, aluminum alloy shell and the protection grade is IP67. Tuning fork type level switch is widely used in chemical surveying, power plant surveying, reservoir surveying and medicine tank surveying. The tuning fork level switch is easy to install and operate and has a long service life.

Specification

Model		RDDLZ-TFLS-501A	RDDLZ-TFLS-501B	RDDLZ-TFLS-501C	RDDLZ-TFLS-501F
Install function		Standard type	High temperature type	Extended type	Flange type
Techanical characteristic	Measuring medium	Liquid/Powder
	Oscillation frequency	350 Hz
	Precision	±5 mm
	Measuring length	100mm (default) For other lengths (100~3000mm), please contact us.
	Ambient temperature	-40~80℃
	Repeatability	±3 mm
	Instructions	LED
Electrical characteristics	Voltage	DC24V/ AC220V
	Power	1 W
	Output signal	Relay Dry Contact (DPDT)
	Maximum load	8A
Mechanical characteristics	Pressure range	-98kPa~5MPa
	Operating temperature	-40~1500℃
	Shell material	Aluminum alloy
	Sensor material	Stainless Steel 316
	Connector material	Stainless Steel 304
	Protection grade	IP67
	Electrical interface	M20*1.5/ 1''G
	Thread	g1" thread/ 1" NPT

Dimension (mm)

Wiring diagram

Power indicator light
Action status indicator light
Upper and lower alarm setting switches
Sensitivity regulation
Action release delay adjustment
Reset button

Details

Tips: Working Principle of the Tuning Fork Level Switch.

The working principle of the tuning fork level switch is to make the tuning fork vibrate at a certain resonance frequency through a pair of piezoelectric crystals installed on the tuning fork base. When the tuning fork of the tuning fork level switch is in contact with the measured medium, the frequency and amplitude of the tuning fork will change. These changes of the tuning fork level switch are measured, processed and converted into a switch signal by the intelligent circuit.
