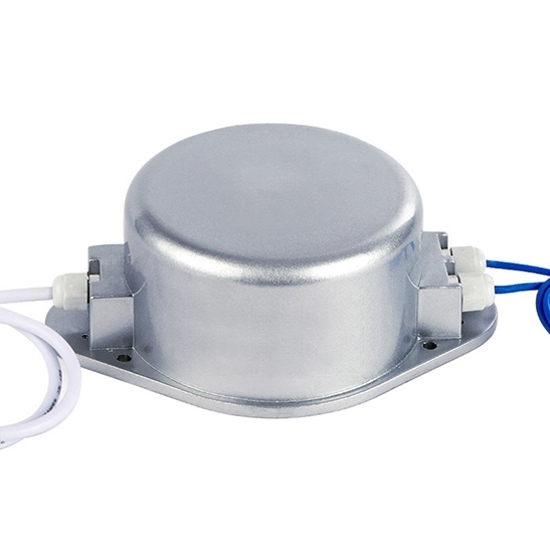

Toroidal Transformer, IP67, 220V To 12V/24V, 800W/1000W

0 reviews • Write a review

from

$315.68

Ex Tax: $315.68

Stock: In Stock
Model: RDDLZ-T-C1200VA
Weight: 1.00
SKU: RDDLZ-T-C1200VA

Available Options

Short Description

Rated Power

Primary Voltage (AC)

Secondary Voltage (AC)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The toroidal transformer provides both 12V and 24V output options and has 600W, 800W, 1000W and 1200W rated power, providing ample power for a variety of high-demand applications. This toroidal power transformer is engineered to deliver dependable power conversion with maximum efficiency and protection. Featuring an IP67 rating, this transformer is designed to be dust-tight and capable of withstanding water immersion, making it ideal for challenging indoor and outdoor environments.

Features

The input line of this waterproof transformer is cold-resistant, UV-resistant, and anti-aging. The plug is detachable for easy power-on testing.
Toroidal power transformer has added an LED indicator light, which can easily identify the working status, making work installation and maintenance more convenient.
Waterproof toroidal transformer is specially selected for thermal conductive resin and fully encapsulated with epoxy resin.
Toroidal transforme has a built-in all-copper toroidal transformer with sufficient output power, standard voltage, and stable operation.
The aluminum shell of the transformer dissipates heat, and heat dissipation in outdoor high-temperature environments is the key. The quality of heat dissipation directly affects the lifespan.

Specifications

Model	RDDLZ-T-C1200VA
Primary Voltage	220V
Secondary Voltage	12V/24V
Rated Power	600VA/800VA//1000VA/1200VA (W)
Frequency	50Hz/60Hz
Power Phases	Single phase
Moisture Proof Method	Encapsulated type
Cooling Method	Natural cooling
Cooling Type	Dry type
Frequency Characteristics	Low frequency
Winding Type	Double winding
Core Type	Ring type
Core Shape	Ring type
Appearance Structure	Horizontal type
Efficiency (η)	≥90%
Hole Distance	158mm*70mm
Product Volume	235mm165mm80mm
Waterproof Grade	lP67 (CE+ Inspection Report)
Weight	600VA (9kg), 800VA (10kg), 1000VA (11kg), 1200VA (12kg)
Status Indicator	LED working indicator
Epoxy Potting	Thermal conductive resin potting
Protective Device	Temperature & Overload protection
Waterproof Housing	Round aluminum housing
Input Line	20.75mm20.9m VDE
Output Line	3321-14#0.3m blue-blue

Epoxy Potting

Production Process

Tips: Maximizing toroidal transformer performance

To minimize electromagnetic interference (EMI), consider placing a magnetic shield around the toroidal transformer. This is particularly useful in sensitive electronic applications.
Toroidal transformers can have high inrush currents at startup. Use an inrush current limiter or soft-start circuit to protect the transformer and connected devices.
For applications involving audio or precision electronics, be mindful of harmonic distortion. Toroidal power transformers typically have low harmonic distortion, but additional filtering may be needed for ultra-sensitive equipment.
Implement a thermal cut-off switch or temperature sensor to monitor and control the transformer's operating temperature, ensuring it doesn't exceed safe limits.
Use isolation mounts or grommets to physically separate the power transformer from sensitive components, reducing the transmission of vibrations.
