Tilt Sensor, Relay Output, Single Axis/ Dual Axis, ±15°

0 reviews • Write a review

from

$353.33

Ex Tax: $353.33

Stock: In Stock
Model: RDDLZ-LCA141
Weight: 1.00
SKU: RDDLZ-LCA141

Available Options

Short Description

Output

Measurement Axis

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

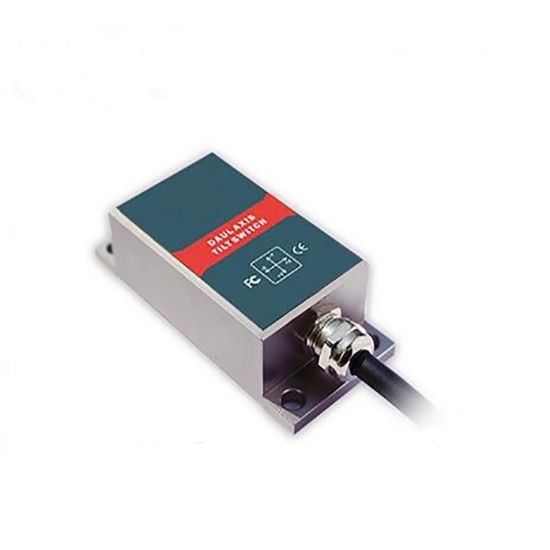

Factory price inclinometer sensor for sale, comes with relay NO/NC output, measuring range ±15° absolute accuracy 0.1°, power on time 0.1s, and quick response time 0.2s. High precision tilt sensor is widely used for application like underground drilling rig attitude navigation, geological equipment tilt detection, railway locomotive monitoring, oil drilling equipment.

Specification

Model	RDDLZ-LCA141
Alarm Angle Value	0-55°
Power supply	9-36V DC
Max. alarm output current	1000mA
Working current	40mA
Measuring range	±15°
Measuring axis	X, Y
Resolution	0.01°
Absolute accuracy	0.05°
Long-term stability	0.05
Zero temp. coeffiecient	-40~85℃±0.006℃
Temp. sensitivity coefficient	-40~85℃ ≤ 100 ppm/℃
Power on time	0.1s
Response time	0.2s
MTBF	≥50000h per time
IR	≥100M
Impact resistance	100g@11ms, 3 times/ axis (half sinusoid)
Anti-shock	10grms, 10-1000Hz
Waterproof	IP67
Cable	1m, shield cable: 4*0.04mm²
Certificate	CE, FCC, RoHS
Warranty	12 months

Dimension (Unit=mm)

Tilt Sensor Installation Direction Diagram

The installation must guarantee the inclinometer sensor bottom is parallel to measured face，and reduce the influence of dynamic and acceleration to the tilt sensor. This inclinometer sensor can be installed horizontally or mounted vertically, for installation please refer to the following scheme.

Tips: Working Principle of Tilt Sensor

The measurement range is ±15°. When the inclination value is greater than the preset inclination threshold, a switch signal (output voltage=supply voltage) will be output to drive the solenoid valve. Normally, it does not alarm for forward and reverse. The alarm number is output when the alarm threshold is exceeded; the alarm signal is output in the reverse direction, and the alarm is stopped when the alarm threshold is exceeded; the alarm angle can be set by the inclination switch, when the safe inclination value is exceeded, the switch signal will be output to shut down the system, and it can also be driven The alarm is easy to install, has strong resistance to external electromagnetic interference, and can withstand large shocks and vibrations.
