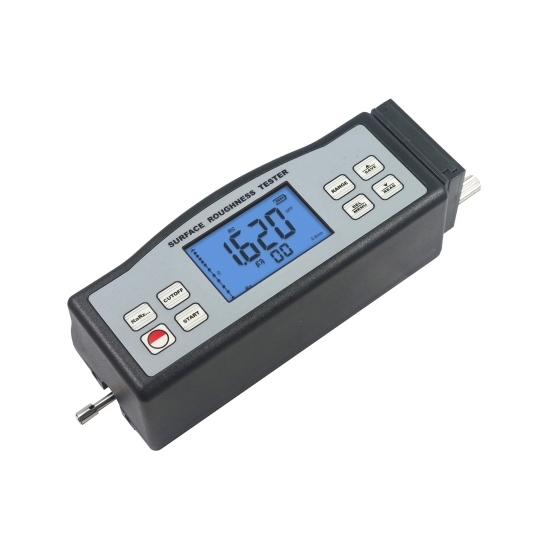

Surface Roughness Tester, 5μm Probe Pin

0 reviews • Write a review

from

$1,579.62

Ex Tax: $1,579.62

Stock: In Stock
Model: RDDLZ-SRT-6210
Weight: 1.00
SKU: RDDLZ-SRT-6210

Available Options

Short Description

Optional Accessories

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

A surface roughness tester, also known as a profilometer or surface roughness gauge, is a device used to measure the texture or roughness of a surface. It provides quantitative data about the surface irregularities, which can affect the quality, functionality, and performance of a wide range of materials and products.

Features:

Small in size, light in weight and easy to use.
Highly sophisticated inductance sensor.
Built-in lithium ion rechargeable battery and control circuit with high capacity.
Use RS-232 data output to connect with PC and provide bluetooth data output choice.
It can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.

Specification:

Model		RDDLZ-SRT6210
Parameter		Ra, Rq, Rz, Rt
Measuring Range		Ra, Rq: 0.005~16.00 μm / 0.020~629.9 μinch Rz, Rt: 0.020~160.0 μm / 0.078~6299 μinch
Accuracy		≤±10%
Fluctuation of Display Value		≤6%
Resolution		0.001 / 0.01 / 0.1
Sensor	Radius of Probe Pin	5 μm
	Material of Probe Pin	diamond
	Measurement Force of Probe	4 mN (0.4 gf)
	Probe Angle	90°
	Vertical Radius of Guiding Head	48 mm
	Maximum Driving Stroke	17.5 mm / 0.7 inch
	Cutoff length (l)	0.25 mm, 0.8 mm, 2.5 mm
Driving Speed	Sampling	when length = 0.25 mm, Vt = 0.135 mm/s
		when length = 0.8 mm, Vt = 0.5 mm/s
		when length = 2.5 mm, Vt = 1 mm/s
	Returning	Vt = 1 mm/s
Profile Digital Filter		RC, PC-RC, GAUSS, D-P
Evaluation Length		1~5 L optional
Data Memorize		7 groups
Operating Conditions		humidity:＜80%RH
Power Supply		built-in rechargeable li-ion battery
Standard		GB/T6062, ISO4287, DIN4768, JIS B, ANSI46.1
Dimension		140x52x48 mm
Net Weight		420g

Structure:

Application:

Tips: How to Maintain Surface Roughness Tester?

Cleanliness. Regularly clean the tester using a soft cloth or brush to remove any dust, debris, or contaminants that may affect the accuracy of the measurements. Ensure the measuring surfaces are free from dirt or oil.
Calibration. Perform regular calibration according to the manufacturer's instructions. This ensures accurate and consistent measurements. Use traceable calibration standards and adjust the tester if necessary.
Storage. Store the surface roughness tester in a clean and dry environment, away from extreme temperatures and humidity. Use the provided protective case or cover to prevent damage during storage.
Handling. Handle the tester with care, avoiding excessive force or impact that could damage its sensitive components.
Regular Inspection. Periodically inspect the tester for any signs of wear or damage, such as scratches, cracks, or loose parts.
