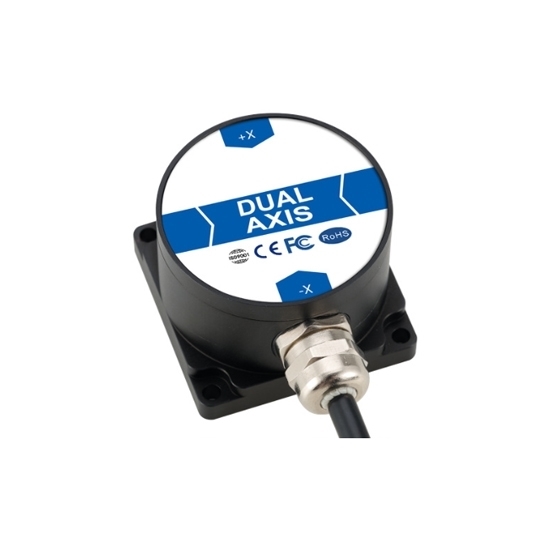

MEMS Inclinometer Sensor, Analog Output, 4-20mA/ 0-10V

0 reviews • Write a review

from

$196.76

Ex Tax: $196.76

Stock: In Stock
Model: RDDLZ-IMS-LVT
Weight: 1.00
SKU: RDDLZ-IMS-LVT

Available Options

Short Description

Output Signal

Measuring Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Analog output MEMS inclinometer sensor for sale, high-precision solutions (0~5V/ 0~4.5V/ 0~10V/ 0~20mA/ 0~24mA/ 4-20mA output signals can be selected), with excellent long-term stability (≤ 0.3 °). The tilt sensor has excellent impact resistance (2600g), IP67 waterproof rating, wide temperature operating range (-40℃ to +85℃) and rugged aluminum alloy housing, equipped with standard 1.5m abrasion-resistant cable for easy installation.

Specifications

Model	RDDLZ-LVT410T	RDDLZ-LVT418T
Measuring Range	±10°/±30°/±60°/±90° (optional)
Output Signal	0~5V/0~4.5V/0~10V (optional)	0~20mA/0~24mA/4-20mA (optional)
Measuring Axis	X axis
Zero Temperature Drift	±0.05°/°C
Sensitivity Temperature Coefficient	≤200ppm/°C
Zero Offset	0~5V output -2.5V	0~20mA output 10mA
	0~10V output -5V	0~24mA output 12mA
	/	4-20mA output 12mA
Frequency Response	DC response 100Hz
Resolution	Normal width 5Hz, 0.05°
Accuracy	0.25°
Long Term Stability	≤0.3°
Power-up Time	0.2s
Response Time	0.01s
Average Operating Time	≥55000 hours/trip
Shock Resistance	2600g, 0.5ms,3 times/axis
Vibration Resistance	10grms, 10~1000Hz
Insulation Resistance	≥100MΩ
Supply Voltage	9~36V
Working Current	40mA
Output Load	Resistivity: 10kΩ	0~500kΩ
	Capacitance: 20nF	/
Operating Temperature	-40℃~+85℃
Storage Temperature	-55℃~+100℃
Housing Material	Aluminum alloy with matte oxidation
Mounting	Three M4 screws
Waterproof Rating	IP67
Cable	Standard 1.5 meter length, abrasion resistant, oil resistant, wide temperature range, shielded cable 6*0.3mm2
Weight	55g (without box)

Dimension (unit: mm)

Measuring of Axial Direction

Wiring Diagram

1	2	3
Red	Black	White
VCC (power positive)	GND (power negative)	Out X

Application

Tips: MEMS inclinometer sensor voltage output and angle calculation formula

Inclination angle= Sensitivity *(Vout - Voffset)

The current inclination angle

Vout: Sensor output voltage value, unit V

Voffset: Voltage output from the sensor at zero position (usually 2.5V).

Sensitivity: Sensor sensitivity: Inclinometer sensor sensitivity is the ratio of the corresponding voltage change when the sensor tilt angle changes, e.g. if the sensor range is ±90° and the corresponding voltage change is 0-5V, then the sensor sensitivity is 36.

90-(-90)= sensitivity* (5-0)

If the current output voltage is 3.75V, the corresponding inclination is 45 degrees.

45=36*(3.75-2.5)

For example, if the range of the sensor is ±30°, and the corresponding voltage change is 0-5V, then the sensor sensitivity is 12.

30-(-30)= sensitivity* (5-0)

If the current output voltage is 3.75V, the corresponding tilt angle is 15 degrees.

15=12* (3.75-2.5)

Therefore, the sensitivity of the inclinometer sensor corresponds to the range.
