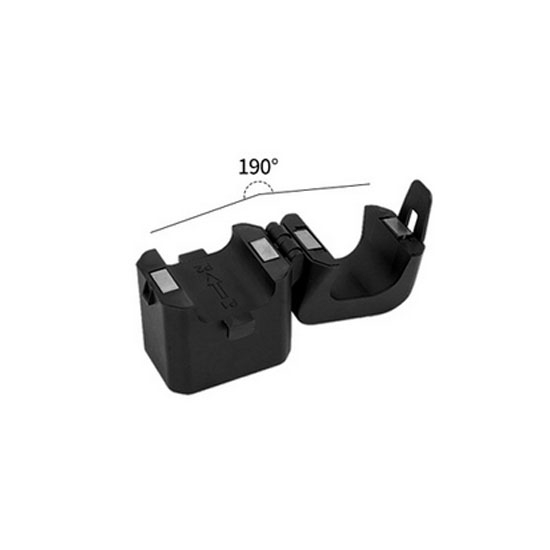

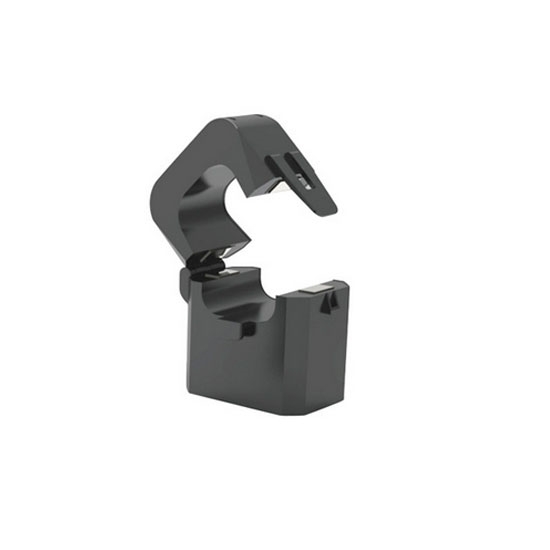

Split Core Current Transformer, 200/5A

0 reviews • Write a review

from

$28.98

Ex Tax: $28.98

Stock: In Stock
Model: RDDLZ-SCT-CTKD-200
Weight: 1.00
SKU: RDDLZ-SCT-CTKD-200

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Affordable 200A split core ct for sale, split core current transformers can be safely and easily installed on existing power lines without disconnecting lines or interrupting service.

Specification

Model: RDDLZ-SCT-CTKD24-200
Current Ratio: 200/5A
Accuracy Class: 1.0
Working Frequency: 50/60Hz
Measuring Range: 10%ln- 130%ln
Rated Output: 0.333V(AC) or 0-500mA
Ratio Difference: ≤±1.0%
Phase Difference: ≤ soil 10 points
Dielectric Strength: 2.5kV/1mA/1min
Insulation Resistance: DC500V/1000mΩ/min
Shell: ABS, Flame retardant grade 94-V0
Skeleton: PBT
Iron Core: Silicon steel
Internal Structure: Buckle
Construction Plan: Cable ties fixed
Operating Temperature: -25°C~75°C
Ambient Humidity: ≤85%
Wiring: 1.5m Red and black wire

200A Split Core Current Transformer Dimension

φ	A	B	C
23	43	73	39

Tips: Why is the secondary winding of the current transformer absolutely not allowed to open circuit?

Because the normal operation of the current transformer, the secondary current has a demagnetizing effect, so that the synthetic magnetic potential is very small. When the secondary winding open circuit, the secondary current demagnetization effect disappears, the primary current will be used to excite all, then, will produce in the secondary side of the flux more than normal value of dozens of times, the result will make the core overheating and damage the transformer.

At the same time, due to the sharp increase of the magnetic flux in the iron core, an overvoltage is generated on the secondary winding, which may reach hundreds or even thousands of volts, which will endanger the safety of people and equipment.
