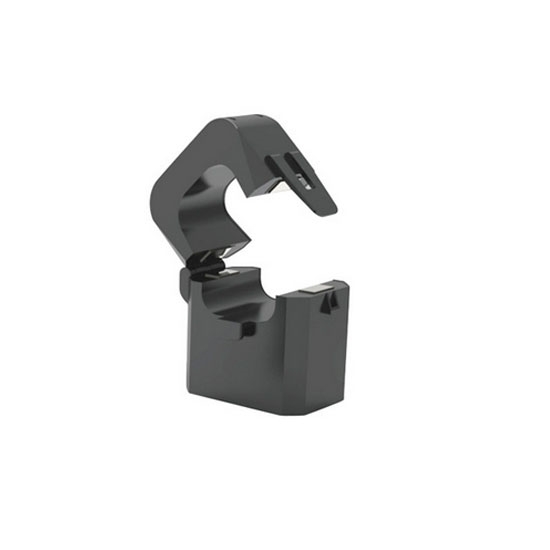

Split Core Current Transformer, 100/5A

0 reviews • Write a review

from

$28.98

Ex Tax: $28.98

Stock: In Stock
Model: RDDLZ-SCT-CTKD-100
Weight: 1.00
SKU: RDDLZ-SCT-CTKD-100

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

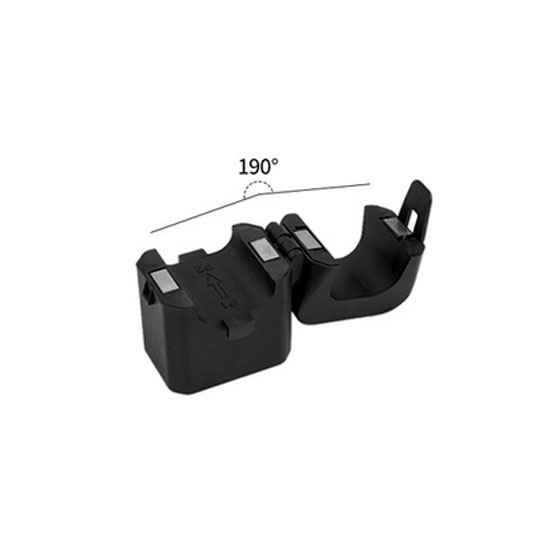

100A Split core current transformers adopt a snap-fit structure, which can be directly fixed on the cable with nylon cable ties, small and light, easy to install, suitable for general use.

Specification

Model: RDDLZ-SCT-CTKD24-100
Current Ratio: 100/5A
Accuracy Class: 1.0
Working Frequency: 50/60Hz
Measuring Range: 10%ln- 130%ln
Rated Output: 0.333V(AC) or 0-500mA
Ratio Difference: ≤±1.0%
Phase Difference: ≤ soil 10 points
Dielectric Strength: 2.5kV/1mA/1min
Insulation Resistance: DC500V/1000mΩ/min
Shell: ABS, Flame retardant grade 94-V0
Skeleton: PBT
Iron Core: Silicon steel
Internal Structure: Buckle
Construction Plan: Cable ties fixed
Operating Temperature: -25°C~75°C
Ambient Humidity: ≤85%
Wiring: 1.5m Red and black wire

100A Split Core Current Transformer Dimension

φ	A	B	C
23	43	73	39

Tips: Advantages of Split core current transformer

Split current transformer is suitable for current measurement, signal sampling and microcomputer protection of electrical equipment in 10KV AC power system. The current transformer has the characteristics of small size, light weight, can be opened, and easy to install. Provide data support. When installing, it is directly stuck on the connected incoming and outgoing cables, which is simple and quick.
