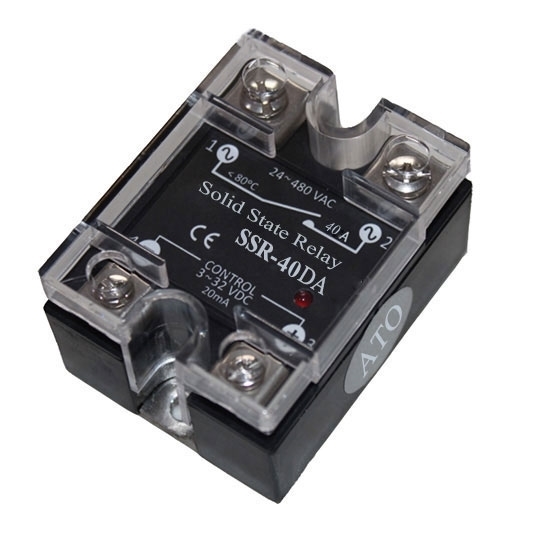

Solid State Relay SSR-40DA, 40A 3-32V DC To AC

0 reviews • Write a review

from

$57.56

Ex Tax: $57.56

Stock: In Stock
Model: RDDLZ-SSR-DH40DA
Weight: 1.00
SKU: RDDLZ-SSR-DH40DA

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

40 amps solid state relay (SSR) features high structural strength, good impact resistance, and strong shock resistance. The SSR offers a reliable switching the commercial and industrial loads, such as computer peripheral interface device, printing machine, molding machine, food machine, packaging machine, and so on.

Built in RC absorption
Photoelectric isolation
SCR output
LED indicator for operation status
Removable protective cover for safety
Panel mount
Zero-crossing switch type

Specification

Model		RDDLZ-SSR-DH40DA
Input	Control voltage range	3-32V DC
	Max. input current	12mA
	Must operate voltage	2.8V DC
	Must release voltage	1.5V DC
Output	Load voltage range	24-480V AC
	Peak voltage	800V AC
	Maximum load current	40A
	Maximum off-state leakage current	2mA
	Maximum off-state time	10mS
	Maximum on-state voltage drop	1.5V
General	Type	DC to AC, single phase
	Dimension L – W – H (mm)	57.4х44.8х28
	Weight	135g
	Dielectric strength (input to output)	4000V
	Dielectric strength (input, output to the base)	2500V
	Operating temperature	-20℃~ 80℃
	Mount	Panel
	Certification	CE

Note:

When the load is a resistive load, the maximum load current of the selected SSR should be 2~3 times greater than the actual load current;
When the load is an inductive load, the maximum load current of the selected SSR should be more than 7~8 times the actual load current.
When the maximum load current is higher than 10A, a heat sink must be installed to the solid state relay, or the SSR relay should be mounted on a metal base plate with heat dissipation effect, and the thermal grease is applied between them.

Dimension (Unit: mm)

Wiring Diagram

Tips: Solid state relay has advantages over EMR relay

Solid state relay (SSR) is a new type of non-contact switch composed of solid state electronic components, and achieve the purpose of connecting and disconnecting circuits without contact and sparking by virtue of those electronic components (such as switching transistors, triacs and other semiconductor components). Therefore, it is also known as non-contact switch.

Compared with the previous Electromechanical Relay (EMR), the SSR has no moving mechanical parts and no mechanical actions during its operation. It has advantages over EMR, such as fast response, high reliability, long life (SSR’s on-off times are a hundred time more than those of average EMR by 106 times), no noises, shock-proof, mechanical shock resistance, good moisture-proof and mildew-proof, anti-corrosion characteristics. These features make SSR widely used in military science, chemical industry as well as various industrial and civil electric control devices.
