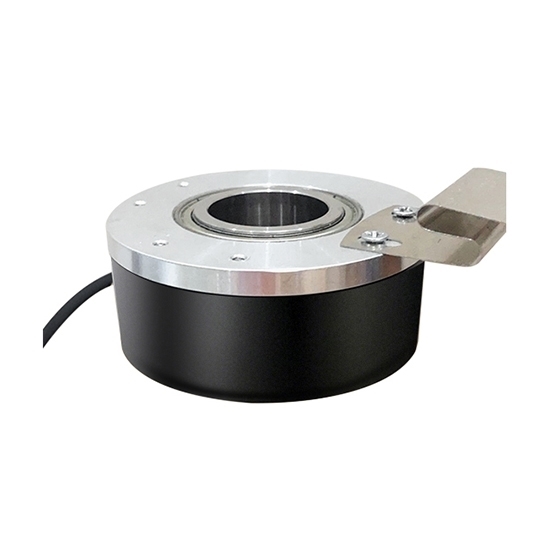

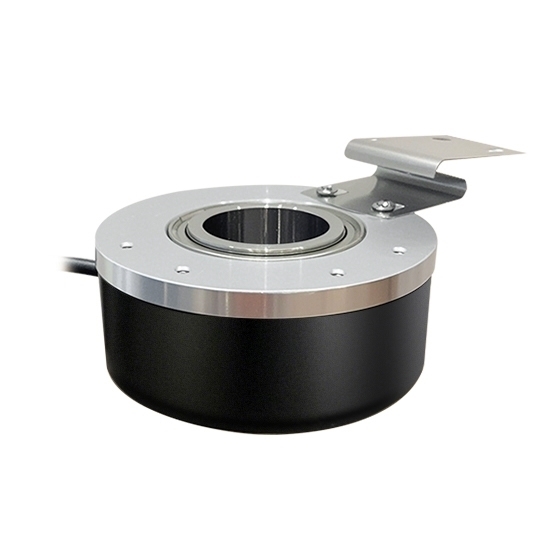

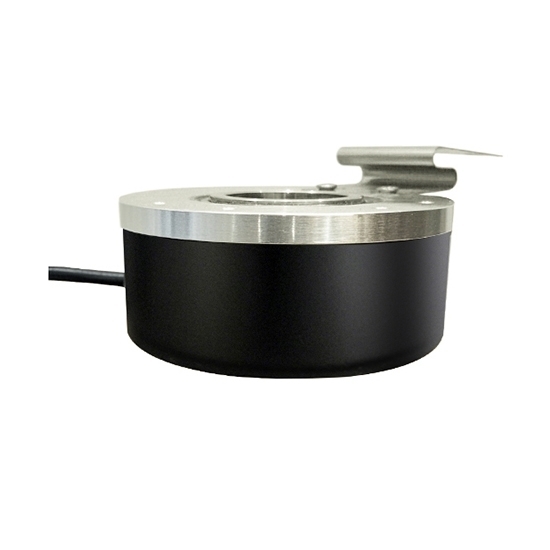

Incremental Rotary Encoder, Hollow Shaft, 4000 Ppr

Incremental Rotary Encoder, Hollow Shaft, 4000 Ppr
Incremental Rotary Encoder, Hollow Shaft, 4000 Ppr
Incremental Rotary Encoder, Hollow Shaft, 4000 Ppr
Incremental Rotary Encoder, Hollow Shaft, 4000 Ppr
Incremental Rotary Encoder, Hollow Shaft, 4000 Ppr
Incremental Rotary Encoder, Hollow Shaft, 4000 Ppr
Incremental Rotary Encoder, Hollow Shaft, 4000 Ppr
0 reviews • Write a review
from
$427.98
Ex Tax: $427.98
  • Stock: In Stock
  • Model: RDDLZ-IRE-4000PH
  • Weight: 1.00
  • SKU: RDDLZ-IRE-4000PH

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Incremental rotary encoders with 4000 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Specification

BasicsModelRDDLZ-K10025G-4000BM
Weight100 g
WiringColorRedBlackGreenWhiteYellowBrownGrayOrange
SignalVccGNDABZA-B-Z-
Mechanical propertiesMaximum shaft speed (r/min)5000
Starting torque<0.03Nm (25℃)
Maximum shaft loadRadial load: 20N, axial load: 10N
Shock resistance50G/11ms
Anti-vibration10G (10~2000Hz)
Rotational inertia4X10-8kgm2
Operating temperature-30~+85℃ (-22~+185℉)
Storage temperature-35~+95℃ (-31~+203℉)
Protection LevelIP51
Electrical characteristicsOutput circuitOpen-collector outputVoltage outputPush-pull outputLine driver output
Supply voltage VccDC 5V±0.2DC 5～24VDC 5V±0.2DC 5～24VDC 5V±0.2DC 5～24VDC5V±0.2DC 5～24V
Current consumption≤60mA≤60mA≤60mA≤100mA
Output high level≥3.5V≥Vcc-2.5V--≥2.5V≥Vcc-2.5V
Output low level≤0.5V≤0.5V--≤0.5V≤1.0V
Rise time Tr≤500ns≤1500ns--≤200ns≤500ns
Fall time Tf≤100ns≤300ns--≤200ns≤200ns
Maximum frequency response0～150kHz0～150kHz0～150kHz0～150kHz0～150kHz0～150kHz


Model Selection

Shaft typeDiameter of shellDiameter of shaftConnection typeCable length *ResolutionProduction identifierZ signalZ signal wavelengthOutput mode *Voltage *
K: Hollow shaft100: 100mm25: 25mmG: Cable edge output1: 1m
2: 2m
3: 3m
4: 4m		4000: 4000 pprBM: Output 1 if receiving Z signalDefault: 1TC: Open-collector NPN
CP: Open-collector PNP
T: Voltage ouput NPN+R
P: Push-pull output NPN+PNP
L: Line driver 26LS31
K: Line driver 7272		5: +5VDC
830: +8~30VDC

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Features

  • The encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
  • The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
  • Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
  • Compact and lightweight, suitable for automation equipment with limited installation space.
  • Modular design, easy installation, fast and efficient commissioning.

Dimension (unit: mm)

Application

Tips: The advantages of rotary encoder

  1. Informatization: In addition to positioning, the control room can also know the specific location of encoder.
  2. Flexibility: Positioning can be adjusted flexibly in the control room.
  3. Installation advantage: using a rotary encoder with fist size, can measure from a few μ to tens, a few hundred meters interval, any number of stations. As long as solve the problem of safe installation for the rotary encoder, can avoid many troubles caused by the proximity switches, photoelectric switches in the field of mechanical installation, as well as problems such as being easily crashed and subjected to high temperature and water vapor. Since it is a photoelectric encoder, and there is no mechanical loss, therefore its service life is often very long provided the installation location is correct.
  4. Versatility: In addition to positioning, it can also load the current location from far away and converting speed, which is particularly important for the inverter, stepper motors and other applications.
  5. Economic: The cost for a rotary encoder is enough for getting multiple control stations, the more important thing is that the installation and maintenance fees are low as well, while the service life is increased, and its economy has gradually become apparent.
