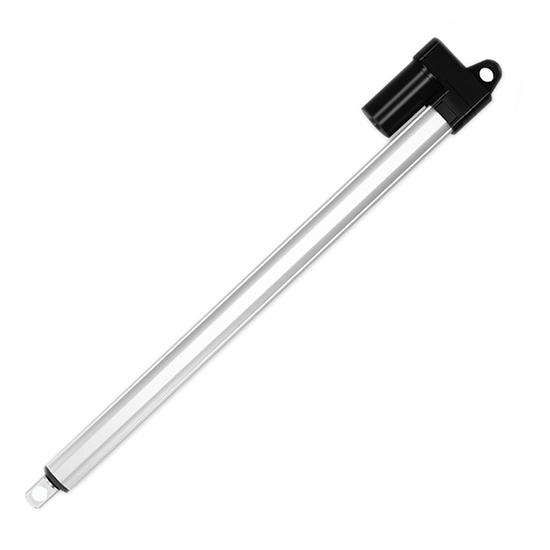

Solar Tracker Linear Actuator, 12V/24V, 20000N, 250mm Stroke

0 reviews • Write a review

from

$1,058.14

Ex Tax: $1,058.14

Stock: In Stock
Model: RDDLZ-LACTU-20000
Weight: 1.00
SKU: RDDLZ-LACTU-20000

Available Options

Short Description

Voltage

Load Capacity

Stroke

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Powerful linear actuator for solar trcking system, max. load capacity is 20000N, DC 12 volt, 24 volt, 36 volt, 48 volt are available, it has self-lock function, easy installation, strong stability, free maintenance and low power consumption.

Parameter List

Model		RDDLZ-U10
Voltage		12V DC, 24V DC, 36V DC, 48V DC (Optional)
Max. Load		20000N
Max. Static Load		40000N
No-Load Speed		2.8mm/s
Full-Load Speed		2mm/s
Rated Speed		1800RPM
Stroke		50/ 100/ 150/ 200/ 250/ 300/ 350/ 400/ 450mm (Optional, can be customized)
Continuous Current		8A
Duty Cycle		10%
IP Grade		IP65
Ambient Temperature		-25℃ ~ +65℃
Position Feedback		Hall sensor
Noise		<60db
Front-Rear End Dimension		Hole Φ30mm
Installation Dimension		Stroke + 310mm
Connector		Tinned leads
Length of Cable		1m
Weight		15kg
Applications		Solar PV industry such as solar tracker, and heavy load industry application

Load and Speed Selection

(Note: The current at 12V is as roughly 2 times as that at 24V)

Code	Rated Load (N)		Rated Current (A)	Rated Speed (mm/s)
Code	Push	Pull	Rated Current (A)	No Load (24V DC)	Full Load (24V DC)
A	20000	20000	7	2.8	2
B	15000	15000	6	4.2	2.5
C	12000	12000	5	4.6	2.8
D	10000	10000	5	10	6

Stroke and Size Selection

Stroke±3 (mm), Mounting Dimension±3 (mm)
Stroke	50	100	150	200	250	300	350	400	450
Size	360	410	460	510	560	610	660	710	760

Standard Dimension (mm)
